Application

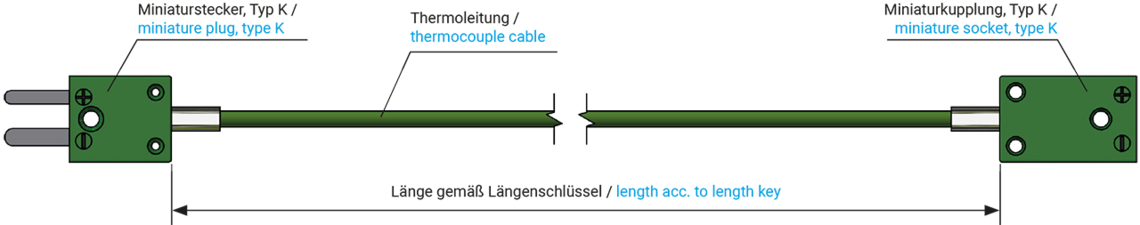

This 1-channel thermocouple extension cable for type K with miniature plug/miniature socket is designed and tested for use in cable tracks. Stranded conductors make the cable flexible for forced-guided or hand-held applications for transmitting thermoelectric voltage. The robust PUR sheath is oilresistant and abrasionresistant.
Outstanding features
- easy handling and quick installation
- mechanically robust and durable
- suitable for cable tracks
- variable cable lengths
Cable Data
| Connection cable | thermocouple cable 2 x 0,25 mm² |
|---|---|
| Isolation | TPE |
| Outer sheath | PUR |
| Diameter | 3,6 mm |
| Temperature range | -25°C/+90°C |
Connection cable
thermocouple cable 2 x 0,25 mm²
Isolation
TPE
Outer sheath
PUR
Diameter
3,6 mm
Temperature range
-25°C/+90°C
Connector
| Side 1 | miniature plug (screwable) |
|---|---|
| Side 2 | miniature socket (screwable) |
Side 1
miniature plug (screwable)
Side 2
miniature socket (screwable)
Dimensions
| item no. | Type | Cable length | |
|---|---|---|---|
| S0442-4012-00100 | type K | 1000 m | Send inquiry |
| S0442-4012-00300 | type K | 3000 m | Send inquiry |
| S0442-4012-00500 | type K | 5000 m | Send inquiry |
| S0442-4012-00700 | type K | 7000 m | Send inquiry |
item no.
Type
Cable length
Other dimensions and colours are possible on request.
