B 110 C AC Sense Cable

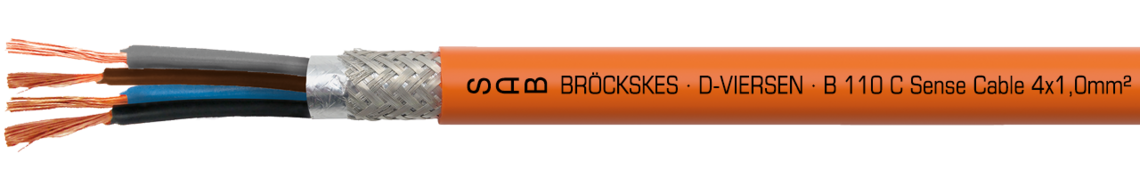

halogen-free Besilen® AC Sense cable, shielded, cULus recognized
SAB BRÖCKSKES · D-VIERSEN · B 110 C Sense Cable 4x1,0mm² 0110-9020 cULus AWM Style 4659 AWM I/II A/B 150°C 3000V FT1 FT2
Application
The B 110 C AC Sense Cable is perfectly suited for test bench and test system construction. The AC sense cable have been extended with one or three neutral conductors, enabling the simultaneous measurement of all three phases, for example. It is also available as a pre-assembled solution with power connectors.
Outstanding features
- extremely flexible
- good EMC characteristics
- halogen-free
- heat resistant
- flexible at low temperatures
- flame retardant and self-extinguishing
- weather resistant
- cULus recognized
- PFAS free
Additional information
Possible on request:
As harnessed cable acc. to customer’s specification
Construction
| Conductor | bare copper strands, extra fine wires |
|---|---|
| Core Insulation | Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1 |
| Colour code | 4 x 1,00 mm: L1 brown, L2 balck, L3 grey, N blue
6 x 1,00 mm: L1 brown, L2 balck, L3 grey, 3 x N blue |
| Stranding | together |
| Screen | alu foil, tinned copper drain wire and tinned copper braiding |
| Sheath material | Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1 |
| Sheath colour | orange (similar RAL 2004) |
bare copper strands, extra fine wires
Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1
4 x 1,00 mm:
L1 brown, L2 balck, L3 grey, N blue
6 x 1,00 mm:
L1 brown, L2 balck, L3 grey, 3 x N blue
together
alu foil, tinned copper drain wire and tinned copper braiding
Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1
orange (similar RAL 2004)
Technical data
| Nominal voltage | Uo/U 1,8/3,0 kV AC Uo/U 2,7/5,4 kV DC |
|---|---|
| Voltage cULus | 3000 V |
| Testing voltage | 7000 V |
| Current-carrying capacity | acc. to VDE 0298-4 |
| Min. bending radius | fixed laying: 6 x d flexible application: 10 x d |
| Temperature range | DIN VDE cULus: up to +150 °C fixed laying: -40 °C / +180 °C flexible application: -25 °C / +180 °C short time use: +250 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, cULus FT1, FT2 |
| Corrosiveness of conflagration gases | IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases |
| Weather resistance | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 1,8/3,0 kV AC
Uo/U 2,7/5,4 kV DC
3000 V
7000 V
acc. to VDE 0298-4
fixed laying: 6 x d
flexible application: 10 x d
DIN VDE
cULus: up to +150 °C
fixed laying: -40 °C / +180 °C
flexible application: -25 °C / +180 °C
short time use: +250 °C
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, cULus FT1, FT2
IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
very good
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section | max. core-ø | Approx. outer-ø | max. outer-ø | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C max. | |
|---|---|---|---|---|---|---|---|---|
| L0110-9020 | 4 x 1,00 mm² | 1,50 mm | 13,9 mm | 14,6 mm | 101,4 kg/km | 225 kg/km | 20,0 Ω/km | Send inquiry |
| L0110-9019 | 6 x 1,00 mm² | 1,50 mm | 16,8 mm | 17,6 mm | 160,0 kg/km | 337 kg/km | 20,0 Ω/km | Send inquiry |
cross section
at 20°C max.
Other dimensions and colours are possible on request.
