B 110 C Sense + Power Cable

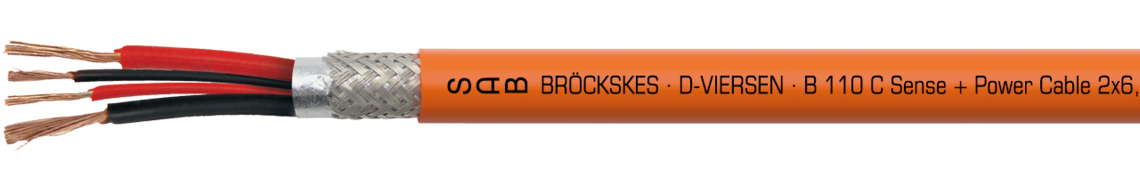

halogen-free Besilen® Sense cable with power supply, shielded, cULus recognized
SAB BRÖCKSKES · D-VIERSEN · B 110 C Sense + Power Cable 2x6,0mm²+2x1,0mm² 0110-9018 cUus AWM Style 4659 AWM I/II A/B 150°C 3000V FT1 FT2
Application
The B 110 C Sense + Power Cable is perfectly suited for test bench and test system construction. The sense cable have been enhanced with two 6.00 mm² power conductors (red and black), combining sense and power functionality in a single cable. It is also available as a pre-assembled solution with power connectors.
Outstanding features
- extremely flexible
- with power supply
- good EMC characteristics
- halogen-free
- heat resistant
- flexible at low temperatures
- flame retardant and self-extinguishing
- weather resistant
- cULus recognized
- PFAS free
Additional information
Possible on request:
As harnessed cable acc. to customer’s specification
Construction
| Conductor | bare copper strands, extra fine wires |
|---|---|
| Core Insulation | Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1 |
| Colour code | each black and red |
| Stranding | in layers |
| Screen | alu foil, tinned copper drain wire and tinned copper braiding |
| Sheath material | Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1 |
| Sheath colour | orange (similar RAL 2004) |
bare copper strands, extra fine wires
Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1
each black and red
in layers
alu foil, tinned copper drain wire and tinned copper braiding
Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1
orange (similar RAL 2004)
Technical data
| Nominal voltage | Uo/U 1,8/3,0 kV AC Uo/U 2,7/5,4 kV DC |
|---|---|
| Voltage cULus | 3000V |
| Testing voltage | 7000V |
| Current-carrying capacity | acc. to VDE 0298-4 |
| Min. bending radius | fixed laying: 6 x d flexible application: 10 x d |
| Temperature range | DIN VDE cULus: up to +150 °C fixed laying: -40 °C / +180 °C flexible application: -25 °C / +180 °C short time use: +250 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, cULus FT1, FT2 |
| Corrosiveness of conflagration gases | IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases |
| Weather resistance | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 1,8/3,0 kV AC
Uo/U 2,7/5,4 kV DC
3000V
7000V
acc. to VDE 0298-4
fixed laying: 6 x d
flexible application: 10 x d
DIN VDE
cULus: up to +150 °C
fixed laying: -40 °C / +180 °C
flexible application: -25 °C / +180 °C
short time use: +250 °C
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, cULus FT1, FT2
IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
very good
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section | max. core-ø | Approx. outer-ø | max. outer-ø | Copper figure | Cable weight ≈ |
Ohmic resistance max. Ω/km | |
|---|---|---|---|---|---|---|---|---|
| L0110-9018 | 2 x 6,00 mm² + 2 x 1,00 mm² | 3,5 mm / 1,5 mm | 16,5 mm | 17,1 mm | 236,0 kg/km | 386 kg/km | 3,30 / 20,0 | Send inquiry |
cross section
max. Ω/km
Other dimensions and colours are possible on request.
