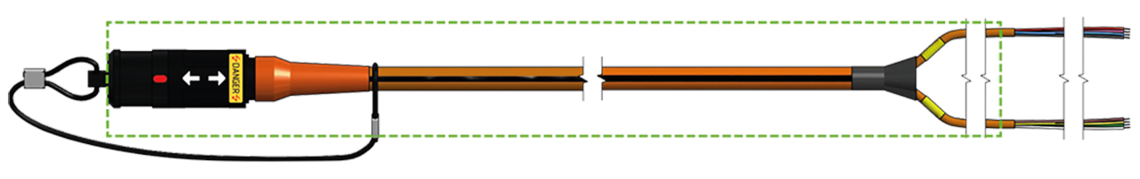

HV 2-channel analogue measuring cable for CSM measurement technology (90 V)
Application
Safe HV analogue measurements with standard sensors combined with CSM measuring modules HV AD2 IF20, HV AD4 IF20 & HV AD4 IF1000
Additional information
Issue of HV test certificate with reference to batch number due to optimum traceability.
Optional: Test and repair of already used sensors on request.
SAB identification: item number, batch number
Cable data
| Connection cable | HV measuring cable |
|---|---|
| Core insulation | FEP – acc. to DIN 47100 1-8 |
| Pair sheath | FEP – orange acc. to RAL 2004 |
| Inner sheath | PUR – blue acc. to RAL 5024 |
| Outer sheath | PUR |
| Sheath colour | orange with black vertical stripes |
| Stranding | optimised in layers |
| Outer diameter | approx. 7,3 mm |
| Dielectric strength | 1000 V AC over orange bundle sheath |
| Temperature range | fixed laying: -50°C / +150°C flexible application: -40°C / +150°C |
HV measuring cable
FEP – acc. to DIN 47100 1-8
FEP – orange acc. to RAL 2004
PUR – blue acc. to RAL 5024
PUR
orange with black vertical stripes
optimised in layers
approx. 7,3 mm
1000 V AC over orange bundle sheath
fixed laying: -50°C / +150°C
flexible application: -40°C / +150°C
Connection end
| Outer sheath | 100 mm |
|---|---|
| Pair sheath | 10 mm |
| Open end | 2 mm |
| Connection | tinned |
100 mm
10 mm
2 mm
tinned
Connector
| Lemo Redel male connector | with orange kink protection sleeve and black protecting cap, 8-pin, C-coded 1000 V AC voltage-stable – IP 67 when connected |
|---|
with orange kink protection sleeve and black protecting cap, 8-pin, C-coded
1000 V AC voltage-stable – IP 67 when connected
Tests
| Cable test | core/core – 600 V AC - 1 min - acc. to IEC 60584-1 over orange bundle sheath in water bath – 5000 V AC – 5 min – with reference to EN 50264-2-1 |
|---|---|
| Product test | Routine test of harnessed connector with reference to standard 61010-1 for measuring devices as well as VDE indications in our in-house ball bath (released by VDE). Control of contact protection towards outside – 3000 V/1 min AC |
core/core – 600 V AC - 1 min - acc. to IEC 60584-1 over orange bundle sheath in water bath –
5000 V AC – 5 min – with reference to EN 50264-2-1
Routine test of harnessed connector with reference to standard 61010-1 for measuring devices as well as VDE indications in our in-house ball bath (released by VDE).
Control of contact protection towards outside – 3000 V/1 min AC
Configuration examples
| item no. | Connection cable length | Length sheath | Length pair | Length core | |
|---|---|---|---|---|---|
| T641-056-710 | 2000 mm | 100 mm | 10 mm | 2 mm | Send inquiry |
| T641-056-711 | 3000 mm | 100 mm | 10 mm | 2 mm | Send inquiry |
Total cable and channel lengths can be realised on customer’s request.
