T221
Temperature sensor with connection cable

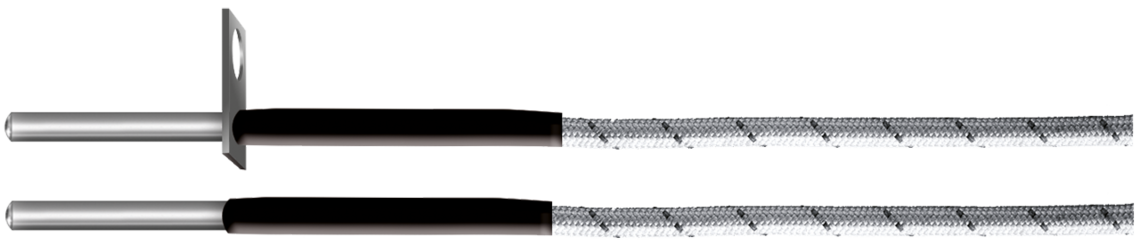

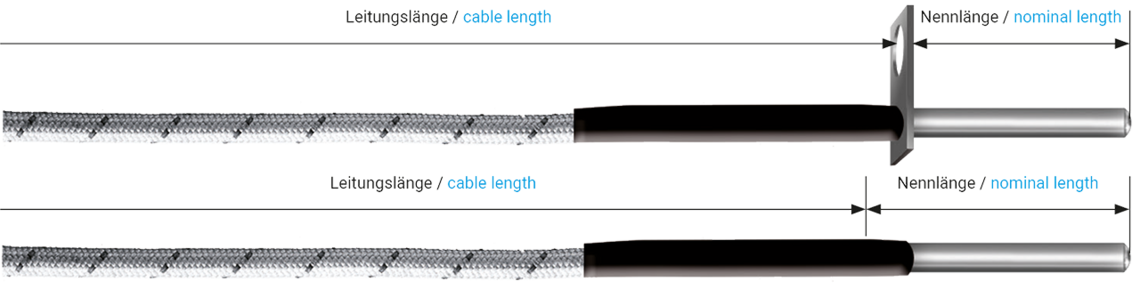

Temperature sensor with connection cable and welded measuring tip, optionally with mounting plate
Application
The temperature sensor with connection cable is designed for reliable temperature measurements in industrial applications and is particularly suitable for measuring tasks with increased requirements for robustness and flexibility. Depending on the application, the temperature sensor can be equipped with type K, J, or L thermocouples in accordance with DIN standards; other thermocouples are available on request.
The welded measuring tip (form B) ensures a fast response time and reproducible measurement results. A temperature-resistant connection cable made of wire/glass silk/glass silk is designed for continuous temperatures up to +400 °C and is available in various lengths. The thermocouple sensor is optionally available with a mounting plate 8 × 15 mm with a Ø 5 mm hole, enabling secure installation. Thanks to kink protection with heat-shrink tubing and a wide range of configuration options, the thermocouple sensor can be optimally adapted to individual applications.
Outstanding features
- Precise temperature measurement with thermocouple type K, J, or L
- Welded measuring tip (form B) for stable and fast readings
- Temperature-resistant connection cable up to +400 °C
- Optionally available with mounting plate 8 × 15 mm, hole Ø 5 mm
- Various connection lengths and cable ends available
- Kink protection with heat shrink tubing for increased mechanical resilience
- Customized designs of thermocouple, length, and connection possible
Additional information
- with mounting plate 8 x 15 mm, hole Ø 5 mm
Construction
| Connection cable | TH DRR 0,50 mmØ Construction: wire/fiber glass/fiber glass Temperature resistant up to +400°C |
|---|---|
| Thermocouple | - 1 x type L - 1 x type J - 1 x type K - other thermocouples - acc. to customer's request type L acc. to DIN 43710 type J and K acc. to DIN EN 60584 |
| Sleeve-Ø | 3,5 mm |
| Type of cable ends | - bare ends - cable lugs M4 - end sleeve - other cable ends - acc. to customer's request |
| Connection cable | - 1,0 m - 1,5 m - 2,0 m - 2,5 m - 3,0 m - 4,0 m - 5,0 m - 10,0 m - other cable length - acc. to customer's request |
| Type of measuring tip | - Form B, welded measuring tip - other measuring tip - acc. to customer's request |
| Kink protection | kink protection with shrinkable sleeve |
| Nominal length | - 30 mm - other nominal length - acc. to customer's request |
TH DRR 0,50 mmØ
Construction: wire/fiber glass/fiber glass
Temperature resistant up to +400°C
- 1 x type L
- 1 x type J
- 1 x type K
- other thermocouples - acc. to customer's request
type L acc. to DIN 43710
type J and K acc. to DIN EN 60584
3,5 mm
- bare ends
- cable lugs M4
- end sleeve
- other cable ends - acc. to customer's request
- 1,0 m
- 1,5 m
- 2,0 m
- 2,5 m
- 3,0 m
- 4,0 m
- 5,0 m
- 10,0 m
- other cable length - acc. to customer's request
- Form B, welded measuring tip
- other measuring tip - acc. to customer's request
kink protection with shrinkable sleeve
- 30 mm
- other nominal length - acc. to customer's request
