T221-228

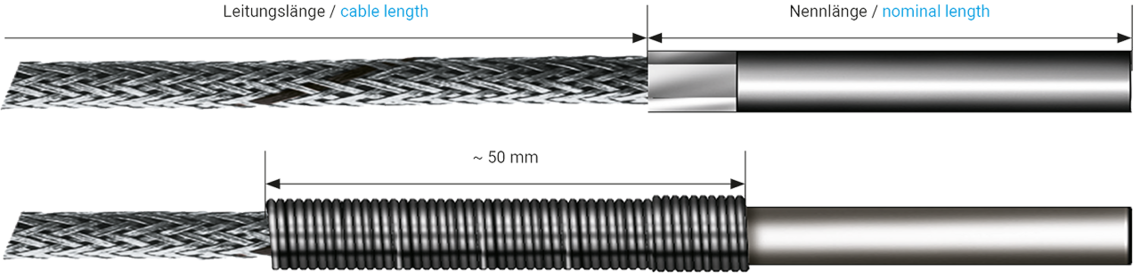

Temperature sensor with connection cable
Temperature sensor with connection cable
Application
The temperature sensor or temperature probe Type K, J or L with connection cable and kink protection is designed for reliable temperature measurement in industrial applications exposed to mechanical and thermal stress. Depending on the application, single or dual thermocouples of type K, J or L can be selected in accordance with DIN EN 60584 or DIN 43710.
The robust connection cables are available in various constructions with temperature resistance up to +250 °C or +400 °C, ensuring safe signal transmission even under harsh operating conditions. To protect the transition between sensor and cable, different kink protection options such as a kink protection spring, fiberglass sleeve or shrinkable sleeve are available.
The temperature sensor can be configured individually with regard to measuring tip design (insulated or welded), sleeve diameter, nominal length, cable length and cable end termination. Optionally, a version with mounting plate 8 × 15 mm and hole Ø 5 mm is available for easy and secure installation.
Outstanding features
- Wide range of applications thanks to thermocouple types K J or L according to DIN EN 60584 and DIN 43710
- Mechanical protection of the connection cable by kink protection spring, fiberglass sleeve or shrinkable sleeve
- High temperature resistance of the connection cables up to +250 °C or +400 °C depending on design
- Flexible configuration options for measuring tip (insulated or welded), sleeve diameter, cable length and connection ends
- Optional mounting version with mounting plate 8 × 15 mm and hole Ø 5 mm for easy installation
Additional information
- bent type also available!
- with plate 8 x 15 mm, hole Ø 5 mm
- smaller diameters on request!
Construction
| Connection cable | - TH 22 LRV 0,22 mm² - strand/fiber glass/fiber glass/stainless steel wire armouring - temperature resistant up to + 400°C
- TH LTV 0,22 mm² - strand/PFA/fiber glass/stainless steel wire armouring - temperature resistant up to +250°C
- TH DRR 0,50 mmØ - wire/fiber glass/fiber glass - temperature resistant up to +400°C
- TH 22 LTT 0,22 mm² - strand/PFA/PFA - temperature resistant up to +250°C |
|---|---|
| Thermocouple | The following thermocouple types can be selected depending on the application: - 1 x type L - 2 x type L - 1 x type J - 2 x type J - 1 x type K - 2 x type K - other thermocouples - acc. to customer's request type L acc. to DIN 43710 type J and K acc. to DIN EN 60584 |
| Sleeve-Ø | - 3,5 mm - 4,0 mm - 5,0 mm - 6,0 mm - 7,0 mm - 8,0 mm - other construction - acc. to customer's request |
| Type of cable ends | - bare ends - cable lugs M4 - end sleeve - other cable ends - acc. to customer's request |
| Connection cable | - 1,0 m - 1,5 m - 2,0 m - 2,5 m - 3,0 m - 4,0 m - 5,0 m - 10,0 m - other cable length - acc. to customer's request |
| Type of measuring tip | - Form A, insulated measuring tip - Form B, welded measuring tip |
| Kink protection | - with kink protection - with fiber glass tube - with heat shrinkable sleeve |
| Nominal length | According to customer requests. Please specify in mm. |
- TH 22 LRV 0,22 mm²
- strand/fiber glass/fiber glass/stainless steel wire armouring
- temperature resistant up to + 400°C
- TH LTV 0,22 mm²
- strand/PFA/fiber glass/stainless steel wire armouring
- temperature resistant up to +250°C
- TH DRR 0,50 mmØ
- wire/fiber glass/fiber glass
- temperature resistant up to +400°C
- TH 22 LTT 0,22 mm²
- strand/PFA/PFA
- temperature resistant up to +250°C
The following thermocouple types can be selected depending on the application:
- 1 x type L
- 2 x type L
- 1 x type J
- 2 x type J
- 1 x type K
- 2 x type K
- other thermocouples - acc. to customer's request
type L acc. to DIN 43710
type J and K acc. to DIN EN 60584
- 3,5 mm
- 4,0 mm
- 5,0 mm
- 6,0 mm
- 7,0 mm
- 8,0 mm
- other construction - acc. to customer's request
- bare ends
- cable lugs M4
- end sleeve
- other cable ends - acc. to customer's request
- 1,0 m
- 1,5 m
- 2,0 m
- 2,5 m
- 3,0 m
- 4,0 m
- 5,0 m
- 10,0 m
- other cable length - acc. to customer's request
- Form A, insulated measuring tip
- Form B, welded measuring tip
- with kink protection
- with fiber glass tube
- with heat shrinkable sleeve
According to customer requests. Please specify in mm.
