T260

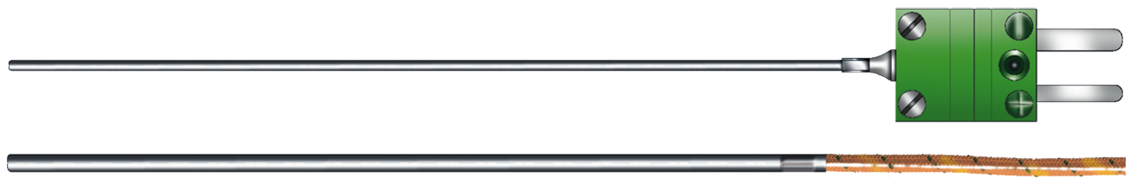

Plug-in thermocouple with connection cable

Plug-in thermocouple with connection cable

Plug-in thermocouple with connection cable

Application

Additional information

  • High temperature sensor!



Construction

Connection cable

- THEL 0,22 mm²

- strand/fiber glass/fiber glass/Pi foil

- temperature resistant up to +400°C



- THEL 0,20mmØ

- wire/Pi foil/Pi foil/bare wire (+ leg)

- temperature resistant up to +400°C

Thermocouple

- 1 x type L

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer's request

type L acc. to DIN 43710

type J and K acc. to DIN EN 60584

­­Sleeve-Ø

- 1,5 mm (only possible with THEL 0,20 mmØ)

- 3,0 mm

Type of cable ends

- bare ends

- cable lugs M4

- end sleeve

- miniature plug

- miniature sockets

- other cable ends - acc. to customer's request

Connection cable

- 1,0 m

- 1,5 m

- 2,0 m

- 2,5 m

- 3,0 m

- 4,0 m

- 5,0 m

- 10,0 m

- other cable length - acc. to customer's request

Type of measuring tip

- Form A, insulated measuring tip

- Form B, welded measuring tip

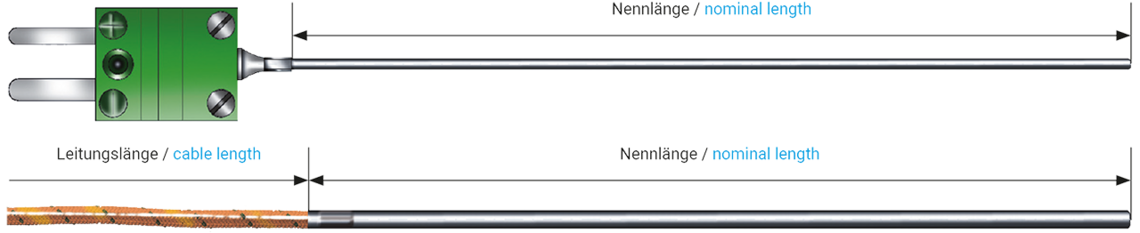

Nominal Length

According to customer requests. Please specify in mm.

Connection cable

- THEL 0,22 mm²

- strand/fiber glass/fiber glass/Pi foil

- temperature resistant up to +400°C



- THEL 0,20mmØ

- wire/Pi foil/Pi foil/bare wire (+ leg)

- temperature resistant up to +400°C

Thermocouple

- 1 x type L

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer's request

type L acc. to DIN 43710

type J and K acc. to DIN EN 60584

­­Sleeve-Ø

- 1,5 mm (only possible with THEL 0,20 mmØ)

- 3,0 mm

Type of cable ends

- bare ends

- cable lugs M4

- end sleeve

- miniature plug

- miniature sockets

- other cable ends - acc. to customer's request

Connection cable

- 1,0 m

- 1,5 m

- 2,0 m

- 2,5 m

- 3,0 m

- 4,0 m

- 5,0 m

- 10,0 m

- other cable length - acc. to customer's request

Type of measuring tip

- Form A, insulated measuring tip

- Form B, welded measuring tip

Nominal Length

According to customer requests. Please specify in mm.
