T521

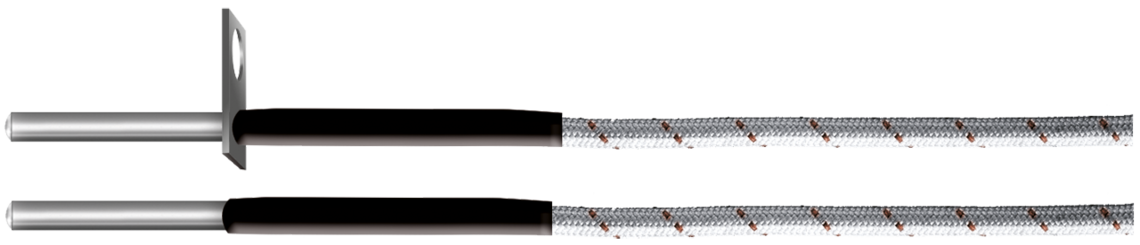

Resistance sensor with connection cable
Pt100 Resistance sensor with connection cable and kink protection with shrinkable sleeve
Application
Pt100 resistance sensors with connection cable and kink protection with shrinkable sleeve are designed for precise temperature measurements in industrial applications. They are available with 1 x Pt100 Class A/B or 2 x Pt100 and can be customized according to customer requirements, including nominal length, sleeve diameter, and connection cable length.
The temperature-resistant connection cables (RRL 0.22 mm², strand/fiber glass/fiber glass) withstand up to +400°C and ensure reliable, long-term measurements under demanding conditions. Optional: a version with mounting plate 8 x 15 mm, hole Ø 5 mm is available for easy and secure installation. Connection ends can be selected as bare ends, cable lugs M4, end sleeves, or other options upon request.
Thanks to the kink protection with shrinkable sleeve, these resistance sensors are particularly robust and protect the connection cable from mechanical stress. They are ideal for machines, test benches, and industrial systems where precise and reproducible temperature measurements are required.
Outstanding features
- Accurate temperature measurement with 1 x or 2 x Pt100 (Class A/B)
- Temperature-resistant connection cable (up to +400°C)
- Robust kink protection with shrinkable sleeve for mechanical protection
- Optional mounting plate 8 x 15 mm, hole Ø 5 mm for secure installation
- Flexible customization: nominal length, sleeve diameter, cable length, connection ends
Additional information
- with mounting plate 8 x 15 mm, hole Ø 5 mm
Construction
| Connection cable | RRL 0,22 mm² Construction: Strand/Fiber glass/Fiber glass Temperature resistant up to +400°C |
|---|---|
| RTD | - 1 x Pt 100 class A - 1 x Pt 100 class B - other RTDs acc. to customer's request
Pt100 acc. to DIN EN 60751 |
| Connection type of inner wires | - 2-wire circuit - other connection type acc. to customer's request |
| Sleeve-Ø | 3,5 mm |
| Type of cable ends | - bare ends - cable lugs M4 - end sleeve - other cable ends acc. to customer's request |
| Connection cable | - 1,0 m - 1,5 m - 2,0 m - 2,5 m - 3,0 m - 4,0 m - 5,0 m - 10,0 m - other cable length acc. to customer's request |
| Kink protection | kink protection with shrinkable sleeve |
| Nominal length | - 30 mm - other nominal length acc. to customer's request |
RRL 0,22 mm²
Construction: Strand/Fiber glass/Fiber glass
Temperature resistant up to +400°C
- 1 x Pt 100 class A
- 1 x Pt 100 class B
- other RTDs acc. to customer's request
Pt100 acc. to DIN EN 60751
- 2-wire circuit
- other connection type acc. to customer's request
3,5 mm
- bare ends
- cable lugs M4
- end sleeve
- other cable ends acc. to customer's request
- 1,0 m
- 1,5 m
- 2,0 m
- 2,5 m
- 3,0 m
- 4,0 m
- 5,0 m
- 10,0 m
- other cable length acc. to customer's request
kink protection with shrinkable sleeve
- 30 mm
- other nominal length acc. to customer's request
