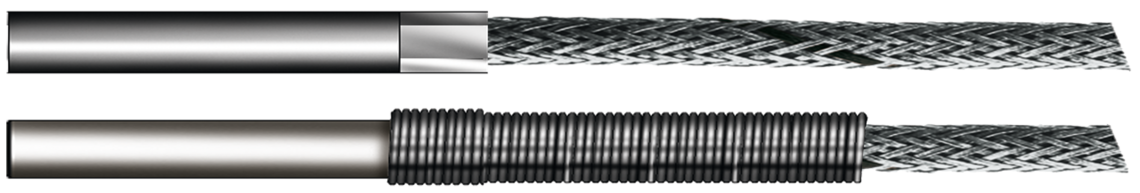

Resistance sensor with connection cable
Resistance sensor with connection cable and kink protection spring
Application
Pt100 resistance sensors with connection cable and kink protection spring are designed for precise and reliable temperature measurement in industrial applications. They are available with 1 x Pt100 or 2 x Pt100 elements and can be customized with different sheath diameters, lengths, and connection ends according to your requirements.
The connection cables are temperature-resistant, with options up to +400°C depending on the type (e.g., RRL-VA or RRL), and provide mechanical protection through metal braiding or insulation. Optional features include strain relief with kink protection spring, glass silk sleeves, or heat-shrink tubing to ensure safe installation and long-term stability.
These Pt100 resistance sensors are suitable for diverse applications in machinery, engine test benches, and industrial equipment where precise temperature monitoring is critical. Custom configurations and bent versions are available on request.
Outstanding features
- Precise temperature measurement with 1 x or 2 x Pt100 sensors for reproducible results
- Robust and temperature-resistant connection cables up to +400°C
- Flexible installation with customizable sheath diameter, probe length, and connection ends
- Reliable mechanical protection via kink protection spring, glass silk sleeve, or heat-shrink tubing
- Suitable for bent or standard versions, adaptable to individual industrial applications
Additional information
- bent type also available!
- with plate 8 x 15 mm, hole Ø 5 mm
- smaller diameters on request!
Construction
| RTD | - 1 x Pt 100 class A - 2 x Pt 100 class A - 1 x Pt 100 class B - 2 x Pt 100 class B Pt 100 acc. to DIN EN 60751 |
|---|---|
| Connection type of inner wires | - 2-wire circuit - 3-wire circuit - 4-wire circuit |
| Sleeve-Ø | - 3,5 mm - 4,0 mm - 5,0 mm - 6,0 mm - 7,0 mm - 8,0 mm - other construction - acc. to customer's request |
| Type of cable ends | - bare ends - cable lugs M4 - end sleeve - other cable ends - acc. to customer's request |
| Connection cable lenght | - 1,0 m - 1,5 m - 2,0 m - 2,5 m - 3,0 m - 4,0 m - 5,0 m - 10,0 , - other cable length acc. to customer's request |
| Kink protection | - with kink protection - with fiber glass tube - with heat shrinkable sleeve |

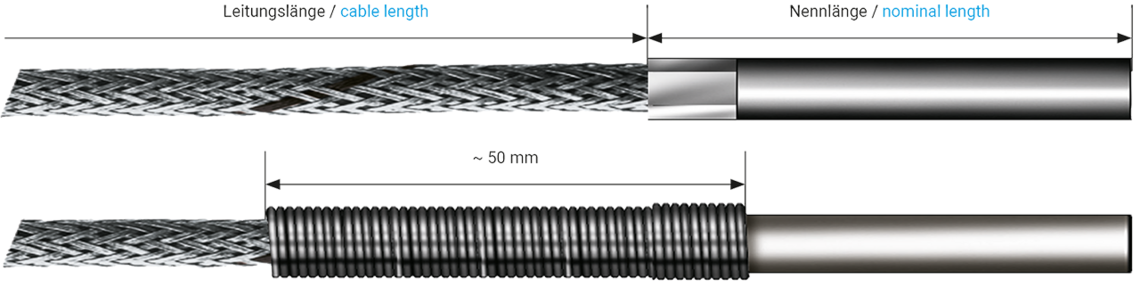

| Nominal length | According to customer requests. Please specify in mm. |
| Connection cable | 1. Connection Cable TGV (0,18 mm²) Construction: Strand/PFA/Fiber glass/Stainless steel wire armouring Temperature resistant up to +250°C
2. Connection Cable TTL (0,18 mm²) Construction: Strand/PFA/PFA Temperature resistant up to +250°C
3. Connection Cable RRL (0,22 mm²) Construction: Strand/Fiber glass/Fiber glass Temperature resistant up to +400°C
4. Connection Cable RRL-VA (0,22 mm²) Construction: Strand/Fiber glass/Fiber glass/Stainless steel wire armouring Temperature resistant up to +400°C
5. Connection Cable LiYY (0,25 mm²) Construction: Strand/PVC/PVC Ttemperature resistant up to +70°C |
- 1 x Pt 100 class A
- 2 x Pt 100 class A
- 1 x Pt 100 class B
- 2 x Pt 100 class B
Pt 100 acc. to DIN EN 60751
- 2-wire circuit
- 3-wire circuit
- 4-wire circuit
- 3,5 mm
- 4,0 mm
- 5,0 mm
- 6,0 mm
- 7,0 mm
- 8,0 mm
- other construction - acc. to customer's request
- bare ends
- cable lugs M4
- end sleeve
- other cable ends - acc. to customer's request
- 1,0 m
- 1,5 m
- 2,0 m
- 2,5 m
- 3,0 m
- 4,0 m
- 5,0 m
- 10,0 ,
- other cable length acc. to customer's request
- with kink protection
- with fiber glass tube
- with heat shrinkable sleeve
According to customer requests. Please specify in mm.
1. Connection Cable TGV (0,18 mm²)
Construction: Strand/PFA/Fiber glass/Stainless steel wire armouring
Temperature resistant up to +250°C
2. Connection Cable TTL (0,18 mm²)
Construction: Strand/PFA/PFA
Temperature resistant up to +250°C
3. Connection Cable RRL (0,22 mm²)
Construction: Strand/Fiber glass/Fiber glass
Temperature resistant up to +400°C
4. Connection Cable RRL-VA (0,22 mm²)
Construction: Strand/Fiber glass/Fiber glass/Stainless steel wire armouring
Temperature resistant up to +400°C
5. Connection Cable LiYY (0,25 mm²)
Construction: Strand/PVC/PVC
Ttemperature resistant up to +70°C
