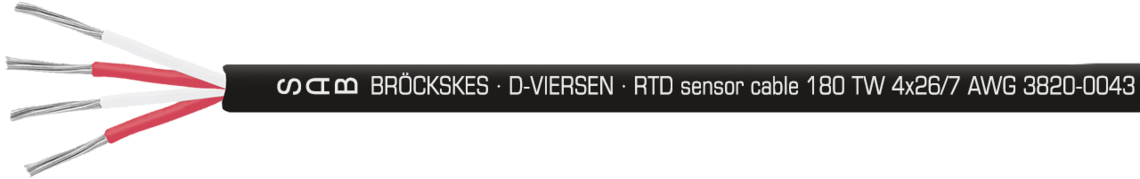

RTD sensor cable

Connection cables for RTD

Application

Outstanding features

  • hochtemperaturbeständig
  • geringer Durchmesser

Construction

Conductor

tinned copper

RTD sensor cable 180 TW

RTD sensor cable 180 C TW

RTD sensor cable 180 flex

RTD sensor cable 180 C flex

RTD sensor cable 180 highflex

RTD sensor cable 180 C highflex



nickel-plated copper

RTD sensor cable 250 TW

RTD sensor cable 250 C TW

Insulation

FEP

RTD sensor cable 180 TW

RTD sensor cable 180 C TW

RTD sensor cable 180 flex

RTD sensor cable 180 C flex



PFA

RTD sensor cable 250 TW

RTD sensor cable 250 C TW



Besilen®

RTD sensor cable 180 highflex

RTD sensor cable 180 C highflex

Colour code

2 x 26/7 AWG: red / white

3 x 26/7 AWG: red / red / white

4 x 26/7 AWG: red / red / white / white

Screen

tinned copper braiding

RTD sensor cable 180 C TW

RTD sensor cable 180 C flex

RTD sensor cable 180 C highflex



nickel-plated copper braiding

RTD sensor cable 250 C TW



no screen

RTD sensor cable 180 TW

RTD sensor cable 180 flex

RTD sensor cable 250 TW

RTD sensor cable 180 highflex

Sheath material

FEP

RTD sensor cable 180 TW

RTD sensor cable 180 C TW



Besilen®

RTD sensor cable 180 flex

RTD sensor cable 180 C flex

RTD sensor cable 180 highflex

RTD sensor cable 180 C highflex



PFA

RTD sensor cable 250 TW

RTD sensor cable 250 C TW

Sheath colour

black

RTD sensor cable 180 TW

RTD sensor cable 180 C TW



red

RTD sensor cable 180 flex

RTD sensor cable 180 C flex

RTD sensor cable 180 highflex

RTD sensor cable 180 C highflex



white

RTD sensor cable 250 TW

RTD sensor cable 250 C TW

Conductor

tinned copper

RTD sensor cable 180 TW

RTD sensor cable 180 C TW

RTD sensor cable 180 flex

RTD sensor cable 180 C flex

RTD sensor cable 180 highflex

RTD sensor cable 180 C highflex



nickel-plated copper

RTD sensor cable 250 TW

RTD sensor cable 250 C TW

Insulation

FEP

RTD sensor cable 180 TW

RTD sensor cable 180 C TW

RTD sensor cable 180 flex

RTD sensor cable 180 C flex



PFA

RTD sensor cable 250 TW

RTD sensor cable 250 C TW



Besilen®

RTD sensor cable 180 highflex

RTD sensor cable 180 C highflex

Colour code

2 x 26/7 AWG: red / white

3 x 26/7 AWG: red / red / white

4 x 26/7 AWG: red / red / white / white

Screen

tinned copper braiding

RTD sensor cable 180 C TW

RTD sensor cable 180 C flex

RTD sensor cable 180 C highflex



nickel-plated copper braiding

RTD sensor cable 250 C TW



no screen

RTD sensor cable 180 TW

RTD sensor cable 180 flex

RTD sensor cable 250 TW

RTD sensor cable 180 highflex

Sheath material

FEP

RTD sensor cable 180 TW

RTD sensor cable 180 C TW



Besilen®

RTD sensor cable 180 flex

RTD sensor cable 180 C flex

RTD sensor cable 180 highflex

RTD sensor cable 180 C highflex



PFA

RTD sensor cable 250 TW

RTD sensor cable 250 C TW

Sheath colour

black

RTD sensor cable 180 TW

RTD sensor cable 180 C TW



red

RTD sensor cable 180 flex

RTD sensor cable 180 C flex

RTD sensor cable 180 highflex

RTD sensor cable 180 C highflex



white

RTD sensor cable 250 TW

RTD sensor cable 250 C TW

Technical data

Peak operating voltage

48 V

Testing voltage

core/core 600 V

core/screen 600 V

Min. bending radius

fixed laying: 15 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+180 °C

flexible application: -25/+180 °C

RTD sensor cable 180 flex

RTD sensor cable 180 C flex

RTD sensor cable 180 highflex

RTD sensor cable 180 C highflex



fixed laying: -90/+180 °C

flexible application: -55/+180 °C

RTD sensor cable 180 TW

RTD sensor cable 180 C TW



fixed laying: -90/+250 °C

flexible application: -55/+250 °C

RTD sensor cable 250 TW

RTD sensor cable 250 C TW

Absence of harmful substances

gemäß RoHS-Richtlinie der Europäischen Union

Peak operating voltage

48 V

Testing voltage

core/core 600 V

core/screen 600 V

Min. bending radius

fixed laying: 15 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+180 °C

flexible application: -25/+180 °C

RTD sensor cable 180 flex

RTD sensor cable 180 C flex

RTD sensor cable 180 highflex

RTD sensor cable 180 C highflex



fixed laying: -90/+180 °C

flexible application: -55/+180 °C

RTD sensor cable 180 TW

RTD sensor cable 180 C TW



fixed laying: -90/+250 °C

flexible application: -55/+250 °C

RTD sensor cable 250 TW

RTD sensor cable 250 C TW

Absence of harmful substances

gemäß RoHS-Richtlinie der Europäischen Union

Dimensions

item no. Cable type No. of cores x
cross section
Approx. outer-ø Copper figure Cable weight ≈
38200023RTD sensor cable 180 TW2 x 26/7 AWG1,9 mm2,8 kg/km6,1 kg/km Send inquiry
38200033RTD sensor cable 180 TW3 x 26/7 AWG2,0 mm4,2 kg/km8,0 kg/km Send inquiry
38200043RTD sensor cable 180 TW4 x 26/7 AWG2,2 mm5,6 kg/km10,1 kg/km Send inquiry
38201023RTD sensor cable 180 C TW2 x 26/7 AWG2,5 mm9,8 kg/km12,7 kg/km Send inquiry
38201033RTD sensor cable 180 C TW3 x 26/7 AWG2,6 mm11,3 kg/km14,7 kg/km Send inquiry
38201043RTD sensor cable 180 C TW4 x 26/7 AWG2,8 mm15,9 kg/km19,0 kg/km Send inquiry
38202023RTD sensor cable 180 flex2 x 26/7 AWG2,5 mm2,8 kg/km8,7 kg/km Send inquiry
38202033RTD sensor cable 180 flex3 x 26/7 AWG2,6 mm4,2 kg/km10,5 kg/km Send inquiry
38202043RTD sensor cable 180 flex4 x 26/7 AWG2,8 mm5,6 kg/km12,7 kg/km Send inquiry
38203023RTD sensor cable 180 C flex2 x 26/7 AWG3,0 mm9,8 kg/km14,1 kg/km Send inquiry
38203033RTD sensor cable 180 C flex3 x 26/7 AWG3,1 mm11,3 kg/km16,1 kg/km Send inquiry
38203043RTD sensor cable 180 C flex4 x 26/7 AWG3,3 mm15,9 kg/km20,4 kg/km Send inquiry
38204023RTD sensor cable 250 TW2 x 26/7 AWG1,9 mm2,8 kg/km6,1 kg/km Send inquiry
38204033RTD sensor cable 250 TW3 x 26/7 AWG2,0 mm4,2 kg/km8,0 kg/km Send inquiry
38204043RTD sensor cable 250 TW4 x 26/7 AWG2,2 mm5,6 kg/km10,1 kg/km Send inquiry
38205023RTD sensor cable 250 C TW2 x 26/7 AWG2,5 mm9,8 kg/km12,9 kg/km Send inquiry
38205033RTD sensor cable 250 C TW3 x 26/7 AWG2,6 mm11,3 kg/km14,9 kg/km Send inquiry
38205043RTD sensor cable 250 C TW4 x 26/7 AWG2,8 mm15,9 kg/km19,3 kg/km Send inquiry
38206023RTD sensor cable 180 highflex2 x 26/7 AWG3,2 mm2,8 kg/km12,1 kg/km Send inquiry
38206033RTD sensor cable 180 highflex3 x 26/7 AWG3,3 mm4,2 kg/km14,0 kg/km Send inquiry
38206043RTD sensor cable 180 highflex4 x 26/7 AWG3,6 mm5,6 kg/km16,8 kg/km Send inquiry
38207023RTD sensor cable 180 C highflex2 x 26/7 AWG3,6 mm13,1 kg/km19,2 kg/km Send inquiry
38207033RTD sensor cable 180 C highflex3 x 26/7 AWG3,8 mm14,6 kg/km21,4 kg/km Send inquiry
38207043RTD sensor cable 180 C highflex4 x 26/7 AWG4,1 mm19,4 kg/km27,0 kg/km Send inquiry
item no.
Cable type
No. of cores x
cross section
Approx. outer-ø
Copper figure
Cable weight ≈
38200023
RTD sensor cable 180 TW
2 x 26/7 AWG
1,9 mm
2,8 kg/km
6,1 kg/km
38200033
RTD sensor cable 180 TW
3 x 26/7 AWG
2,0 mm
4,2 kg/km
8,0 kg/km
38200043
RTD sensor cable 180 TW
4 x 26/7 AWG
2,2 mm
5,6 kg/km
10,1 kg/km
38201023
RTD sensor cable 180 C TW
2 x 26/7 AWG
2,5 mm
9,8 kg/km
12,7 kg/km
38201033
RTD sensor cable 180 C TW
3 x 26/7 AWG
2,6 mm
11,3 kg/km
14,7 kg/km
38201043
RTD sensor cable 180 C TW
4 x 26/7 AWG
2,8 mm
15,9 kg/km
19,0 kg/km
38202023
RTD sensor cable 180 flex
2 x 26/7 AWG
2,5 mm
2,8 kg/km
8,7 kg/km
38202033
RTD sensor cable 180 flex
3 x 26/7 AWG
2,6 mm
4,2 kg/km
10,5 kg/km
38202043
RTD sensor cable 180 flex
4 x 26/7 AWG
2,8 mm
5,6 kg/km
12,7 kg/km
38203023
RTD sensor cable 180 C flex
2 x 26/7 AWG
3,0 mm
9,8 kg/km
14,1 kg/km
38203033
RTD sensor cable 180 C flex
3 x 26/7 AWG
3,1 mm
11,3 kg/km
16,1 kg/km
38203043
RTD sensor cable 180 C flex
4 x 26/7 AWG
3,3 mm
15,9 kg/km
20,4 kg/km
38204023
RTD sensor cable 250 TW
2 x 26/7 AWG
1,9 mm
2,8 kg/km
6,1 kg/km
38204033
RTD sensor cable 250 TW
3 x 26/7 AWG
2,0 mm
4,2 kg/km
8,0 kg/km
38204043
RTD sensor cable 250 TW
4 x 26/7 AWG
2,2 mm
5,6 kg/km
10,1 kg/km
38205023
RTD sensor cable 250 C TW
2 x 26/7 AWG
2,5 mm
9,8 kg/km
12,9 kg/km
38205033
RTD sensor cable 250 C TW
3 x 26/7 AWG
2,6 mm
11,3 kg/km
14,9 kg/km
38205043
RTD sensor cable 250 C TW
4 x 26/7 AWG
2,8 mm
15,9 kg/km
19,3 kg/km
38206023
RTD sensor cable 180 highflex
2 x 26/7 AWG
3,2 mm
2,8 kg/km
12,1 kg/km
38206033
RTD sensor cable 180 highflex
3 x 26/7 AWG
3,3 mm
4,2 kg/km
14,0 kg/km
38206043
RTD sensor cable 180 highflex
4 x 26/7 AWG
3,6 mm
5,6 kg/km
16,8 kg/km
38207023
RTD sensor cable 180 C highflex
2 x 26/7 AWG
3,6 mm
13,1 kg/km
19,2 kg/km
38207033
RTD sensor cable 180 C highflex
3 x 26/7 AWG
3,8 mm
14,6 kg/km
21,4 kg/km
38207043
RTD sensor cable 180 C highflex
4 x 26/7 AWG
4,1 mm
19,4 kg/km
27,0 kg/km

Other dimensions and colours are possible on request.
