Application

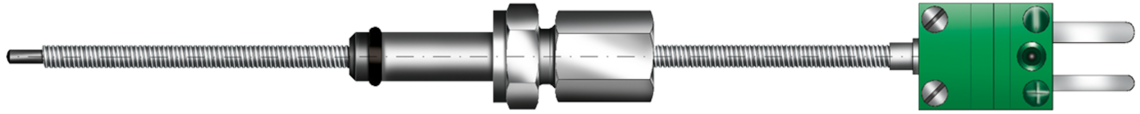

This dipstick thermocouple is especially appropriate to measure the temperature in engine oil. The dipstick can easily be inserted instead of the normal oil dipstick. The adjustable fixing tightens the opening so that during operation the oil cannot penetrate. With the help of the fixing, the immersion length of the dipstick can be modified.

Outstanding features

■ due to the adjustable immersion depth, it can be applied for the most different engine types!
■ different tightening-Ø possible on request! Different tightening-Ø on request

Additional information

temperature range of probe: 0°C / +200°C
limit deviation:class 1
Please note that the temperature stability of the sensor is determined by the weakest parameters.
Also available as PT100!

Construction

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type K

- other thermocouples - acc. to customer’s request

Type of measuring tip

- class 1, form A, insulated measuring tip

- class 1, form B, welded measuring tip

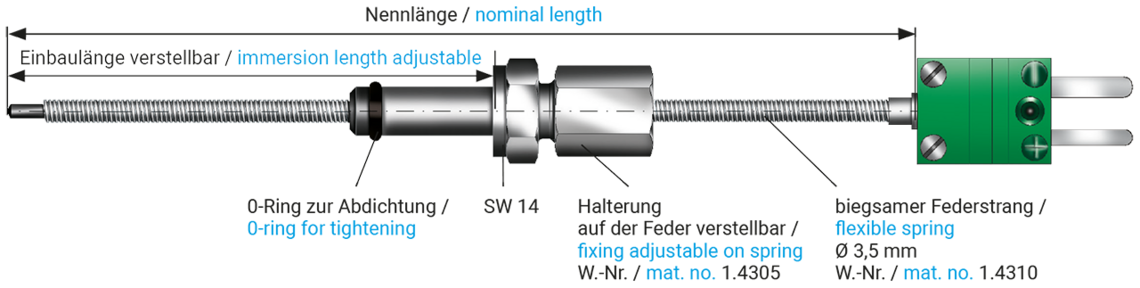

Spring diameter

3,5 mm

Spring material

1.4571

Connection cable

- without connection cable

- extension cable strand/FEP/FEP

- extension cable strand/FEP/overall copper shield/FEP

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Nominal length

According to customer requests. Please specify in mm.

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends specify in mm - acc. to customer’s request

- other connection ends

Accessoires

fixing adjustable on spring tightening on Ø mm - acc. to customer’s request

Possible on request

with batch certificate and identification

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type K

- other thermocouples - acc. to customer’s request

Type of measuring tip

- class 1, form A, insulated measuring tip

- class 1, form B, welded measuring tip

Spring diameter

3,5 mm

Spring material

1.4571

Connection cable

- without connection cable

- extension cable strand/FEP/FEP

- extension cable strand/FEP/overall copper shield/FEP

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Nominal length

According to customer requests. Please specify in mm.

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends specify in mm - acc. to customer’s request

- other connection ends

Accessoires

fixing adjustable on spring tightening on Ø mm - acc. to customer’s request

Possible on request

with batch certificate and identification

Configuration example

item no. Thermocouple Nominal length fixing dimension
T860-055-9061 x type K670 mmØ 8 mm Send inquiry
item no.
Thermocouple
Nominal length
fixing dimension
T860-055-906
1 x type K
670 mm
Ø 8 mm

Other configurations are possible on request.
