Sheathed resistance thermometer with connector plug for direct connection to measuring modules
Application
The sheathed resistance thermometer (MWT) is designed for universal temperature measurement. Direct connection to the measurement technology enables easy handling and quick measurement setups.
Compatible with the measurement modules from:
- CSM - Pt evo
- Ipetronik - M-RTD2
- IMC - Argus Fit UTI6
- Dewesoft - Sirius
Construction
| Implementation | - With crease protection - Without crease protection |
|---|---|
| Measuring resistance | - 1 x PT 100 |
| Connection cable | - RTD cable (FEP / FEP 180°C) - Sensor cable (FEP / PUR) |
| Class accuracy | - Class A - Class AA |
| Connection cable length | - 0,50 m - 1,0 m - 1,50 m - 2,0 m - 3,00 m - 5,00 m - 10,0 m - Other length in____m |
| Connection of the inner conductors | - 4-wire circuit |
| Sheath diameter | - 1,5 mm - 3 mm - Other sheath diameters - acc. to customer’s request |
| Nominal length | Can be freely selected according to customer requirements and specified in mm. |
| Connection end | - IMC - Lemo 7 pole - CSM - Lemo 6 pole - Ipetronik - Lemo 4 pole - Dewesoft - DSUB 9 or Lemo 6 pole |
| Accessories | Clamp fitting |
- With crease protection
- Without crease protection
- 1 x PT 100
- RTD cable (FEP / FEP 180°C)
- Sensor cable (FEP / PUR)
- Class A
- Class AA
- 0,50 m
- 1,0 m
- 1,50 m
- 2,0 m
- 3,00 m
- 5,00 m
- 10,0 m
- Other length in____m
- 4-wire circuit
- 1,5 mm
- 3 mm
- Other sheath diameters - acc. to customer’s request
Can be freely selected according to customer requirements and specified in mm.
- IMC - Lemo 7 pole
- CSM - Lemo 6 pole
- Ipetronik - Lemo 4 pole
- Dewesoft - DSUB 9 or Lemo 6 pole
Clamp fitting

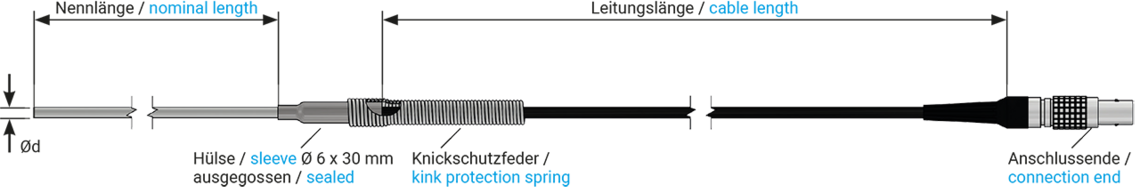

Dimensions
| item no. | RTD | length "L" [mm] | Nominal length | Cable | Cable length | Note | |
|---|---|---|---|---|---|---|---|
| T507-059-257 | 1 x PT 100 A | 1,5 mm | 100 mm | FEP / FEP | 1,00 m | For measuring module: CSM Ptevo | Send inquiry |
| T509-064-560 | 1 x PT 100 A | 1,5 mm | 200 mm | FEP / FEP | 8,00 m | For measuring module: Ipetronik RTD2 | Send inquiry |
| T507-065-613 | 1 x PT 100 A | 1,5 mm | 200 mm | FEP | 3,0 m | For measuring module: IMC Argus Fit / Chronos | Send inquiry |
| TXXX | 1 x PT 100 A | 1,5 mm | 100 mm | FEP / FEP | 1,0 m | For measuring module: DEWESOFT Sirius | Send inquiry |
Other dimensions and colours are possible on request.
