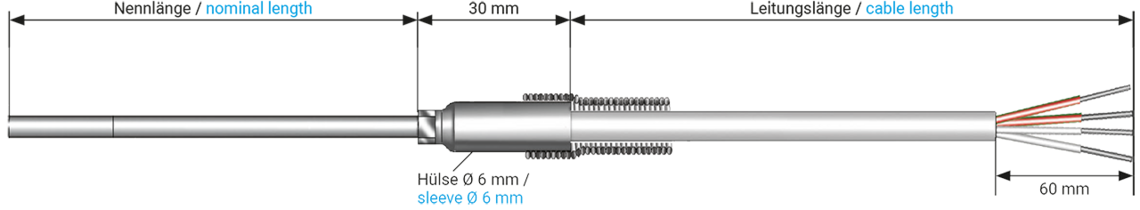

Mineral insulated resistance thermometer with connection cable

Application

This Pt100 RTD is versatile due to its design and high temperature resistance.
With its slim design and flexible sheath material, the resistance thermometer can even be installed in hardly reachable positions. Easy installation is ensured in conjunction with a clamping screw connection.

Additional information

With a 2-wire circuit only one class accuracy class B accuracy can be confirmed.
material 1.4541: +800°C
Please note that the temperature stability of the sensor is determined by the weakest parameters.

available on request: ■ class AA ■ class DIN 1/10

Construction

RTD

- 1 x PT100

- 2 x PT100

Limiting deviation

Class A

Class B



-30°C / +300°C

-50°C / +500°C



-100°C / +450°C

-196°C / +600°C

Connection types of inner wire

- 2-wire circuit

- 3-wire circuit

- 4-wire circuit

Sheatdiameter

- 1,5 mm

- 3,0 mm

- 4,5 mm

- other diameter - on request

Nominal length

According to customer requests. Please specify in mm.

Type

- with kink protection

- without kink protection

Connection cable

- RTD cable (FEP / FEP)

- other connection cables - on request

Connection cable length

- 0,5 m

- 1,0 m

- 1,5 m

- 2,0 m

- 3,0 m

- 5,0 m

- 10,0 m

- other length - on request

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends in mm - on request

- other connection ends

On request possible

- with batch certificate and identification

- Dakks calibration on request

- accessories (fix) - on request

RTD

- 1 x PT100

- 2 x PT100

Limiting deviation

Class A

Class B



-30°C / +300°C

-50°C / +500°C



-100°C / +450°C

-196°C / +600°C

Connection types of inner wire

- 2-wire circuit

- 3-wire circuit

- 4-wire circuit

Sheatdiameter

- 1,5 mm

- 3,0 mm

- 4,5 mm

- other diameter - on request

Nominal length

According to customer requests. Please specify in mm.

Type

- with kink protection

- without kink protection

Connection cable

- RTD cable (FEP / FEP)

- other connection cables - on request

Connection cable length

- 0,5 m

- 1,0 m

- 1,5 m

- 2,0 m

- 3,0 m

- 5,0 m

- 10,0 m

- other length - on request

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends in mm - on request

- other connection ends

On request possible

- with batch certificate and identification

- Dakks calibration on request

- accessories (fix) - on request

Configuration examples

item no. RTD Outer-ø Nominal length Connection types Cable type Cable length Connection ends
T507-059-2571 x PT1001,5 mm100 mm4-wire circuitFEP/FEP1000 mmLemo FGA.0B.306 Send inquiry
T505-053-4901 x PT1001,5 mm100 mm4-wire circuitFEP/FEP1000 mmbare ends Send inquiry
item no.
RTD
Outer-ø
Nominal length
Connection types
Cable type
Cable length
Connection ends
T507-059-257
1 x PT100
1,5 mm
100 mm
4-wire circuit
FEP/FEP
1000 mm
Lemo FGA.0B.306
T505-053-490
1 x PT100
1,5 mm
100 mm
4-wire circuit
FEP/FEP
1000 mm
bare ends

Other configurations are possible on request.
