Mineral insulated thermocouple with breather nipple

Application

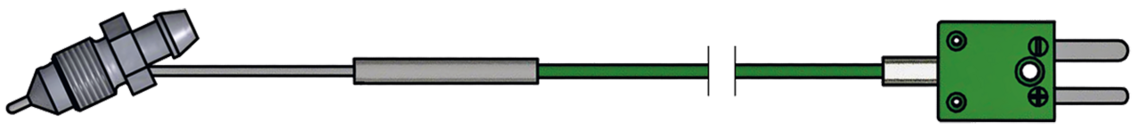

This mineral insulated thermocouple with breather nipple is especially designed for the use at brake callipers or clutch slave cylinders. The existing breather nipple is replaced by the breather with thermocouple and thus the temperature of the brake and clutch fluid can be measured.

Construction

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type J

- 2 x type J

- 1 x type K

- 2 x type K

- other thermocouples - acc. to customer’s request

Connection cable

- Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP)

- Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP)

- other connection cables - on request (see technical data)

Connection cable length

- 0,5 m

- 1,0 m

- 1,5 m

- 2,0 m

- 3,0 m

- 5,0 m

- 10,0 m

- other length - acc. to customer’s request

Sheath material

- 1.4541

- other sheath diameters - acc. to customer’s request

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends specify in mm - acc. to customer’s request

- other connection ends

Type of measuring tip

- class 1, form A, insulated measuring tip

- class 1, form B, welded measuring tip

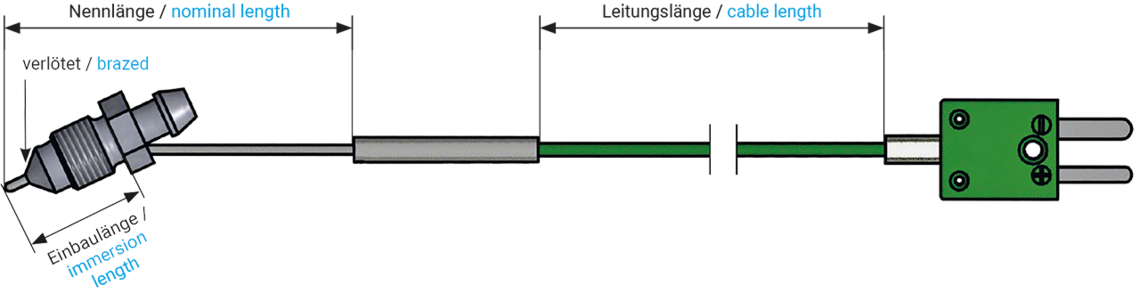

Nominal length

According to customer requests. Please specify in mm.

Immersion length

According to customer requests. Please specify in mm.

Thread

According to customer requests. Please specify in mm.

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type J

- 2 x type J

- 1 x type K

- 2 x type K

- other thermocouples - acc. to customer’s request

Connection cable

- Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP)

- Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP)

- other connection cables - on request (see technical data)

Connection cable length

- 0,5 m

- 1,0 m

- 1,5 m

- 2,0 m

- 3,0 m

- 5,0 m

- 10,0 m

- other length - acc. to customer’s request

Sheath material

- 1.4541

- other sheath diameters - acc. to customer’s request

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends specify in mm - acc. to customer’s request

- other connection ends

Type of measuring tip

- class 1, form A, insulated measuring tip

- class 1, form B, welded measuring tip

Nominal length

According to customer requests. Please specify in mm.

Immersion length

According to customer requests. Please specify in mm.

Thread

According to customer requests. Please specify in mm.

Configuration examples

item no. Type Nominal length nipple size Cable Cable length Connection ends
T209-056-683K200 mmM10x1x302 x 0,22 mm² FEP/C/FEP250 mmminiature thermoplug Send inquiry
T209-059-283K200 mmM10x1x222 x 0,22 mm² FEP/C/FEP3000 mmminiature thermoplug Send inquiry
item no.
Type
Nominal length
nipple size
Cable
Cable length
Connection ends
T209-056-683
K
200 mm
M10x1x30
2 x 0,22 mm² FEP/C/FEP
250 mm
miniature thermoplug
T209-059-283
K
200 mm
M10x1x22
2 x 0,22 mm² FEP/C/FEP
3000 mm
miniature thermoplug

Other configurations are possible on request.
