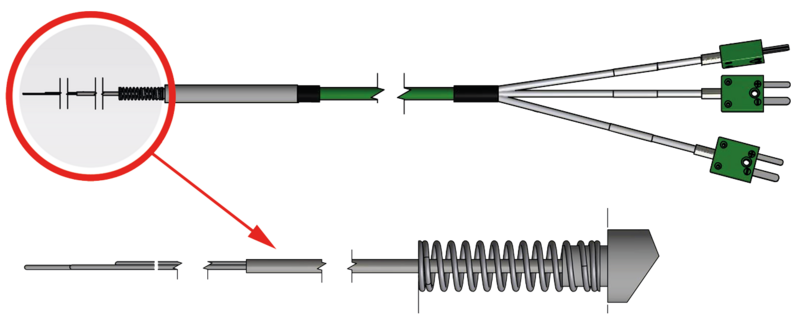

Multiple step thermocouple
Application
This multiple step thermocouple is especially appropriate for a temperature collection in the particle filter and catalytic converter. Due to the stepwise arrangement of the thermocouples, the temperature can be measured at different points.
Construction
| Thermocouple | The following thermocouple types can be selected depending on the application: - 1 x Typ J - 2 x Typ J - 1 x Typ K - 2 x Typ K - other thermocouples - acc. to customer’s request |
|---|---|
| Sheath material | - 1.4541 (+800°C) - 2.4816 (+1100°C) - other sheath diameters - acc. to customer’s request - material of protecting tube - acc. to customer’s request |
| Connection ends | - miniature thermoplug - miniature socket - standard plug - standard socket - free ends specify in mm - acc. to customer’s request - other connection ends |
| Sheath diameter | 0,5 mm |
| Protecting tube diameter | 1,5 mm |
| Type of measuring tip | - class 1, form A, insulated measuring tip - class 1, form B, welded measuring tip |
| Connection cable | - Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP) - Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP) - other connection cables - on request (see technical data) |
| Nominal length | According to customer requests. Please specify in mm. |
| Possible on request | - with batch certificate and identification - Dakks calibration on request - accessories (fix) - acc. to customer’s request |
| Probe length | - 1 mm - 2 mm - 3 mm - acc. to customer’s request |
The following thermocouple types can be selected depending on the application:
- 1 x Typ J
- 2 x Typ J
- 1 x Typ K
- 2 x Typ K
- other thermocouples - acc. to customer’s request
- 1.4541 (+800°C)
- 2.4816 (+1100°C)
- other sheath diameters - acc. to customer’s request
- material of protecting tube - acc. to customer’s request
- miniature thermoplug
- miniature socket
- standard plug
- standard socket
- free ends specify in mm - acc. to customer’s request
- other connection ends
0,5 mm
1,5 mm
- class 1, form A, insulated measuring tip
- class 1, form B, welded measuring tip
- Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP)
- Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP)
- other connection cables - on request (see technical data)
According to customer requests. Please specify in mm.
- with batch certificate and identification
- Dakks calibration on request
- accessories (fix) - acc. to customer’s request
- 1 mm
- 2 mm
- 3 mm
- acc. to customer’s request

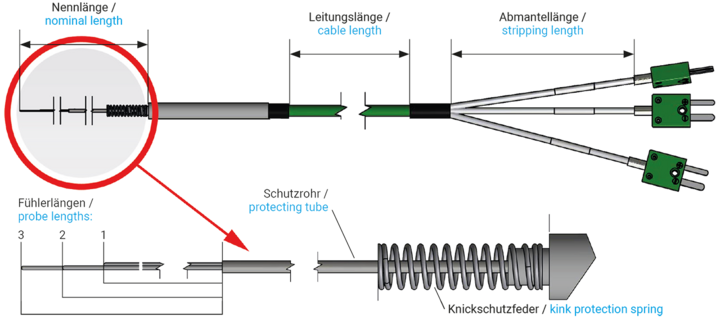

Configuration examples
| item no. | Type | Ø min.t/c | Ø protecting tube | EL 1 | EL 2 | EL 3 | Cable | Cable length | Stripping length | Connection ends | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T499-058-977 | K | 0,5 mm | 1,5 mm | 130 mm | 167 mm | 204 mm | 3 x 2 x 0,22 mm² FEP/C/FEP | 600 mm | 85 mm | miniature thermoplug | Send inquiry |
| T499-058-979 | K | 0,5 mm | 1,5 mm | 130 mm | 186 mm | 242 mm | 3 x 2 x 0,22 mm² FEP/C/FEP | 600 mm | 85 mm | miniature thermoplug | Send inquiry |
Other configurations are possible on request.
