Quick coupling thermocouple
Application

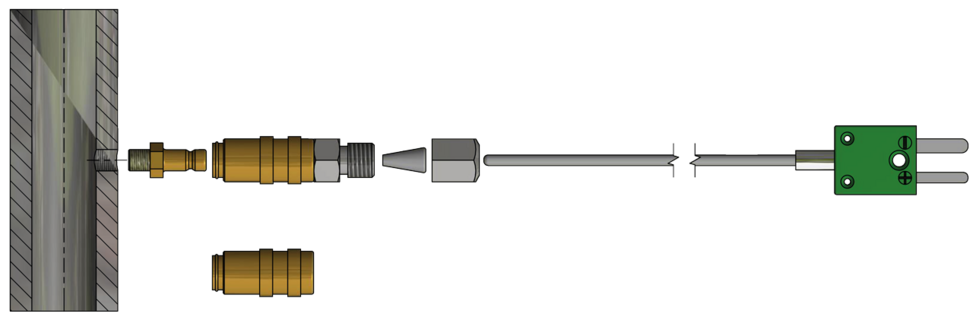

This thermocouple is especially appropriate to collect the temperature in pipe systems. The quick coupling of the thermocouple allows the easy exchange of the thermocouple without disturbing the closed system too much. Optionally the system can be closed by a blind plug. The positioning of the mineral insulated thermocouple is possible by a clamp crewing. Screw-in fitting M5x1 with integrated sealing compound.
Additional information
Also available as a combination of thermocouple and cable!
Please choose thermocouple at “temperature measurement in universal use - mineral insulated thermocouple with plug”.

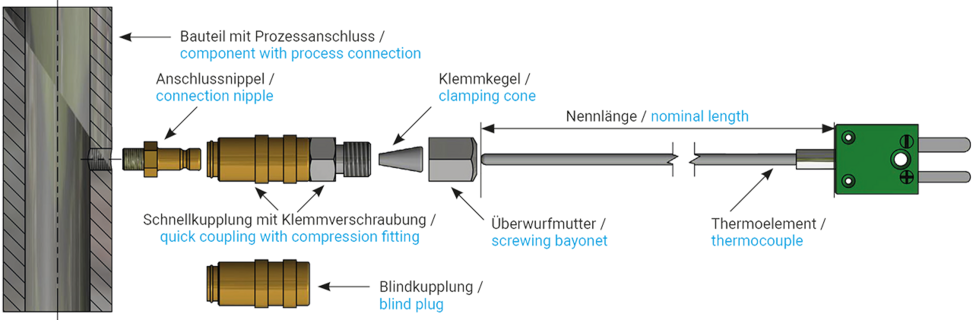

Construction
| Thermocouple | The following thermocouple types can be selected depending on the application: - 1 x type J - 1 x type K - other thermocouples - acc. to customer’s request |
|---|---|
| Sheath diameter | - 1,5 mm - 3,0 mm |
| Nominal length | According to customer requests. Please specify in mm. |
| Connection ends | - miniature thermoplug - miniature socket - standard plug - standard socket - free ends specify in mm - acc. to customer’s request - other connection ends |
The following thermocouple types can be selected depending on the application:
- 1 x type J
- 1 x type K
- other thermocouples - acc. to customer’s request
- 1,5 mm
- 3,0 mm
According to customer requests. Please specify in mm.
- miniature thermoplug
- miniature socket
- standard plug
- standard socket
- free ends specify in mm - acc. to customer’s request
- other connection ends
Configuration examples
| item no. | Identification | |
|---|---|---|
| T027-058-800 | connection nipple M5x1 | Send inquiry |
| T027-058-122 | quick coupling for Ø 1,5 mm min.t/c | Send inquiry |
| T027-058-799 | quick coupling for Ø 3,0 mm min.t/c | Send inquiry |
| T027-058-156 | blind plug | Send inquiry |
Other configurations are possible on request.
