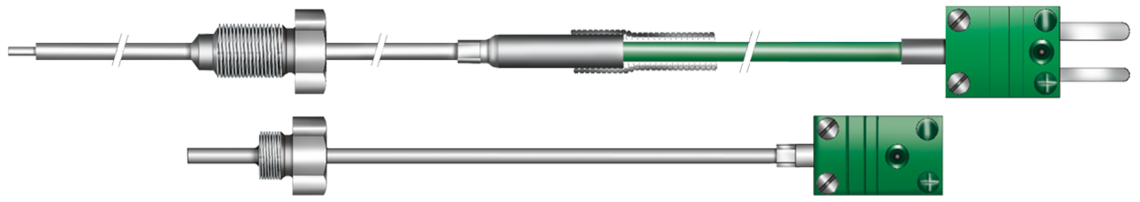

Screw-in thermocouple
Application
Screw-in thermocouples are used for reliable temperature measurement in industrial applications, particularly on engine test stands and for exhaust gas temperature monitoring at manifolds. These robust sensors with Type K or Type J thermocouples provide precise, fast-response measurements under demanding operational conditions.
The screw-in design ensures a secure, pressure-tight, and vibration-resistant integration into the process. A small sheath diameter allows for rapid response times, while an optional reinforcement tube increases mechanical stability. Thermocouples are available with or without strain relief, depending on the application.
The shielded FEP connection cable is temperature-resistant up to 180 °C, providing both mechanical protection and reliable shielding against electromagnetic interference. Screw-in thermocouples can be customized, for example regarding thermocouple type, tip design, sheath and reinforcement tube diameter, thread size, installation and nominal length, as well as connection cable and termination.
Outstanding features
- Secure process integration with screw-in design for pressure-tight and vibration-resistant mounting
- Fast response time thanks to small sheath diameter for dynamic temperature measurements
- High mechanical stability with optional reinforcement tube and strain relief
- Reliable signal transmission with shielded FEP connection cable, temperature-resistant up to 180 °C
- Customizable configuration for thermocouple type, tip design, dimensions, thread, connection cable, and termination
Additional information
Also available as type T!
Technical data
| Thermocouple | The following thermocouple types can be selected depending on the application: - 1 x Typ J - 1 x Typ K - other thermocouples - acc. to customer’s request |
|---|---|
| Type of measuring tip | - class 1, form A, insulated measuring tip - class 1, form B, welded measuring tip |
| Kink protection behind sleeve | - with kink protection - without kink protection |
| Sheath diameter | - 1,5 mm - 3,0 mm - 4,5 mm - 6,0 mm |
| Reinforcing tube | - without - 3,0 mm - specify in mm - acc. to customer’s request |
| Sheath material | - 1.4541 (+800°C) - 2.4816 (+1100°C) - other sheath diameters - acc. to customer’s request |

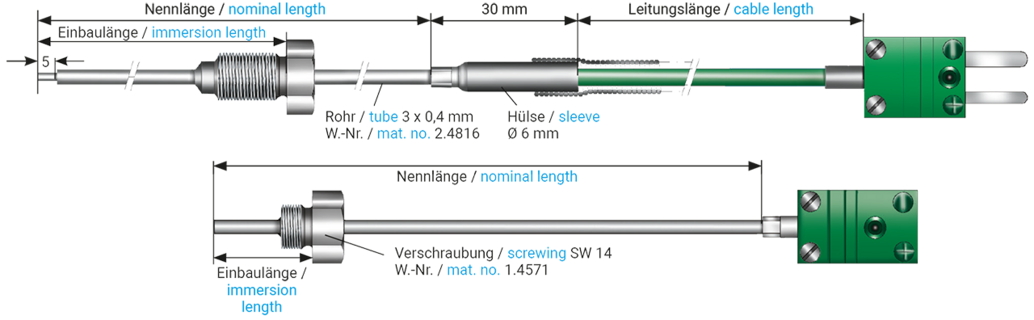

| Nominal length | According to customer requests. Please specify in mm. |
| Immersion length | According to customer requests. Please specify in mm. |
| Thread | According to customer requests (M6, M8, M10, G1/2) Please specify in mm. |
| Screwing | According to customer requests. Please specify in mm. |
| Connection cable | - Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP) - Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP) - other connection cables - on request (see technical data) |
| Connection cable length | - 0,5 m - 1,0 m - 1,5 m - 2,0 m - 3,0 m - 5,0 m - 10,0 m - other length - acc. to customer’s request |
| Connection ends | - miniature thermoplug - miniature socket - standard plug - standard socket - free ends specify in mm - acc. to customer’s request - other connection ends |
| Possbile on request | with batch certificate and identification |
The following thermocouple types can be selected depending on the application:
- 1 x Typ J
- 1 x Typ K
- other thermocouples - acc. to customer’s request
- class 1, form A, insulated measuring tip
- class 1, form B, welded measuring tip
- with kink protection
- without kink protection
- 1,5 mm
- 3,0 mm
- 4,5 mm
- 6,0 mm
- without
- 3,0 mm
- specify in mm - acc. to customer’s request
- 1.4541 (+800°C)
- 2.4816 (+1100°C)
- other sheath diameters - acc. to customer’s request
According to customer requests. Please specify in mm.
According to customer requests. Please specify in mm.
According to customer requests (M6, M8, M10, G1/2) Please specify in mm.
According to customer requests. Please specify in mm.
- Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP)
- Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP)
- other connection cables - on request (see technical data)
- 0,5 m
- 1,0 m
- 1,5 m
- 2,0 m
- 3,0 m
- 5,0 m
- 10,0 m
- other length - acc. to customer’s request
- miniature thermoplug
- miniature socket
- standard plug
- standard socket
- free ends specify in mm - acc. to customer’s request
- other connection ends
with batch certificate and identification
Configuration examples
| item no. | Type | Outer-ø | Thread | Immersion length | Probe length | Thread length | Cable | Cable length | Connection ends | |
|---|---|---|---|---|---|---|---|---|---|---|
| T848-058-794 | Type K | 1,50 mm | M6 | 20 mm | 13 mm | 7 mm | 2 x 0,22 mm² FEP/C/FEP | 2000 mm | miniature thermoplug | Send inquiry |
| T848-059-408 | Type K | 1,50 mm | M8 | 20 mm | 13 mm | 7 mm | 2 x 0,22 mm² FEP/C/FEP | 2000 mm | miniature thermoplug | Send inquiry |
| T848-058-437 | Type K | 3,00 mm | M6 | 25 mm | 60 mm | 8 mm | 2 x 0,22 mm² FEP/C/FEP | 500 mm | miniature thermoplug | Send inquiry |
| T848-046-828 | Type K | 3,00 mm | M10 | 25 mm | 156 mm | 10 mm | 2 x 0,22 mm² FEP/C/FEP | 500 mm | miniature thermoplug | Send inquiry |
Other configurations are possible on request.
