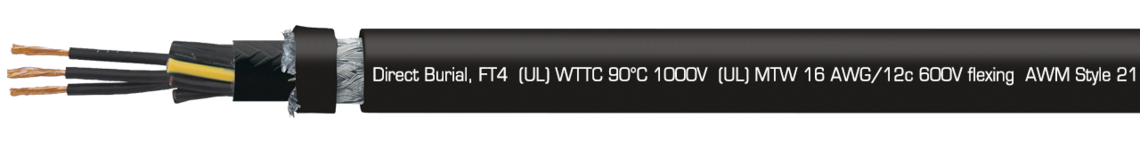

TR 600 Auto CY black

Type TC, MTW and WTTC, UV and oil resistant, flexible Tray Cable and Machine-Tool Cable with overall copper screen for cable tracks

Marking for TR 600 Auto CY black 32261612: SAB BRÖCKSKES · D-VIERSEN · TR 600 Auto CY black 16 AWG/12c 32261612 TFFN (UL) Type TC-ER 90°C 600V, Oil Resistant I, Sunlight Resistant, Direct Burial, FT4 (UL) WTTC 90°C 1000V (UL) MTW 16 AWG/12c 600V flexing AWM Style 21179 600V c(UL) Type CIC SHIELDED 90°C dry 600V FT1 FT2 FT4 CE

Download data sheet for TR 600 Auto CY black

Questions about our products?

Application

The screened high-flex TR 600 Auto CY black is an UV and oil resistant Tray Cable and Machine-Tool Cable with black cores and overall copper screen for cable tracks. Recommended applications are in machine tools, control systems assembly lines, CNC machining, grinding machines, bottling equipment, data processing equipment, and connection between control panels and machines.

Outstanding features

Flexible cable for cable tray use
Oil resistance
Sunlight resistance
NFPA 79 for industrial machinery
WTTC approval
WTTC: UL Subject 2277
TC: UL Standard 1277
(UL)/(cUL) listed

Construction

Conductor	bare copper strands with reference to IEC 60228, VDE 0295 class 6
Insulation	special formulated PVC/Nylon
Colour code	black cores with consecutive white numbers; green-yellow earth wire from 3 cores. Also available with blue, red or other color cores
Stranding	in layers
Wrapping	non-woven tape
Inner sheath	special formulated PVC
Screen	tinned copper braiding
Sheath material	special sunlight and oil resistant PVC
Sheath colour	black (RAL 9005)

Conductor

bare copper strands with reference to IEC 60228, VDE 0295 class 6

Insulation

special formulated PVC/Nylon

Colour code

black cores with consecutive white numbers; green-yellow earth wire from 3 cores. Also available with blue, red or other color cores

Stranding

in layers

Wrapping

non-woven tape

Inner sheath

special formulated PVC

Screen

tinned copper braiding

Sheath material

special sunlight and oil resistant PVC

Sheath colour

black (RAL 9005)

Technical data

Voltage	UL-AWM/(UL)/c(UL): 600 V (UL) WTTC: 1000 V
Testing voltage	AWG 18-10 = 6000 V AWG 8-2 = 7500 V
Min. bending radius	fixed laying: 5 x d flexible application: 10 x d continuously flexible: 12 x d
Radiation resistance	8 x 10^7 cJ/kg
Temperature	UL-AWM: up to +105°C UL-AWM fixed laying: -25°C (UL)/c(UL): up to +90°C
Burning characteristics	(UL) FT4 and c(UL) FT1, FT2, FT4
Oil resistance I	yes
Sunlight resistance	yes
Exposed Runs	yes
Direct Burial	yes
Machinery Area	yes
Absence of harmful substances	acc. to RoHS directive of the European Union

Voltage

UL-AWM/(UL)/c(UL): 600 V

(UL) WTTC: 1000 V

Testing voltage

AWG 18-10 = 6000 V

AWG 8-2 = 7500 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature

UL-AWM: up to +105°C

UL-AWM fixed laying: -25°C

(UL)/c(UL): up to +90°C

Burning characteristics

(UL) FT4 and c(UL) FT1, FT2, FT4

Oil resistance I

yes

Sunlight resistance

yes

Exposed Runs

yes

Direct Burial

yes

Machinery Area

yes

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 5%	Copper figure	Cable weight ≈
L32261803	3 x 18 AWG	0,16 mm	8,2 mm	52,6 kg/km	116 kg/km	Send inquiry
L32261804	4 x 18 AWG	0,16 mm	9,8 mm	64,7 kg/km	135 kg/km	Send inquiry
L32261805	5 x 18 AWG	0,16 mm	10,5 mm	77,2 kg/km	159 kg/km	Send inquiry
L32261807	7 x 18 AWG	0,16 mm	12,2 mm	121,5 kg/km	224 kg/km	Send inquiry
L32261809	9 x 18 AWG	0,16 mm	14,3 mm	146,3 kg/km	296 kg/km	Send inquiry
L32261812	12 x 18 AWG	0,16 mm	15,1 mm	201,1 kg/km	338 kg/km	Send inquiry
L32261816	16 x 18 AWG	0,16 mm	17,3 mm	263,5 kg/km	451 kg/km	Send inquiry
L32261818	18 x 18 AWG	0,16 mm	18 mm	283,6 kg/km	492 kg/km	Send inquiry
L32261819	19 x 18 AWG	0,16 mm	18,7 mm	294,1 kg/km	515 kg/km	Send inquiry
L32261825	25 x 18 AWG	0,16 mm	20,8 mm	366,2 kg/km	616 kg/km	Send inquiry
L32261603	3 x 16 AWG	0,16 mm	9,8 mm	69,5 kg/km	139 kg/km	Send inquiry
L32261604	4 x 16 AWG	0,16 mm	10,5 mm	86,8 kg/km	164 kg/km	Send inquiry
L32261605	5 x 16 AWG	0,16 mm	11,5 mm	119,9 kg/km	202 kg/km	Send inquiry
L32261607	7 x 16 AWG	0,16 mm	13,9 mm	160,5 kg/km	294 kg/km	Send inquiry
L32261608	8 x 16 AWG	0,16 mm	14,9 mm	200,9 kg/km	347 kg/km	Send inquiry
L32261609	9 x 16 AWG	0,16 mm	15,7 mm	226,8 kg/km	359 kg/km	Send inquiry
L32261612	12 x 16 AWG	0,16 mm	17,2 mm	282,6 kg/km	456 kg/km	Send inquiry
L32261616	16 x 16 AWG	0,16 mm	18,7 mm	342,1 kg/km	548 kg/km	Send inquiry
L32261618	18 x 16 AWG	0,16 mm	19,5 mm	383,3 kg/km	602 kg/km	Send inquiry
L32261619	19 x 16 AWG	0,16 mm	20,3 mm	399 kg/km	643 kg/km	Send inquiry
L32261625	25 x 16 AWG	0,16 mm	23,7 mm	501,1 kg/km	829 kg/km	Send inquiry
L32261403	3 x 14 AWG	0,16 mm	11,2 mm	119,7 kg/km	197 kg/km	Send inquiry
L32261404	4 x 14 AWG	0,16 mm	12,1 mm	150,2 kg/km	237 kg/km	Send inquiry
L32261405	5 x 14 AWG	0,16 mm	13,2 mm	179,7 kg/km	286 kg/km	Send inquiry
L32261407	7 x 14 AWG	0,16 mm	16,9 mm	266,5 kg/km	448 kg/km	Send inquiry
L32261409	9 x 14 AWG	0,16 mm	18,8 mm	327,9 kg/km	515 kg/km	Send inquiry
L32261412	12 x 14 AWG	0,16 mm	19,7 mm	412,5 kg/km	619 kg/km	Send inquiry
L32261418	18 x 14 AWG	0,16 mm	23,6 mm	572,9 kg/km	901 kg/km	Send inquiry
L32261425	25 x 14 AWG	0,16 mm	28,1 mm	775,3 kg/km	1202 kg/km	Send inquiry
L32261207	7 x 12 AWG	0,16 mm	18,6 mm	380,1 kg/km	567 kg/km	Send inquiry
