TR 600 CY blue

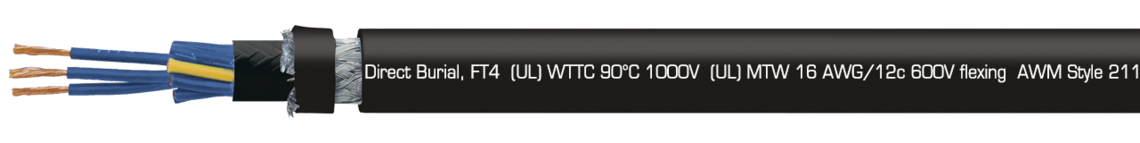

Type TC, MTW and WTTC, UV and oil resistant, flexible Tray Cable and Machine-Tool Cable with blue cores and overall copper screen

Marking for TR 600 CY blue 32211612: SAB BRÖCKSKES · D-VIERSEN · TR 600 CY blue 16 AWG/12c 32211612 TFFN (UL) Type TC-ER 90°C 600V, Oil Resistant I, Sunlight Resistant, Direct Burial, FT4 (UL) WTTC 90°C 1000V (UL) MTW 16 AWG/12c 600V flexing AWM Style 21179 600V c(UL) Type CIC SHIELDED 90°C dry 600V FT1 FT2 FT4 CE

Download data sheet for TR 600 CY blue

Questions about our products?

Application

WTTC = Wind Turbine Tray Cable (WTTC) - The screened and oil resistant TR 600 CY blue is an oil resistant Wind Turbine Tray Cable and Machine-Tool Cable for industrial machinery. The Cable is applied in machine tools, control systems assembly lines, CNC machining, grinding machines, bottling equipment, data processing equipment, and connection between control panels and machines.

Outstanding features

Flexible cable for cable tray use
Oil resistance
Sunlight resistance
NFPA 79 for industrial machinery
WTTC approval
WTTC: UL Subject 2277
TC: UL Standard 1277
(UL)/(cUL) listed

Additional information

Possible on request!

also available with black, red or other color cores

Construction

Conductor	bare copper strands with reference to IEC 60228, VDE 0295 class 5 + UL standard 758 table 5.1 + UL 1581 table 20.1
Insulation	special formulated PVC/Nylon
Colour code	blue cores with numbers, green-yellow earth wire from 3 cores
Stranding	in layers
Inner sheath	special formulated PVC
Screen	tinned copper braiding
Sheath material	special sunlight and oil resistant PVC
Sheath colour	black (RAL 9005)

Conductor

bare copper strands with reference to IEC 60228, VDE 0295 class 5 + UL standard 758 table 5.1 + UL 1581 table 20.1

Insulation

special formulated PVC/Nylon

Colour code

blue cores with numbers, green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheath

special formulated PVC

Screen

tinned copper braiding

Sheath material

special sunlight and oil resistant PVC

Sheath colour

black (RAL 9005)

Technical data

Voltage	UL-AWM/(UL)/c(UL): 600 V (UL) WTTC: 1000 V
Testing voltage	AWG 18-10 = 6000 V AWG 8-2 = 7500 V
Min. bending radius	fixed laying: 5 x d flexible application: 10 x d
Radiation resistance	8 x 10^7 cJ/kg
Temperature	UL-AWM: up to +105°C UL-AWM fixed laying: -25°C (UL)/c(UL): up to +90°C
Burning characteristics	(UL) FT4 and c(UL) FT1, FT2, FT4
Oil resistance I	yes
Sunlight resistance	yes
Exposed Runs	yes
Direct Burial	yes
Machinery Area	yes
Absence of harmful substances	acc. to RoHS directive of the European Union

Voltage

UL-AWM/(UL)/c(UL): 600 V

(UL) WTTC: 1000 V

Testing voltage

AWG 18-10 = 6000 V

AWG 8-2 = 7500 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature

UL-AWM: up to +105°C

UL-AWM fixed laying: -25°C

(UL)/c(UL): up to +90°C

Burning characteristics

(UL) FT4 and c(UL) FT1, FT2, FT4

Oil resistance I

yes

Sunlight resistance

yes

Exposed Runs

yes

Direct Burial

yes

Machinery Area

yes

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 5%	Copper figure	Cable weight ≈
L32211803	3 x 18 AWG	0,21 mm	9,1 mm	52,6 kg/km	118 kg/km	Send inquiry
L32211804	4 x 18 AWG	0,21 mm	9,7 mm	64,7 kg/km	137 kg/km	Send inquiry
L32211805	5 x 18 AWG	0,21 mm	10,4 mm	77,1 kg/km	159 kg/km	Send inquiry
L32211807	7 x 18 AWG	0,21 mm	11,4 mm	115 kg/km	203 kg/km	Send inquiry
L32211809	9 x 18 AWG	0,21 mm	14,2 mm	146,2 kg/km	280 kg/km	Send inquiry
L32211812	12 x 18 AWG	0,21 mm	15 mm	201 kg/km	337 kg/km	Send inquiry
L32211816	16 x 18 AWG	0,21 mm	17,2 mm	263,4 kg/km	444 kg/km	Send inquiry
L32211818	18 x 18 AWG	0,21 mm	17,9 mm	283,5 kg/km	483 kg/km	Send inquiry
L32211819	19 x 18 AWG	0,21 mm	17,9 mm	293,1 kg/km	492 kg/km	Send inquiry
L32211825	25 x 18 AWG	0,21 mm	20,7 mm	366,1 kg/km	611 kg/km	Send inquiry
L32211827	27 x 18 AWG	0,21 mm	20,7 mm	385,3 kg/km	633 kg/km	Send inquiry
L32211837	37 x 18 AWG	0,21 mm	23,8 mm	496,5 kg/km	853 kg/km	Send inquiry
L32211850	50 x 18 AWG	0,21 mm	27,9 mm	654,8 Kg/km	1128 kg/km	Send inquiry
L32211603	3 x 16 AWG	0,26 mm	9,7 mm	69,5 kg/km	141 kg/km	Send inquiry
L32211604	4 x 16 AWG	0,26 mm	10,4 mm	86,7 kg/km	165 kg/km	Send inquiry
L32211605	5 x 16 AWG	0,26 mm	11,4 mm	119,8 kg/km	205 kg/km	Send inquiry
L32211607	7 x 16 AWG	0,26 mm	12,3 mm	155,2 kg/km	249 kg/km	Send inquiry
L32211608	8 x 16 AWG	0,26 mm	14,8 mm	200,8 kg/km	330 kg/km	Send inquiry
L32211609	9 x 16 AWG	0,26 mm	15,6 mm	226,7 kg/km	368 kg/km	Send inquiry
L32211612	12 x 16 AWG	0,26 mm	17,1 mm	282,5 kg/km	450 kg/km	Send inquiry
L32211616	16 x 16 AWG	0,26 mm	18,6 mm	342 kg/km	541 kg/km	Send inquiry
L32211618	18 x 16 AWG	0,26 mm	19,4 mm	383,2 kg/km	595 kg/km	Send inquiry
L32211619	19 x 16 AWG	0,26 mm	19,4 mm	397,6 kg/km	608 kg/km	Send inquiry
L32211625	25 x 16 AWG	0,26 mm	23,6 mm	500,9 kg/km	812 kg/km	Send inquiry
L32211627	27 x 16 AWG	0,26 mm	23,6 mm	529,7 kg/km	848 kg/km	Send inquiry
L32211637	37 x 16 AWG	0,26 mm	26,6 mm	704,3 kg/km	1113 kg/km	Send inquiry
L32211641	41 x 16 AWG	0,26 mm	28,3 mm	766,3 kg/km	1214 kg/km	Send inquiry
L32211650	50 x 16 AWG	0,26 mm	30,4 mm	918,1 kg/km	1408 kg/km	Send inquiry
L32211661	61 x 16 AWG	0,26 mm	32,1 mm	1038 kg/km	1637 kg/km	Send inquiry
L32211403	3 x 14 AWG	0,26 mm	10,6 mm	101,2 kg/km	180 kg/km	Send inquiry
L32211404	4 x 14 AWG	0,26 mm	11,6 mm	149,9 kg/km	229 kg/km	Send inquiry
L32211405	5 x 14 AWG	0,26 mm	12,5 mm	174,5 kg/km	266 kg/km	Send inquiry
L32211407	7 x 14 AWG	0,26 mm	14,2 mm	227,8 kg/km	348 kg/km	Send inquiry
L32211409	9 x 14 AWG	0,26 mm	18 mm	326,8 kg/km	504 kg/km	Send inquiry
L32211412	12 x 14 AWG	0,26 mm	18,7 mm	399,7 kg/km	579 kg/km	Send inquiry
L32211418	18 x 14 AWG	0,26 mm	22,5 mm	570,8 kg/km	842 kg/km	Send inquiry
L32211425	25 x 14 AWG	0,26 mm	26,8 mm	772 kg/km	1131 kg/km	Send inquiry
L32211203	3 x 12 AWG	0,31 mm	12,1 mm	169,4 kg/km	256 kg/km	Send inquiry
L32211204	4 x 12 AWG	0,31 mm	13 mm	213,2 kg/km	306 kg/km	Send inquiry
L32211205	5 x 12 AWG	0,31 mm	15 mm	277,8 kg/km	400 kg/km	Send inquiry
L32211207	7 x 12 AWG	0,31 mm	17 mm	367,4 kg/km	524 kg/km	Send inquiry
L32211003	3 x 10 AWG	0,31 mm	14,9 mm	258,5 kg/km	390 kg/km	Send inquiry
L32211004	4 x 10 AWG	0,31 mm	16,8 mm	328,8 kg/km	495 kg/km	Send inquiry
L32211005	5 x 10 AWG	0,31 mm	18,2 mm	399,1 kg/km	585 kg/km	Send inquiry
L32211007	7 x 10 AWG	0,31 mm	19,6 mm	527,5 kg/km	730 kg/km	Send inquiry
L32210804	4 x 8 AWG	0,41 mm	20,7 mm	464 kg/km	741 kg/km	Send inquiry
L32210805	5 x 8 AWG	0,41 mm	23,6 mm	563,3 kg/km	933 kg/km	Send inquiry
L32210604	4 x 6 AWG	0,41 mm	26,1 mm	711,7 kg/km	1156 kg/km	Send inquiry
L32210605	5 x 6 AWG	0,41 mm	28,4 mm	852,9 kg/km	1365 kg/km	Send inquiry
L32210404	4 x 4 AWG	0,41 mm	30,7 mm	1044 kg/km	1653 kg/km	Send inquiry
L32210405	5 x 4 AWG	0,41 mm	33,6 mm	1277,3 kg/km	1974 kg/km	Send inquiry
L32210204	4 x 2 AWG	0,41 mm	34,8 mm	1532,4 kg/km	2261 kg/km	Send inquiry
L32210205	5 x 2 AWG	0,41 mm	38,2 mm	1879 kg/km	2713 kg/km	Send inquiry
