USB 2.0 RT UL/CSA
USB 2.0 cable with UL recognition, CSA approval, continuously flexible, suitable for robots

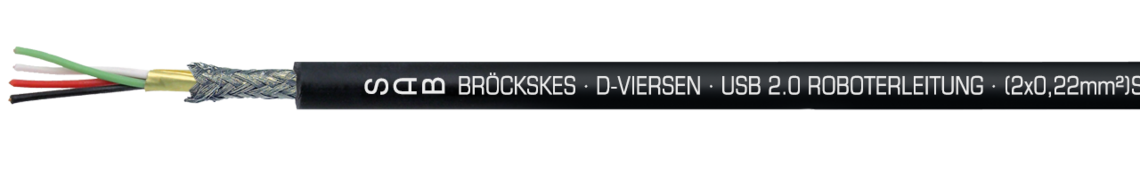

Marking for USB 2.0 RT UL/CSA with UL/CSA 06012022: SAB BRÖCKSKES · D-VIERSEN · USB 2.0 RT UL/CSA · (2 x 0,22 mm²) ST + 2 x 0,5 mm² 0601-2022 UL AWM Style 21198 80°C 300V CSA AWM I/II A/B 80°C 300V FT2 CE
Application
This cable suitable for robotic applications has a tinned copper round wire screen, is permanently flexible and has UL/CSA approval. This cable is used wherever high frequency data transmission is required, e.g. in the automotive industry and automation.
Outstanding features
- UL recognized, CSA approved
- suitable for robots
- very good oil resistance
- transmission length up to 10 m
- excellent transmission characteristics
Additional information
also possible as harnessed cable with USB type A and USB type B plug

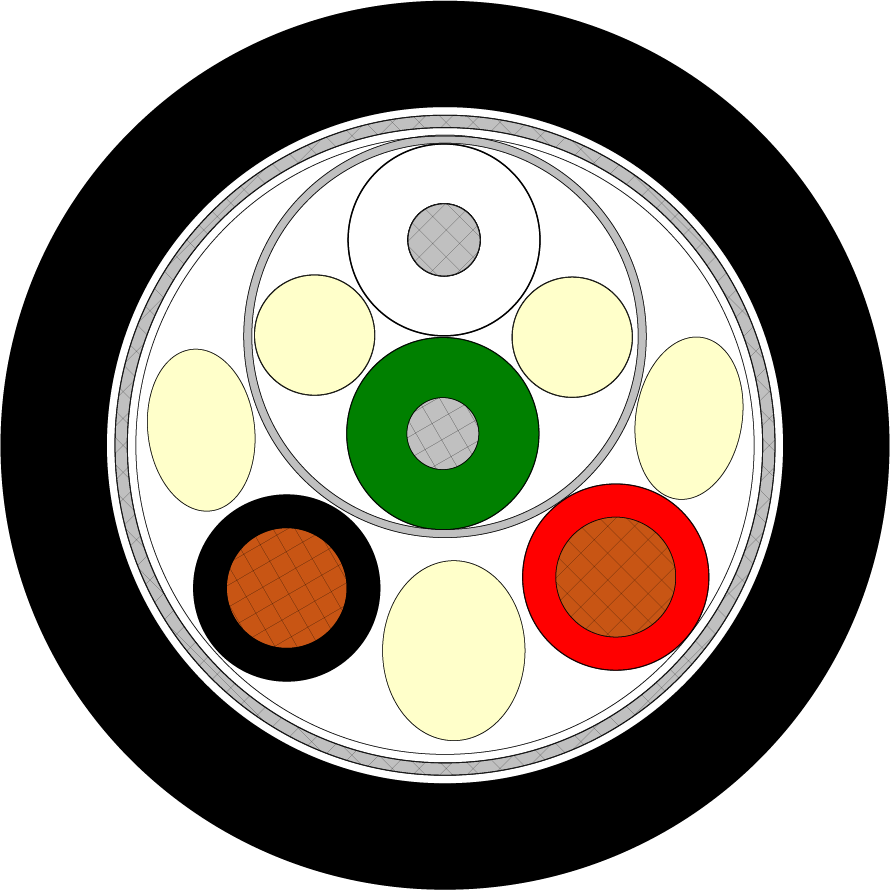

Construction
| Conductor | bare copper strands (0,50 mm²) silver-plated strands (0,22 mm²) |
|---|---|
| Insulation | SABIX® |
| Colour code | black, red (0,50 mm²), white, green (0,22 mm²) |
| Stranding | 2 x 0,22 mm² wrapped with alu foil, together with 0,5 mm² |
| Wrapping | PTFE foil |
| Screen | wrapping with tinned copper round wires |
| Wrapping | non-woven tape |
| Sheath material | PUR |
| Sheath colour | black (RAL 9005) |
bare copper strands (0,50 mm²)
silver-plated strands (0,22 mm²)
SABIX®
black, red (0,50 mm²), white, green (0,22 mm²)
2 x 0,22 mm² wrapped with alu foil, together with 0,5 mm²
PTFE foil
wrapping with tinned copper round wires
non-woven tape
PUR
black (RAL 9005)
Technical data
| Peak operating voltage | max. 350 V |
|---|---|
| Voltage UL/CSA | 300 V |
| Testing voltage | core/core 2000 V core/screen 2000 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 7,5 x d continuously flexible: 10 x d |
| Torsion Angel | up to ±180°/m |
| Temperature range VDE | fixed laying: -30/+70 °C flexible application: -5/+70°C UL/CSA: up to + 80°C |
| Oil resistance | TMPU EN 50363-10-2 + VDE 0207-363-10-2 |
| UL Style | 21198 |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
300 V
core/core 2000 V
core/screen 2000 V
fixed laying: 5 x d
flexible application: 7,5 x d
continuously flexible: 10 x d
up to ±180°/m
fixed laying: -30/+70 °C
flexible application: -5/+70°C
UL/CSA: up to + 80°C
TMPU EN 50363-10-2 + VDE 0207-363-10-2
21198
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Approx. outer-ø | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|
| L06012022 | (2x0,22) ST + 2x0,50 mm² | 7 mm | 34,3 kg/km | 64 kg/km | Send inquiry |
Other dimensions and colours are possible on request.
