USB 2.0 S

USB 2.0 cable, continuously flexible, suitable for cable tracks

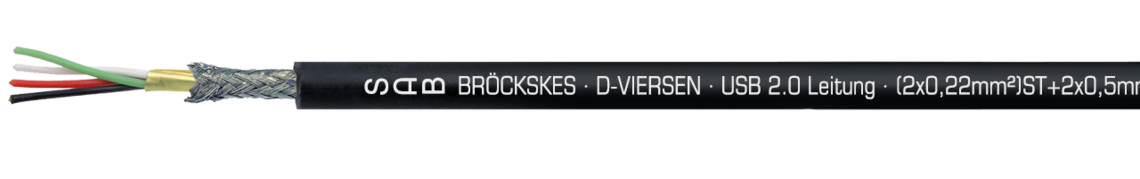

Marking for USB 2.0 S 06011022: SAB BRÖCKSKES · D-VIERSEN · USB 2.0 S · (2 x 0,22 mm²) ST + 2 x 0,5 mm² 0601-1022 CE

Marking for USB 2.0 S 06011022: SAB BRÖCKSKES · D-VIERSEN · USB 2.0 S · (2 x 0,22 mm²) ST + 2 x 0,5 mm² 0601-1022 CE

Application

Cable track suitable USB 2.0 cable with a braid of tinned copper round wires. This cable is used wherever high-frequency data transmission is required, e.g. in the automotive industry and automation.

Outstanding features

  • suitable for cable tracks
  • halogen-free
  • very good oil resistance
  • transmission length up to 10 m
  • excellent transmission characteristics

Additional information

also possible as harnessed cable with USB type A and USB type B plug

Construction

Dimension

(2 x 0,22 mm²) ST + 2 x 0,5 mm²

Conductor

bare copper strands (0,50 mm²)

silver-plated strands (0,22 mm²)

Insulation

SABIX®

Colour code

black, red (0,50 mm²), white, green (0,22 mm²)

Stranding

2 x 0,22 mm² wrapped with alu foil, together with 0,5 mm²

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR

Sheath colour

black (RAL 9005)

Dimension

(2 x 0,22 mm²) ST + 2 x 0,5 mm²

Conductor

bare copper strands (0,50 mm²)

silver-plated strands (0,22 mm²)

Insulation

SABIX®

Colour code

black, red (0,50 mm²), white, green (0,22 mm²)

Stranding

2 x 0,22 mm² wrapped with alu foil, together with 0,5 mm²

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR

Sheath colour

black (RAL 9005)

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core 600 V

core/screen 600 V

Min. bending radius

fixed laying: 5 x d

flexible application: 6 x d

continuously flexible: 7,5 x d

Temperature range VDE

fixed laying: -50/+90 °C

flexible application: -40/+90°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

PUR, TMPU EN 50363-10-2 + VDE 0207-363-10-2

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core 600 V

core/screen 600 V

Min. bending radius

fixed laying: 5 x d

flexible application: 6 x d

continuously flexible: 7,5 x d

Temperature range VDE

fixed laying: -50/+90 °C

flexible application: -40/+90°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

PUR, TMPU EN 50363-10-2 + VDE 0207-363-10-2

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Approx. outer-ø Copper figure Cable weight ≈
06011022(2x0,22) ST + 2x0,50 mm²7 mm34,1 kg/km59 kg/km Send inquiry
item no.
Dimension
Approx. outer-ø
Copper figure
Cable weight ≈
06011022
(2x0,22) ST + 2x0,50 mm²
7 mm
34,1 kg/km
59 kg/km

Other dimensions and colours are possible on request.
