USB 2.0 UL
Flexible USB 2.0 Cable with UL recognition

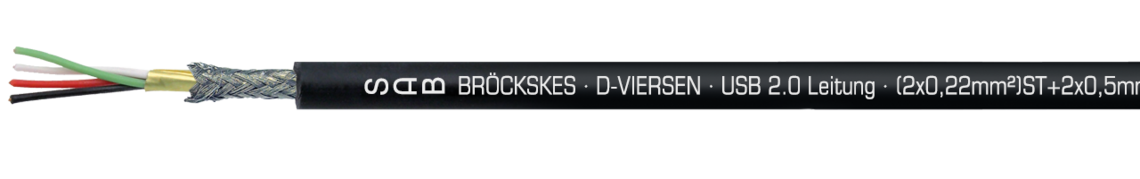

Marking example: SAB BRÖCKSKES · D-VIERSEN · USB 2.0 UL · (2 x 0,22 mm²) ST + 2 x 0,5 mm² 0601-0222 UL AWM Style 2655 80°C 300V CE
Application
USB 2.0 cable with UL approval and a maximum operating voltage of 350 V. This USB cable with a minimum bending radius of 5 x d is used wherever high frequency data transmission is required, e.g. in the automotive industry and automation.
Outstanding features
- UL recognition
- transmission length up to 10 m
- excellent transmission characteristics
- PFAS-free
Additional information

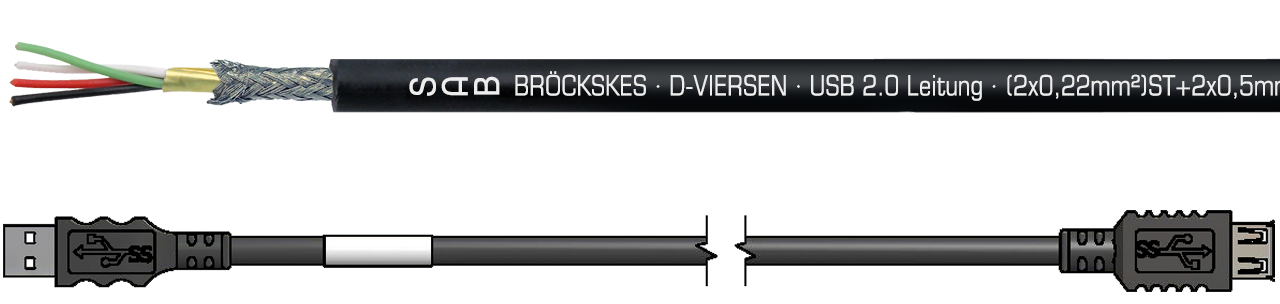

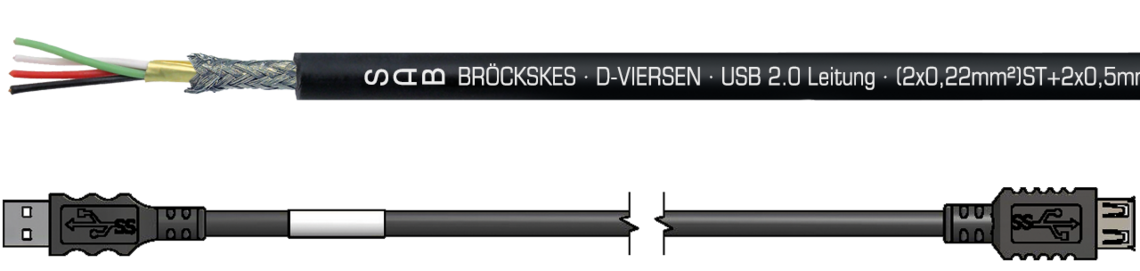

also possible as harnessed cable with USB type A and USB type B plug

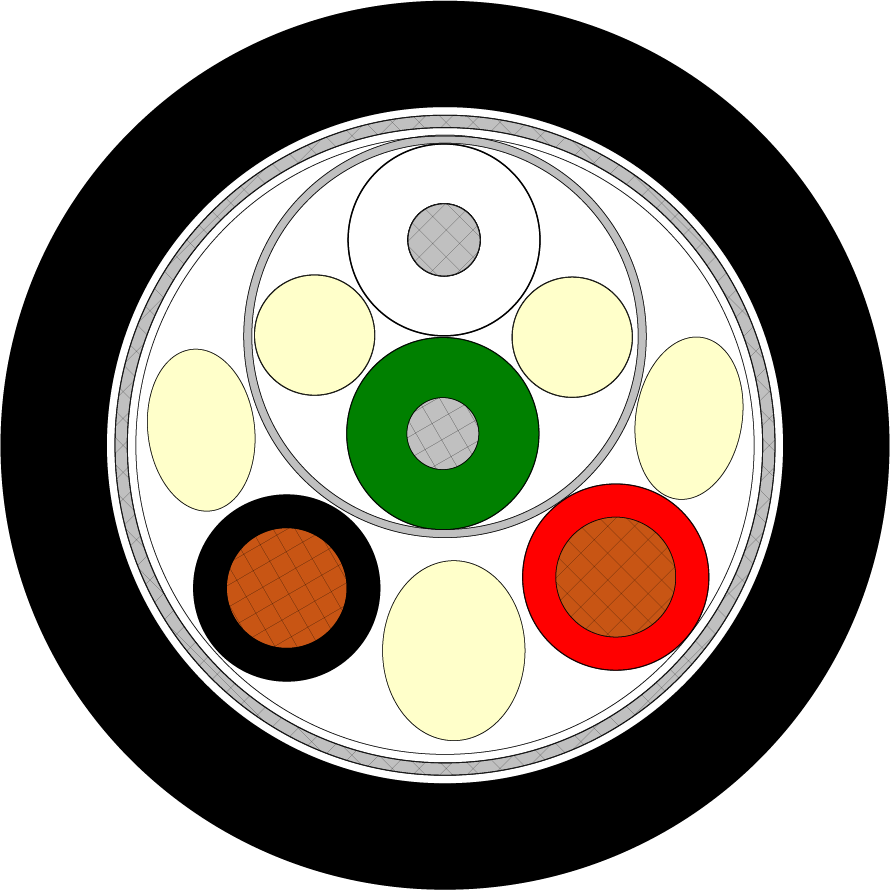

Construction
| Conductor | bare copper strands (0,50 mm²) silver-plated strands (0,22 mm²) |
|---|---|
| Insulation | SABIX® |
| Colour code | black, red (0,50 mm²), white, green (0,22 mm²) |
| Stranding | 2 x 0,22 mm² wrapped with alu foil, together with 0,5 mm² |
| Wrapping | non-woven tape |
| Screen | tinned copper braiding |
| Sheath material | PVC |
| Sheath colour | black (RAL 9005) |
bare copper strands (0,50 mm²)
silver-plated strands (0,22 mm²)
SABIX®
black, red (0,50 mm²), white, green (0,22 mm²)
2 x 0,22 mm² wrapped with alu foil, together with 0,5 mm²
non-woven tape
tinned copper braiding
PVC
black (RAL 9005)
Technical data
| Peak operating voltage | max. 350 V |
|---|---|
| Voltage UL | 300 V |
| Testing voltage | core/core: 2000 V core/screen: 2000 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d |
| Temperature range VDE | fixed laying: - 30°C / + 70°C flexible application: - 5°C / + 70°C UL: up to + 80°C |
| Oil resistance | |
| UL Style | 2655 |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
300 V
core/core: 2000 V
core/screen: 2000 V
fixed laying: 5 x d
flexible application: 10 x d
fixed laying: - 30°C / + 70°C
flexible application: - 5°C / + 70°C
UL: up to + 80°C
2655
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension |
Outer-ø ± 10% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|
| L06010222 | (2x0,22) ST + 2x0,50 mm² | 7 mm | 34 kg/km | 64 kg/km | Send inquiry |
± 10%
Other dimensions and colours are possible on request.
