USB 2.0

Flexible USB 2.0 Cable

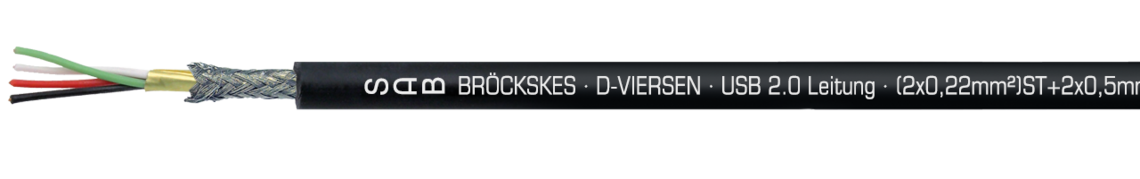

Marking for USB 2.0 06010122: SAB BRÖCKSKES · D-VIERSEN · USB 2.0 · (2 x 0,22 mm²) ST + 2 x 0,5 mm² 0601-0122 CE

Marking for USB 2.0 06010122: SAB BRÖCKSKES · D-VIERSEN · USB 2.0 · (2 x 0,22 mm²) ST + 2 x 0,5 mm² 0601-0122 CE

Application

The USB 2.0 cable is characterized by its flexibility. It is shielded with a braid of tinned copper round wires. The USB 2.0 is used wherever high frequency data transmission is required, e.g. in the automotive industry and automation.

Outstanding features

  • transmission length up to 10 m
  • excellent transmission characteristics

Additional information

also possible as harnessed cable with USB type A and USB type B plug

Construction

Conductor

bare copper strands (0,50 mm²)

silver-plated strands (0,22 mm²)

Insulation

SABIX®

Colour code

black, red (0,50 mm²), white, green (0,22 mm²)

Stranding

2 x 0,22 mm² wrapped with alu foil, together with 0,5 mm²

Wrapping

non-woven tape

Screen

tinned copper braiding

Sheath material

PVC

Sheath colour

black (RAL 9005)

Conductor

bare copper strands (0,50 mm²)

silver-plated strands (0,22 mm²)

Insulation

SABIX®

Colour code

black, red (0,50 mm²), white, green (0,22 mm²)

Stranding

2 x 0,22 mm² wrapped with alu foil, together with 0,5 mm²

Wrapping

non-woven tape

Screen

tinned copper braiding

Sheath material

PVC

Sheath colour

black (RAL 9005)

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core 600 V

core/screen 600 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: - 30°C / + 70°C

flexible application: - 5°C / + 70°C

Oil resistance

acc. to internal standard

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core 600 V

core/screen 600 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: - 30°C / + 70°C

flexible application: - 5°C / + 70°C

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Approx. outer-ø Copper figure Cable weight ≈
06010122(2x0,22) ST + 2x0,50 mm²6,8 mm34 kg/km60 kg/km Send inquiry
item no.
Dimension
Approx. outer-ø
Copper figure
Cable weight ≈
06010122
(2x0,22) ST + 2x0,50 mm²
6,8 mm
34 kg/km
60 kg/km

Other dimensions and colours are possible on request.
