USB 3.0 S

USB 3.0 cable with UL recognition, continuously flexible, suitable for cable tracks

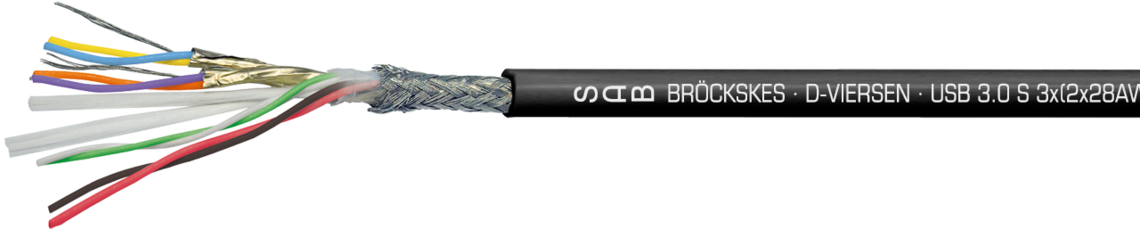

Marking for USB 3.0 S 06042098:
SAB BRÖCKSKES · D-VIERSEN · USB 3.0 S 3x(2x28AWG)ST+2x26AWG 0604-2098 UL AWM Style 20549 80°C 300V CE

Marking for USB 3.0 S 06042098: SAB BRÖCKSKES · D-VIERSEN · USB 3.0 S 3x(2x28AWG)ST+2x26AWG 0604-2098 UL AWM Style 20549 80°C 300V CE

Application

The permanently flexible USB 3.0 cable is suitable for use in cable tracks. This cable is UL approved and can be used for a temperature range of -50°C / +90°C in the unmoved state and -40°C / +90°C in the moved state (UL: up to + 80°C).

Outstanding features

  • UL recognition
  • suitable for cable tracks
  • flame retardant and self-extinguishing
  • very good oil resistance
  • transmission length up to 3 m
  • excellent transmission characteristics

Additional information

Construction

Conductor

silver-plated strands and tinned copper strands

Insulation

special polymer

Colour code

yellow, blue + orange, violet (USB 3.0), green, white (USB 2.0), red, black (power supply)

Stranding

twisted pairs and datapairs screened, all elements together

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR

Sheath colour

black (similar RAL 9005)

Conductor

silver-plated strands and tinned copper strands

Insulation

special polymer

Colour code

yellow, blue + orange, violet (USB 3.0), green, white (USB 2.0), red, black (power supply)

Stranding

twisted pairs and datapairs screened, all elements together

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR

Sheath colour

black (similar RAL 9005)

Technical data

Peak operating voltage

max. 350 V

Voltage UL

300 V

Testing voltage

Ader/Ader 2000 V · Ader/Schirm 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Temperature range VDE

UL: up to + 80°C

fixed laying: -50°C / +90 °C

flexible application: -40°C / +90 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2

Oil resistance

very good - TMPU acc. to EN 50363-10-2

UL Style

20549

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Voltage UL

300 V

Testing voltage

Ader/Ader 2000 V · Ader/Schirm 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Temperature range VDE

UL: up to + 80°C

fixed laying: -50°C / +90 °C

flexible application: -40°C / +90 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2

Oil resistance
UL Style

20549

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Approx. outer-ø Copper figure Cable weight ≈ Ohmic resistance
at 20°C max. Ω/km
28 AWG
Ohmic resistance
at 20°C max. Ω/km
26 AWG
L060420983 x (2 x 28 AWG)ST + 2 x 26 AWG6,1 mm26,5 kg/km45 kg/km223 Ω/km140 Ω/km Send inquiry
item no.
Dimension
Approx. outer-ø
Copper figure
Cable weight ≈
Ohmic resistance
at 20°C max. Ω/km
28 AWG
Ohmic resistance
at 20°C max. Ω/km
26 AWG
L06042098
3 x (2 x 28 AWG)ST + 2 x 26 AWG
6,1 mm
26,5 kg/km
45 kg/km
223 Ω/km
140 Ω/km

Other dimensions and colours are possible on request.
