PB 632

flexible PVC Profibus-DP cable

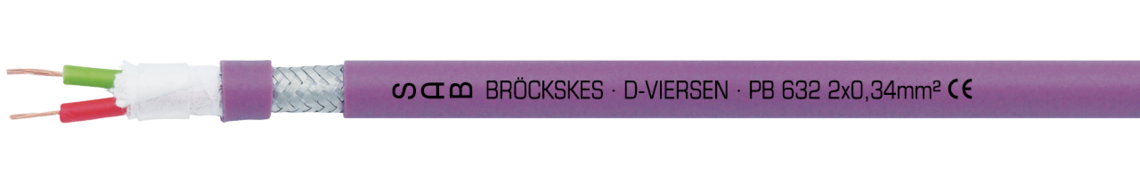

Marking for PB 632 06322341: SAB BRÖCKSKES · D-VIERSEN · PB 632 2 x 0,34 mm² CE

Marking for PB 632 06322341: SAB BRÖCKSKES · D-VIERSEN · PB 632 2 x 0,34 mm² CE

Application

The PB 632 is a flexible PVC Profibus-DP cable. It has layer stranding and pair shielding consisting of a braid of tinned copper round wires. This Profibus cable has been specially developed for communication between automation systems and decentralised peripheral devices in the field.

Outstanding features

  • flame retardant and self-extinguishing

Construction

Conductor

0,34 mm²: bare copper strands acc. to VDE 0812

1,00 mm²: bare copper strands acc. to IEC 60228, VDE 0295, class 5

Pairwise wrapping

Alu foil

Insulation

0,34 mm²: EN 50290-2-23 + VDE 0819-103 (02YI1) 1,00 mm²: PVC TI2 acc. to EN 50363-3

Colour code

red, green (0,34 mm²), brown, light blue and green-yellow earth wire (1,0 mm²)

Pairwise screening

tinned copper braiding

Stranding

in layers

Sheath material

PVC, TM2 acc. to EN 50363-4-1

Sheath colour

redlilac (RAL 4001)

Conductor

0,34 mm²: bare copper strands acc. to VDE 0812

1,00 mm²: bare copper strands acc. to IEC 60228, VDE 0295, class 5

Pairwise wrapping

Alu foil

Insulation

0,34 mm²: EN 50290-2-23 + VDE 0819-103 (02YI1) 1,00 mm²: PVC TI2 acc. to EN 50363-3

Colour code

red, green (0,34 mm²), brown, light blue and green-yellow earth wire (1,0 mm²)

Pairwise screening

tinned copper braiding

Stranding

in layers

Sheath material

PVC, TM2 acc. to EN 50363-4-1

Sheath colour

redlilac (RAL 4001)

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core: 1500V

core/screen: 1500V

Min. bending radius

12 x d

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2

Characteristic impedance

3 - 20 MHz: 150 Ω +/- 10%

Oil resistance

acc. to internal standard

For fixed installation

suitable

For flexible application

suitable

Weather resistance

medium

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core: 1500V

core/screen: 1500V

Min. bending radius

12 x d

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2

Characteristic impedance

3 - 20 MHz: 150 Ω +/- 10%

For fixed installation

suitable

For flexible application

suitable

Weather resistance

medium

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Outer-ø ± 5% Copper figure Cable weight ≈
063223412 x 0,34 mm²7,5 mm25,8 kg/km56 kg/km Send inquiry
063243412 x 0,34 mm² + 3 x 1,00 mm²10,1 mm58,8 kg/km122 kg/km Send inquiry
item no.
Dimension
Outer-ø ± 5%
Copper figure
Cable weight ≈
06322341
2 x 0,34 mm²
7,5 mm
25,8 kg/km
56 kg/km
06324341
2 x 0,34 mm² + 3 x 1,00 mm²
10,1 mm
58,8 kg/km
122 kg/km

Other dimensions and colours are possible on request.
