S PB 634
PUR Profibus-DP cable for cable tracks

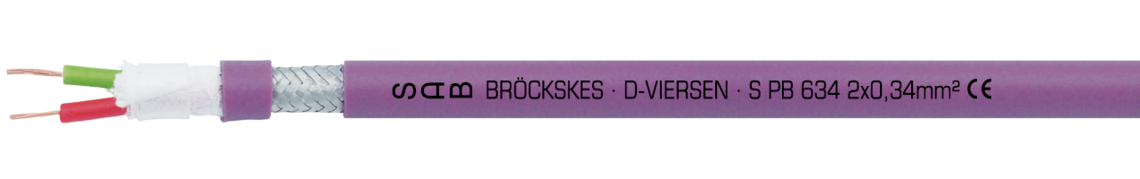

Marking for S PB 634 06342341: SAB BRÖCKSKES · D-VIERSEN · S PB 634 2 x 0,34 mm² CE
Application
The PUR Profibus-DP cable, which was specially designed for cable tracks, has a pair screen in the form of a braid of tinned copper round wires. This Profibus cable has been specially developed for communication between automation systems and decentralised peripheral devices in the field.
Outstanding features
- suitable for cable tracks
- very good oil resistance
- very good weather resistance
Construction
| Conductor | 0,34 mm²: bare copper strands acc. to VDE 0812 1,00 mm²: bare copper strands acc. to IEC 60228, VDE 0295, class 6 |
|---|---|
| Pairwise wrapping | non-woven tape/alu foil |
| Pairwise sheathing | TPE |
| Insulation | 0,34 mm²: EN 50290-2-23 + VDE 0819-103 (02YI1) 1,00 mm²: TPE |
| Colour code | red, green (0,34 mm²); brown, light blue and green-yellow earth wire (1,0 mm²) |
| Pairwise screening | tinned copper braiding |
| Stranding | in layers |
| Sheath material | PUR, TMPU acc. to DIN VDE 0282 part 10 with rough surface |
| Sheath colour | redlilac (RAL 4001) |
0,34 mm²: bare copper strands acc. to VDE 0812
1,00 mm²: bare copper strands acc. to IEC 60228, VDE 0295, class 6
non-woven tape/alu foil
TPE
0,34 mm²: EN 50290-2-23 + VDE 0819-103 (02YI1)
1,00 mm²: TPE
red, green (0,34 mm²); brown, light blue and green-yellow earth wire (1,0 mm²)
tinned copper braiding
in layers
PUR, TMPU acc. to DIN VDE 0282 part 10 with rough surface
redlilac (RAL 4001)
Technical data
| Peak operating voltage | max. 350 V |
|---|---|
| Testing voltage | core/core: 1500V core/screen: 1500V |
| Min. bending radius | 12 x d |
| Temperature range | fixed laying: -40/+80°C flexible application: -40/+80°C |
| Oil resistance | very good acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| For fixed installation | suitable |
| For flexible application | suitable |
| Application in cable tracks | recommended |
| Weather resistance | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
core/core: 1500V
core/screen: 1500V
12 x d
fixed laying: -40/+80°C
flexible application: -40/+80°C
very good acc. to EN 50363-10-2 + VDE 0207-363-10-2
suitable
suitable
recommended
very good
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Outer-ø ± 5% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|
| L06342341 | 2 x 0,34 mm² | 7,6 mm | 30,9 kg/km | 58 kg/km | Send inquiry |
| L06344341 | 2 x 0,34 mm² + 3 x 1,00 mm² | 10,2 mm | 58,8 kg/km | 108 kg/km | Send inquiry |
Other dimensions and colours are possible on request.
