SABdynamic 900 Data C

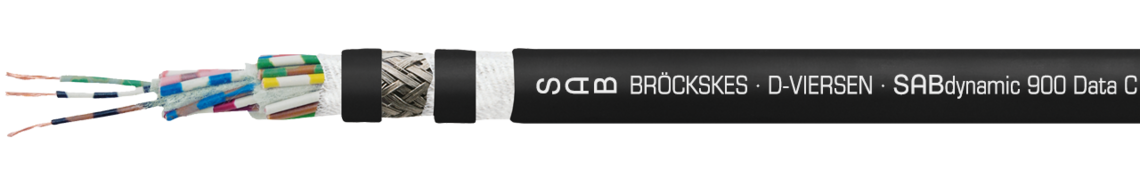

Continuously flexible SABIX®/PUR data cable, robust, oil resistant and flame retardant with coloured cores and overall copper screen
Marking example: SAB BRÖCKSKES · D-VIERSEN · SABdynamic 900 Data C 25x0,14mm² cULus AWM Style 21209 AWM I/II A/B 90°C 300V FT1 FT2 0902-2501 CE
Application
Outstanding features
- cULus recognized
- PWIS uncritical (PWIS = paint-wetting impairment substances)
- low capacity
- extremely large temperature range
- halogen-free
- high abrasion resistance
- suitable for long travel
- small bending radius
- small outer diameter
- good EMC characteristics
- PFAS free
Construction
| Conductor | bare copper strands with reference to IEC 60228, VDE 0295, class 6 |
|---|---|
| Insulation | SABIX® |
| Colour Code | with reference to DIN 47100 |
| Stranding | specially adjusted layering with non-woven tape over each layer |
| Screen | tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | PUR with mat surface |
| Sheath colour | black (RAL 9005) |
bare copper strands with reference to IEC 60228, VDE 0295, class 6
SABIX®
with reference to DIN 47100
specially adjusted layering with non-woven tape over each layer
tinned copper braiding
non-woven tape
PUR with mat surface
black (RAL 9005)
Technical Data
| Peak operating voltage | max. 350 V |
|---|---|
| Voltage cULus | 300 V |
| Testing voltage | core/core 2000 V core/screen 2000 V |
| Min. bending radius | fixed laying: 3 x d flexible application: 7,5 x d bending cycles: > 10 million |
| Temperature range | DIN VDE fixed laying: -50/+90 °C flexible application: -40/+90 °C
cULus: up to +90 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performence | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, cULus FT1, FT2 |
| Oil resistance | very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Chem. resistance | good against acids, alkalines, solvents, hydraulic liquids etc. |
| Continuous Flexibility | very good |
| Sunlight resistance | acc. to HD 605 |
| Ozone resistance | acc. to DIN EN 50396 |
| Salt water resistance | acc. to UL 1309 |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
300 V
core/core 2000 V
core/screen 2000 V
fixed laying: 3 x d
flexible application: 7,5 x d
bending cycles: > 10 million
DIN VDE
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
cULus: up to +90 °C
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, cULus FT1, FT2
very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
good against acids, alkalines, solvents, hydraulic liquids etc.
very good
acc. to HD 605
acc. to DIN EN 50396
acc. to UL 1309
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section |
Largest single wire-ø |
Outer-ø ± 10% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L09020201 | 2 x 0,14 n x mm² | 0,11 mm | 4,0 mm | 12,9 kg/km | 21 kg/km | Send inquiry |
| L09020301 | 3 x 0,14 n x mm² | 0,11 mm | 4,1 mm | 14,2 kg/km | 23 kg/km | Send inquiry |
| L09020401 | 4 x 0,14 n x mm² | 0,11 mm | 4,4 mm | 15,5 kg/km | 25 kg/km | Send inquiry |
| L09020501 | 5 x 0,14 n x mm² | 0,11 mm | 4,6 mm | 16,9 kg/km | 28 kg/km | Send inquiry |
| L09020601 | 6 x 0,14 n x mm² | 0,11 mm | 5,0 mm | 21,7 kg/km | 28 kg/km | Send inquiry |
| L09020701 | 7 x 0,14 n x mm² | 0,11 mm | 5,2 mm | 23 kg/km | 38 kg/km | Send inquiry |
| L09021201 | 12 x 0,14 n x mm² | 0,11 mm | 6,0 mm | 31,6 kg/km | 49 kg/km | Send inquiry |
| L09021801 | 18 x 0,14 n x mm² | 0,11 mm | 6,9 mm | 43,0 kg/km | 66 kg/km | Send inquiry |
| L09022501 | 25 x 0,14 n x mm² | 0,11 mm | 7,9 mm | 56,2 kg/km | 83 kg/km | Send inquiry |
| L09020202 | 2 x 0,25 n x mm² | 0,11 mm | 4,3 mm | 15,1 kg/km | 24 kg/km | Send inquiry |
| L09020302 | 3 x 0,25 n x mm² | 0,11 mm | 4,5 mm | 17,6 kg/km | 27 kg/km | Send inquiry |
| L09020402 | 4 x 0,25 n x mm² | 0,11 mm | 4,7 mm | 20,0 kg/km | 31 kg/km | Send inquiry |
| L09020502 | 5 x 0,25 n x mm² | 0,11 mm | 5,1 mm | 25,9 kg/km | 39 kg/km | Send inquiry |
| L09020602 | 6 x 0,25 n x mm² | 0,11 mm | 5,3 mm | 28,4 kg/km | 43 kg/km | Send inquiry |
| L09020702 | 7 x 0,25 n x mm² | 0,11 mm | 5,7 mm | 30,9 kg/km | 48 kg/km | Send inquiry |
| L09021202 | 12 x 0,25 n x mm² | 0,11 mm | 6,7 mm | 46,5 kg/km | 66 kg/km | Send inquiry |
| L09021802 | 18 x 0,25 n x mm² | 0,11 mm | 7,5 mm | 64,6 kg/km | 89 kg/km | Send inquiry |
| L09022502 | 25 x 0,25 n x mm² | 0,11 mm | 8,9 mm | 86,3 kg/km | 116 kg/km | Send inquiry |
| L09020203 | 2 x 0,34 n x mm² | 0,11 mm | 4,5 mm | 17,0 kg/km | 27 kg/km | Send inquiry |
| L09020303 | 3 x 0,34 n x mm² | 0,11 mm | 4,7 mm | 20,3 kg/km | 31 kg/km | Send inquiry |
| L09020403 | 4 x 0,34 n x mm² | 0,11 mm | 5,0 mm | 27,1 kg/km | 38 kg/km | Send inquiry |
| L09020503 | 5 x 0,34 n x mm² | 0,11 mm | 5,3 mm | 30,5 kg/km | 43 kg/km | Send inquiry |
| L09020603 | 6 x 0,34 n x mm² | 0,11 mm | 5,7 mm | 33,9 kg/km | 49 kg/km | Send inquiry |
| L09020703 | 7 x 0,34 n x mm² | 0,11 mm | 6,0 mm | 39,1 kg/km | 55 kg/km | Send inquiry |
| L09021203 | 12 x 0,34 n x mm² | 0,11 mm | 7,1 mm | 59,3 kg/km | 78 kg/km | Send inquiry |
| L09021803 | 18 x 0,34 n x mm² | 0,11 mm | 8,1 mm | 83,1 kg/km | 107 kg/km | Send inquiry |
| L09022503 | 25 x 0,34 n x mm² | 0,11 mm | 9,5 mm | 111,6 kg/km | 140 kg/km | Send inquiry |
| L09020205 | 2 x 0,50 n x mm² | 0,16 mm | 5,2 mm | 23,5 kg/km | 36 kg/km | Send inquiry |
| L09020305 | 3 x 0,50 n x mm² | 0,16 mm | 5,4 mm | 28,4 kg/km | 44 kg/km | Send inquiry |
| L09020405 | 4 x 0,50 n x mm² | 0,16 mm | 5,8 mm | 35,1 kg/km | 53 kg/km | Send inquiry |
| L09020505 | 5 x 0,50 n x mm² | 0,16 mm | 6,3 mm | 40,1 kg/km | 62 kg/km | Send inquiry |
| L09020605 | 6 x 0,50 n x mm² | 0,16 mm | 6,8 mm | 48,3 kg/km | 74 kg/km | Send inquiry |
| L09020705 | 7 x 0,50 n x mm² | 0,16 mm | 7,2 mm | 53,3 kg/km | 83 kg/km | Send inquiry |
| L09021205 | 12 x 0,50 n x mm² | 0,16 mm | 8,5 mm | 83,7 kg/km | 119 kg/km | Send inquiry |
| L09021805 | 18 x 0,50 n x mm² | 0,16 mm | 9,9 mm | 115,6 kg/km | 167 kg/km | Send inquiry |
| L09022505 | 25 x 0,50 n x mm² | 0,16 mm | 12,0 mm | 174,6 kg/km | 237 kg/km | Send inquiry |
| L09020207 | 2 x 0,75 n x mm² | 0,16 mm | 5,6 mm | 28,5 kg/km | 41 kg/km | Send inquiry |
| L09020307 | 3 x 0,75 n x mm² | 0,16 mm | 5,9 mm | 37,5 kg/km | 53 kg/km | Send inquiry |
| L09020407 | 4 x 0,75 n x mm² | 0,16 mm | 6,3 mm | 44,9 kg/km | 62 kg/km | Send inquiry |
| L09020507 | 5 x 0,75 n x mm² | 0,16 mm | 6,8 mm | 55,5 kg/km | 75 kg/km | Send inquiry |
| L09020607 | 6 x 0,75 n x mm² | 0,16 mm | 7,3 mm | 64,5 kg/km | 88 kg/km | Send inquiry |
| L09020707 | 7 x 0,75 n x mm² | 0,16 mm | 7,9 mm | 74,1 kg/km | 100 kg/km | Send inquiry |
| L09021207 | 12 x 0,75 n x mm² | 0,16 mm | 9,4 mm | 115,4 kg/km | 144 kg/km | Send inquiry |
| L09021807 | 18 x 0,75 n x mm² | 0,16 mm | 11,1 mm | 183,7 kg/km | 218 kg/km | Send inquiry |
| L09022507 | 25 x 0,75 n x mm² | 0,16 mm | 14,0 mm | 265,7 kg/km | 315 kg/km | Send inquiry |
cross section
wire-ø
± 10%
Other dimensions and colours are possible on request.
