SD 99 C TP ECO

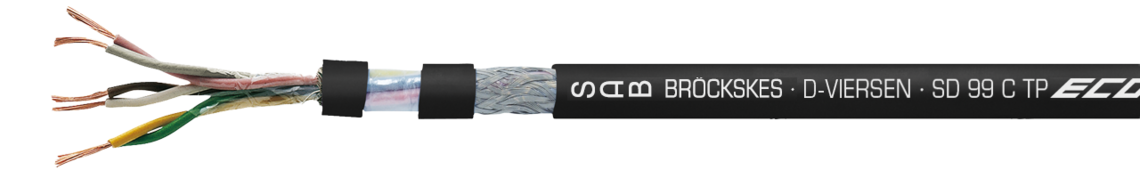

Continuously flexible paired SABIX®/PUR data cable with coloured cores and overall copper screen
SAB BRÖCKSKES · D-VIERSEN · SD 99 C TP 3x2x0,5mm2 CE
Application
Outstanding features
- low capacity
- PWIS uncritical (PWIS = paint-wetting impairment substances)
- flexible at low temperatures
- halogen-free
- high abrasion resistance
- small bending radius
- small outer diameter
- good EMC characteristics
- good transmission rates and crosstalk attenuation
- PFAS free
Construction
| Conductor | bare copper strands, extra fine wires |
|---|---|
| Insulation | SABIX® |
| Colour code | with reference to DIN 47100 |
| Stranding | cores twisted to pairs, pairs twisted in specially adjusted layering with non-woven tape over each layer |
| Wrapping | non-woven tape |
| Screen | tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface |
| Sheath colour | black (RAL 9005) |
bare copper strands, extra fine wires
SABIX®
with reference to DIN 47100
cores twisted to pairs, pairs twisted in specially adjusted layering with non-woven tape over each layer
non-woven tape
tinned copper braiding
non-woven tape
PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface
black (RAL 9005)
Technical Data
| Peak operating voltage | max. 350 V acc. to VDE 0812 |
|---|---|
| Testing voltage | core/core 1500 V core/screen 1200 V |
| Torsion angle | ± 60°/1 m |
| Min. bending radius | fixed laying: 3 x d flexible application: 7,5 x d |
| Temperature range | fixed laying: -50/+90 °C flexible application: -40/+90 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Oil resistance | very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Chem. resistance | good against acids, alkalines, solvents, hydraulic liquids etc. |
| Continuous Flexibility | very good |
| Sunlight resistance | acc. to HD 605 |
| Ozone resistance | acc. to DIN EN 50396 |
| Salt water resistance | acc. to UL 1309 |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V acc. to VDE 0812
core/core 1500 V
core/screen 1200 V
± 60°/1 m
fixed laying: 3 x d
flexible application: 7,5 x d
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
acc. to IEC 60754-1 + VDE 0482-754-1
very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
good against acids, alkalines, solvents, hydraulic liquids etc.
very good
acc. to HD 605
acc. to DIN EN 50396
acc. to UL 1309
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of pairs x cross section |
Largest single wire-ø |
Outer-ø ± 10% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L09890314 | 3 x 2 x 0,14 mm² | 0,11 mm | 4,8 mm | 21,8 kg/km | 30 kg/km | Send inquiry |
| L09891014 | 10 x 2 x 0,14 mm² | 0,11 mm | 7,6 mm | 49,7 kg/km | 69 kg/km | Send inquiry |
| L09890225 | 2 x 2 x 0,25 mm² | 0,11 mm | 4,8 mm | 23,6 kg/km | 33 kg/km | Send inquiry |
| L09890425 | 4 x 2 x 0,25 mm² | 0,11 mm | 6,3 mm | 36,9 kg/km | 49 kg/km | Send inquiry |
| L09890525 | 5 x 2 x 0,25 mm² | 0,11 mm | 6,8 mm | 43,7 kg/km | 60 kg/km | Send inquiry |
| L09890625 | 6 x 2 x 0,25 mm² | 0,11 mm | 7,0 mm | 51,1 kg/km | 68 kg/km | Send inquiry |
| L09890434 | 4 x 2 x 0,34 mm² | 0,11 mm | 6,8 mm | 46,1 kg/km | 58 kg/km | Send inquiry |
| L09890250 | 2 x 2 x 0,50 mm² | 0,11 mm | 6,0 mm | 36,9 kg/km | 50 kg/km | Send inquiry |
| L09890350 | 3 x 2 x 0,50 mm² | 0,11 mm | 6,8 mm | 48,5 kg/km | 65 kg/km | Send inquiry |
cross section
wire-ø
± 10%
Other dimensions and colours are possible on request.
