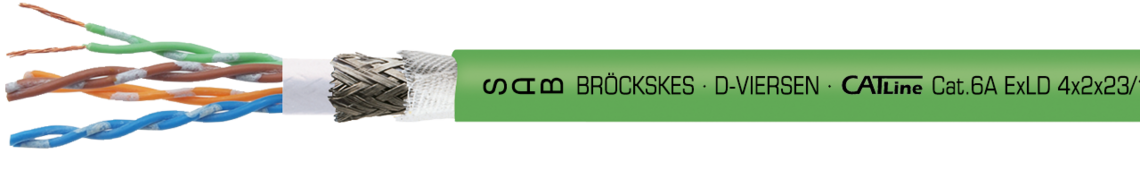

CATLine CAT 6A ExLD
CAT 6A Gigabit Ethernet cable for potentially explosive areas with UL recognition
marking example: SAB BRÖCKSKES · D-VIERSEN · CATLine Cat.6A ExLD 4x2x23/1AWG 1639-9015 UL AWM Style 20549 80°C 300V CE
Application
A decisive characteristic of this cable is an excellent longitudinal tightness. It avoids ignition discharges as well as dangerous zone entrainment of flammable gases to areas that are not exposed to explosion hazards. The cable corresponds to the requirements according to standard IEC EN 60079-14 and is appropriate for the application in potentially explosive areas in order to avoid zone entrainment according to IEC EN 60079-14 chapter 9.3 appendix E.
Outstanding features
- low temperature resistant
- flame retardant and self-extinguishing
- oil- and chemical resistant
- Gigabit Ethernet 10GBase-T
- suitable for PoE
- excellent longitudinal tightness
- zone entrainment is avoided
- PFAS free
Construction
| Conductor | bare copper strands, single wire |
|---|---|
| Insulation | SABIX® |
| Colour code | EIA/TIA T568 + IEC 708-1 |
| Stranding | twisted to pairs |
| Screen | alu foil and tinned copper braiding optical coverage ≥ 85% |
| Wrapping | non-woven tape |
| Sheath material | PUR |
| Sheath colour | green (similar RAL 6018) |
bare copper strands, single wire
SABIX®
EIA/TIA T568 + IEC 708-1
twisted to pairs
alu foil and tinned copper braiding optical coverage ≥ 85%
non-woven tape
PUR
green (similar RAL 6018)
Technical data
| Peak operating voltage | max. 90 V |
|---|---|
| Voltage UL | 300 V |
| Testing voltage | core/core 2000 V core/screen 2000 V |
| Min. bending radius | after installation: 4 x d during installation: 8 x d |
| Temperature range | UL: up to +80 °C fixed laying: -60/+80 °C flexible application: -30/+80 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Oil resistance | TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2, IRM 902, 168 h, 100 °C |
| MUD resistance | very good - acc. to IEC 60092-360, IEC 61892-4, NEK TS 606 |
| Sunlight and weather resistance | very good - acc. to HD 605 (VDE 0276-605) |
| Insulation resistance | min. 5GΩ x km at + 20 °C |
| Characteristic impedance | 100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-10-2 (CAT 6A) |
| Application | acc. to IEC 60079-14 chapter 9.3 und appendix E to avoid zone entrainment |
| Construction products regulation | Euroclass Eca acc. to EN 50575 is fulfilled |
| UL Style | 20549 |
| Schadstofffrei | gemäß RoHS-Richtlinie der Europäischen Union |
max. 90 V
300 V
core/core 2000 V
core/screen 2000 V
after installation: 4 x d
during installation: 8 x d
UL: up to +80 °C
fixed laying: -60/+80 °C
flexible application: -30/+80 °C
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
TMPU
acc. to EN 50363-10-2 + VDE 0207-363-10-2, IRM 902, 168 h, 100 °C
very good - acc. to IEC 60092-360, IEC 61892-4, NEK TS 606
very good - acc. to HD 605 (VDE 0276-605)
min. 5GΩ x km at + 20 °C
100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-10-2 (CAT 6A)
acc. to IEC 60079-14 chapter 9.3 und appendix E to avoid zone entrainment
Euroclass Eca acc. to EN 50575 is fulfilled
20549
gemäß RoHS-Richtlinie der Europäischen Union
Dimensions
| item no. | Type | Dimension |
outer-ø ± 0,3 mm | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C acc. to VDE 0812 max. Ω/km | |
|---|---|---|---|---|---|---|---|
| L16399015 | CATLine CAT 6A ExLD | 4 x 2 x 23/1 AWG | 8,9 mm | 48,1 kg/km | 94 kg/km | 64,6 Ω/km | Send inquiry |
± 0,3 mm
at 20°C acc. to VDE 0812
max. Ω/km
Other dimensions and colours are possible on request.
