CATLine CAT 7A S

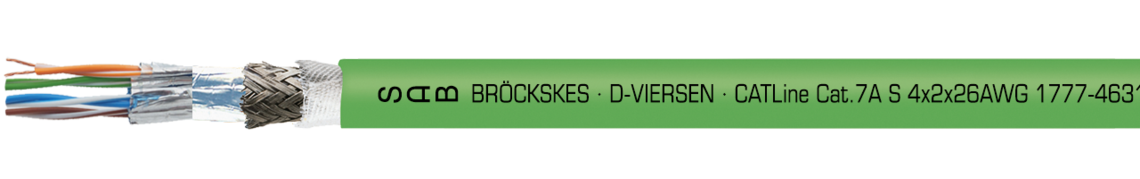

CAT 7A Gigabit Ethernet cable, suitable for cable tracks with UL recognition, CSA approval

Marking for CATLine CAT 7A S: SAB BRÖCKSKES · D-VIERSEN · CATLine Cat.7A S 4x2x26AWG 1777-4631 UL AWM Style 20549 80°C 300V CSA AWM I/II A/B 80°C 300V FT2 CE

Marking for CATLine CAT 7A S: SAB BRÖCKSKES · D-VIERSEN · CATLine Cat.7A S 4x2x26AWG 1777-4631 UL AWM Style 20549 80°C 300V CSA AWM I/II A/B 80°C 300V FT2 CE

Application

Our CAT 7A Industrial Ethernet cables with cable track are suitable for flexible use under harsh industrial conditions, e.g. high temperatures, contamination with oils and greases, aggressive chemicals or humidity, especially in automation. The oil resistant Category 7 cable with UL/CSA is flame retardant & self-extinguishing.

Outstanding features

  • UL recognized, CSA approved
  • suitable for cable tracks
  • halogen-free
  • flame retardant and self-extinguishing
  • very good oil resistance
  • good against aggressive chemicals

Additional information

  • +90°C on request
  • also possible as harnessed cable with M12 or RJ 45 plug

Construction

Dimension

4 x 2 x 26 AWG + 4 x 2 x 24 AWG

Conductor

bare copper strands, fine wires

Insulation

special polymer

Colour code

white-blue/blue, white-orange/orange, white-green/green, white-brown/brown

Stranding

cores twisted to pairs, pairs screened with foil, pairs together

Screen

aluminized non-woven tape and tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR

Sheath colour

green (similar RAL 6018)

Dimension

4 x 2 x 26 AWG + 4 x 2 x 24 AWG

Conductor

bare copper strands, fine wires

Insulation

special polymer

Colour code

white-blue/blue, white-orange/orange, white-green/green, white-brown/brown

Stranding

cores twisted to pairs, pairs screened with foil, pairs together

Screen

aluminized non-woven tape and tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR

Sheath colour

green (similar RAL 6018)

Technical data

Peak operating voltage

max. 90 V

Voltage UL/CSA

300 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 15 x d

Temperature range

VDE fixed laying: -40°C/+70°C

VDE flexible application: -40°C/+70°C

UL: up to + 80°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

UL Horizontal Flame Test FT2

Oil resistance

TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Characteristic impedance (100 MHz)

100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency

with reference to EN 50288-9-2 + VDE 0819-9-2 / CAT 7A

Flexibility

very good

UL Style

20549

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 90 V

Voltage UL/CSA

300 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 15 x d

Temperature range

VDE fixed laying: -40°C/+70°C

VDE flexible application: -40°C/+70°C

UL: up to + 80°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

UL Horizontal Flame Test FT2

Oil resistance

TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Characteristic impedance (100 MHz)

100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency

with reference to EN 50288-9-2 + VDE 0819-9-2 / CAT 7A

Flexibility

very good

UL Style

20549

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Approx. core-ø Outer-ø ± 5% Copper figure Cable weight ≈
177746314 x 2 x 26 AWG1,5 mm8,5 mm38,5 kg/km81 kg/km Send inquiry
177744314 x 2 x 24 AWG1,6 mm10,4 mm46,6 kg/km101 kg/km Send inquiry
item no.
Dimension
Approx. core-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
17774631
4 x 2 x 26 AWG
1,5 mm
8,5 mm
38,5 kg/km
81 kg/km
17774431
4 x 2 x 24 AWG
1,6 mm
10,4 mm
46,6 kg/km
101 kg/km

Other dimensions and colours are possible on request.
