CATLine XL
Class D / Class E - Ethernet cable, suitable for cable chains with UL/CSA approval

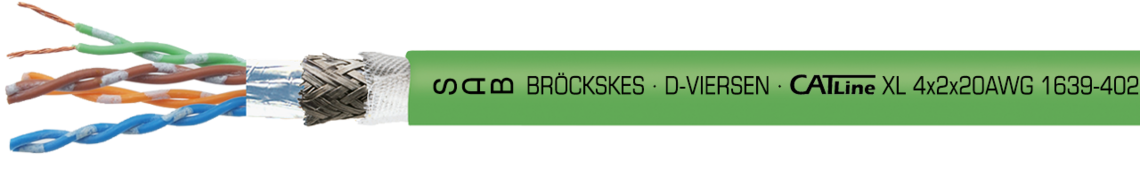

marking example: SAB BRÖCKSKES · D-VIERSEN · CATLine XL 4x2x20AWG 1639-4020 UL AWM Style 20549 80°C 300V CSA AWM I/II A/B 80°C 300V FT2 CE
Application
With the new flexible CATLine XL types with reduced insertion loss, a product family is available that has been tested and validated beyond the normative limit of 100 metres. In practical tests, these cables were also able to transmit distances of over 190 m (CATLine XL / Class D - 100 MBit) or over 130 m (CATLine XL / Class E - 1GBit) - confirmed by measurements with BERT systems.
Outstanding features
- suitable for cable chains
- flame retardend and self-extinguishing
- suitable for PoE
- PFAS-free
Construction
| Conductor | bare copper wire, fine stranded |
|---|---|
| Insulation | special polymer |
| Colour code | white-blue/blue, white-orange/orange, white-green/green, white-brown/brown |
| Stranding | cores twisted in pairs, pairs together class E: Pairs foil-shielded |
| Screen | braiding of tinned round copper wires |
| Wrapping | non-woven tape |
| Sheath Material | PUR |
| Sheath colour | green (similar RAL 6018) |
bare copper wire, fine stranded
special polymer
white-blue/blue, white-orange/orange, white-green/green, white-brown/brown
cores twisted in pairs, pairs together
class E: Pairs foil-shielded
braiding of tinned round copper wires
non-woven tape
PUR
green (similar RAL 6018)
Technical data
| Peak operating voltage | max. 90 V |
|---|---|
| Voltage UL/CSA | 300 V |
| Testing voltage | core/core 2000 V core/screen 2000 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d permanently flexible: 15 x d |
| Temperature range | UL/CSA: up to +80 °C fixed laying: -50/+90 °C flexible application: -40/+90 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 UL Horizontal Flame Test FT2 |
| Oil resistance | TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Characteristic impedance | 100Ω ± 10 Ω CATline XL / Class D, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-2-2 / CAT 5
CATline XL / Class E, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-5-2 / CAT 6 |
| Sunlight and weather resistance | very good - acc. to HD 605 (VDE 0276-605) |
| Flexibility | very good |
| UL Style | 20549 |
| Absence of harmful substances | acc. to RoHS directive of the European Union, see chapter N "Technical Data" |
max. 90 V
300 V
core/core 2000 V
core/screen 2000 V
fixed laying: 5 x d
flexible application: 10 x d
permanently flexible: 15 x d
UL/CSA: up to +80 °C
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing
acc. to IEC 60332-1-2 + VDE 0482-332-1-2
UL Horizontal Flame Test FT2
TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
100Ω ± 10 Ω
CATline XL / Class D, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-2-2 / CAT 5
CATline XL / Class E, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-5-2 / CAT 6
very good - acc. to HD 605 (VDE 0276-605)
very good
20549
acc. to RoHS directive of the European Union, see chapter N "Technical Data"
Dimensions
| item no. | Type | Dimension |
Outer-ø ± 10% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L15394020 | CATLine XL / Class D | 4 x 2 x 20 AWG | 11,6 mm | 100,7 kg/km | 158 kg/km | Send inquiry |
| L16394020 | CATLine XL / Class E | 4 x 2 x 20 AWG | 15,7 mm | 144,3 kg/km | 266 kg/km | Send inquiry |
± 10%
Other dimensions and colours are possible on request.
