S SBP 684 Move

SafetyBUS p cable for flexible applications

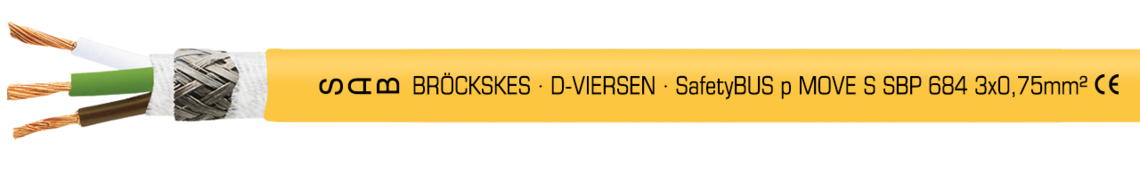

Marking for S SBP 684 Move 06843754: SAB BRÖCKSKES · D-VIERSEN · SafetyBUS p MOVE S SBP 684 3 x 0,75 mm² CE and current meter marking from 1 m up to 999 m

Marking for S SBP 684 Move 06843754: SAB BRÖCKSKES · D-VIERSEN · SafetyBUS p MOVE S SBP 684 3 x 0,75 mm² CE and current meter marking from 1 m up to 999 m

Application

Unlike the SBP 680 (fixed installation), the S SBP 684 Move is a SafetyBUS p cable for flexible use. It is recommended for use in drag chains and is also suitable for permanently flexible use. SafetyBUS p is an open bus system for serial transmission of safety data. It is used in mechanical engineering, in the automotive industry and in process engineering

Outstanding features

  • suitable for cable tracks
  • halogen-free
  • very good oil resistance

Construction

Conductor

bare copper strands acc. to DIN VDE class 6

Insulation

acc. to EN 50290-2-23 + VDE 0819-103 (02YI1)

Colour code

acc. to DIN 47100

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR

Sheath colour

signal yellow (RAL 1003)

Conductor

bare copper strands acc. to DIN VDE class 6

Insulation

acc. to EN 50290-2-23 + VDE 0819-103 (02YI1)

Colour code

acc. to DIN 47100

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR

Sheath colour

signal yellow (RAL 1003)

Technical data

Item number

0684-3754

Peak operating voltage

max. 350 V

Testing voltage

core/core: 1500 V

core/screen: 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Temperature range

-40/+80°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

very good - PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Characteristic impedance

at 1 MHz: 100 - 120 Ω

Application in cable tracks

recommended

Continuosly flexible application

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Item number

0684-3754

Peak operating voltage

max. 350 V

Testing voltage

core/core: 1500 V

core/screen: 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Temperature range

-40/+80°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

very good - PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Characteristic impedance

at 1 MHz: 100 - 120 Ω

Application in cable tracks

recommended

Continuosly flexible application

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of pairs x cross section
n x 2 x mm²
Outer-ø Copper figure Cable weight ≈ Dimension
068437543 x 0,75 mm²7,8 ± 0,4 mm43,2 kg/km74 kg/km3 x 0,75 mm² Send inquiry
item no.
No. of pairs x cross section
n x 2 x mm²
Outer-ø
Copper figure
Cable weight ≈
Dimension
06843754
3 x 0,75 mm²
7,8 ± 0,4 mm
43,2 kg/km
74 kg/km
3 x 0,75 mm²

Other dimensions and colours are possible on request.
