SBP 680

SafetyBUS p cable for fixed installation

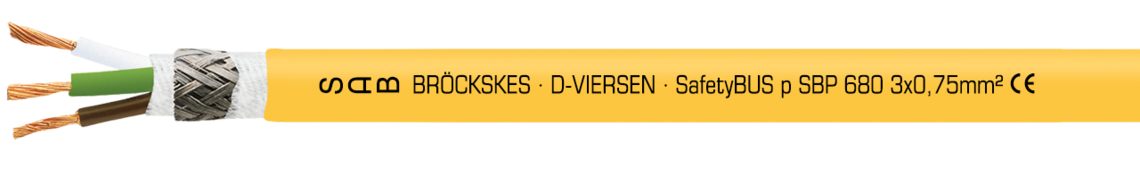

Marking for SBP 680 06803754: SAB BRÖCKSKES · D-VIERSEN · SafetyBUS p SBP 680 3 x 0,75 mm² CE and current meter marking from 1 m up to 999 m

Marking for SBP 680 06803754: SAB BRÖCKSKES · D-VIERSEN · SafetyBUS p SBP 680 3 x 0,75 mm² CE and current meter marking from 1 m up to 999 m

Application

The oil-resistant SafetyBUS p cable, which is only suitable for fixed installation, has a minimum bending radius of 5 x d and a maximum peak operating voltage of 350 V. SafetyBUS p is an open bus system for serial transmission of safety data. The cable is used in mechanical engineering, in the automotive industry and in process engineering.

Outstanding features

  • halogen-free
  • very good oil resistance

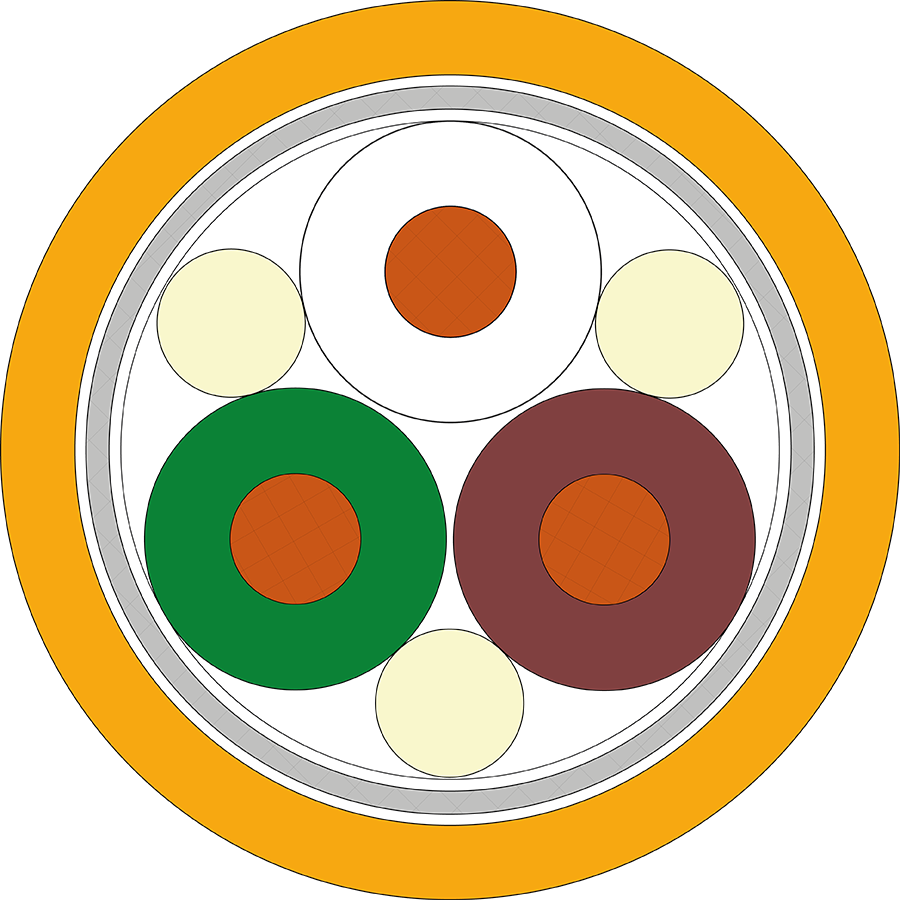

Construction

Conductor

bare copper strands acc. to DIN VDE class 5

Insulation

acc. to EN 50290-2-23 + VDE 0819-103 (02YI1)

Colour code

with reference to DIN 47100

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR

Sheath colour

signal yellow (RAL 1003)

Conductor

bare copper strands acc. to DIN VDE class 5

Insulation

acc. to EN 50290-2-23 + VDE 0819-103 (02YI1)

Colour code

with reference to DIN 47100

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR

Sheath colour

signal yellow (RAL 1003)

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core: 1500 V

core/screen: 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

-40/+80°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Characteristic impedance at 1 MHz

100 - 120 Ω

Application in cable tracks

not recommended

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core: 1500 V

core/screen: 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

-40/+80°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Characteristic impedance at 1 MHz

100 - 120 Ω

Application in cable tracks

not recommended

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Outer-ø Copper figure Cable weight ≈
L068037543 x 0,75 mm²7,8 ± 0,4 mm43,2 kg/km74 kg/km Send inquiry
item no.
Dimension
Outer-ø
Copper figure
Cable weight ≈
L06803754
3 x 0,75 mm²
7,8 ± 0,4 mm
43,2 kg/km
74 kg/km

Other dimensions and colours are possible on request.
