Sensor cable
with M12 plug connector

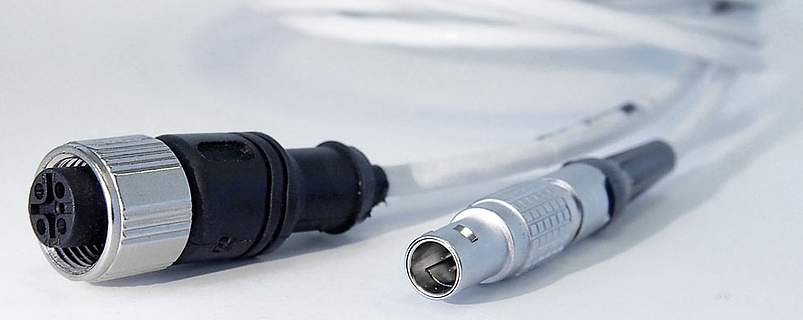

Sensor cable with M12 plug connector
Application
Harnessed sensor cable with a round plug connector and a M12 connector for the linking of the sensor (for example pressure sensor) with a module. The harnessed product can be designed according to the individual application. There are different plug and cable types available.
Additional information
Among others the following cable types belong to our delivery program:
- sheath material up to + 125°C or + 150°C, silicone free and flexible
- different cable lengths
- various sheath colours and marking
- different dimensions, sections and number of cores (dependant on plug)
You can choose from different plug connectors:
- M12 connector
- Lemo round connector
- ODU round connector
Construction
| conductor | tinned copper strands |
|---|---|
| core insulation | FEP |
| screen | tinned copper braiding |
| outer sheath | FEP |
| sheath colour | white (RAL 1013) |
tinned copper strands
FEP
tinned copper braiding
FEP
white (RAL 1013)
Technical data
| temperature range | flexible application: -55°C/+180°C fixec laying: -90°C/+180°C short-time use: +205°C |
|---|---|
| special features | silicone free, chemical resistance |
flexible application: -55°C/+180°C
fixec laying: -90°C/+180°C
short-time use: +205°C
silicone free, chemical resistance
