Special cable

with male connector and socket plug assembly

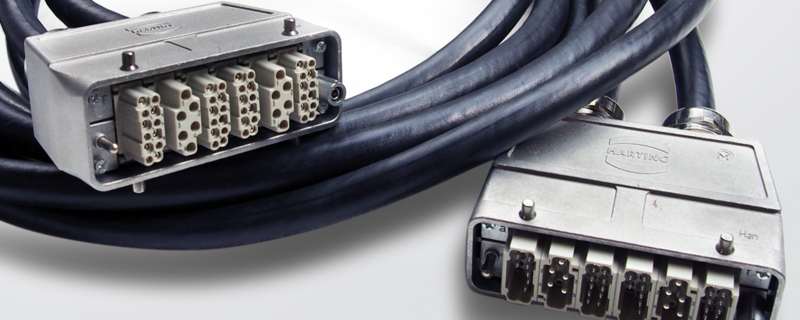

Special cable with port connector and socket pin connector

Special cable with port connector and socket pin connector

Application

Another industrial sector in which SAB cable harnessing products are used is the robot industry. We offer a variety of product solutions which are adapted to the individual application conditions, for example a cable harness product for the control of the robot welding tongs. For this cable harness a divided, abrasion resistant servo cable is used that is connected to heavy industrial connectors with a double cable outlet.

Additional information

Further cable types are possible on request for example:

  • flexible Besilen cables to -40°C / heat resistant Besilen up to +220°C
  • sheath material up to 150°C, silicone-free
  • different cable lengths
  • various sheath colours and marking
  • different dimensions, sections and number of cores (dependant on plug)



You can choose from different plug connectors:

  • Harting plug connector
  • Weidmüller plug connector
  • Wieland plug connector



Cable variations for example:

  • (4 x 2 x 0,25 mm²)D + 2 x (2 x 0,50 mm²D) + (5 x 0,50 mm²)D + (5 x 1,5 mm²)D
  • (4 x 2 x 0,25 mm²)D + 2 x (2 x 0,50 mm²D) + (5 x 0,50 mm²)D + (4 x 0,75 mm²)D

Construction

Connection ends

S1: port connector



S2: socket pin connector

Connection ends

S1: port connector



S2: socket pin connector

Customized cable assembly according to your wishes.
