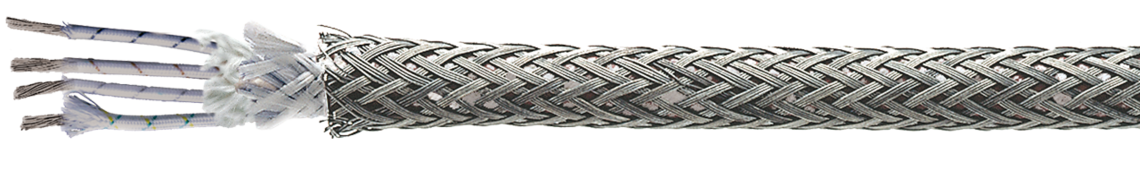

Heat resistant connection cable
connection cable with excellent temperature resistance, +400 °C
Application
High-temperature resistant connection cable for use e.g. in metallurgy and rolling mill technology in the steel industry. The extremely heat-resistant cable can be used at temperatures up to max. +400°C.
Outstanding features
- halogen - free
- excellent heat resistance
- flame resistant
Additional information
Other dimensions on request!
Construction
| Conductor: | nickel-plated copper strands |
|---|---|
| Insulation | glass fibre |
| Impregnation | PU-lacquer |
| Colour code | brown, black, grey, green-yellow tracer in external glass fibre braiding |
| Stranding | cores together |
| Braiding | glass fibre |
| Armouring | stainless steel wire armouring (VA) |
nickel-plated copper strands
glass fibre
PU-lacquer
brown, black, grey, green-yellow tracer in external glass fibre braiding
cores together
glass fibre
stainless steel wire armouring (VA)
Technical data
| Nominal voltage | Uo/U 300/500 V |
|---|---|
| Testing voltage | 2500 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d |
| Temperature range | fixed laying: max. +400°C flexible application: max. +400°C |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 300/500 V
2500 V
fixed laying: 5 x d
flexible application: 10 x d
fixed laying: max. +400°C
flexible application: max. +400°C
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section |
Largest single wire-ø | max. outer-ø | Copper figure | Cable weight ≈ |
Outer-ø ± 10% | |
|---|---|---|---|---|---|---|---|
| L32869039 | 4 x 2,50 mm² | 0,25 mm | 10,4 mm | 96,0 kg/km | 239 kg/km | 10.4 | Send inquiry |
| L32869040 | 4 x 4,00 mm² | 0,30 mm | 12,8 mm | 153,6 kg/km | 349 kg/km | 12.8 | Send inquiry |
| L32869066 | 3 x 2,50 mm² | 0,25 mm | 9,5 mm | 72,0 kg/km | 190 kg/km | 9,5 | Send inquiry |
cross section
wire-ø
± 10%
Other dimensions and colours are possible on request.
