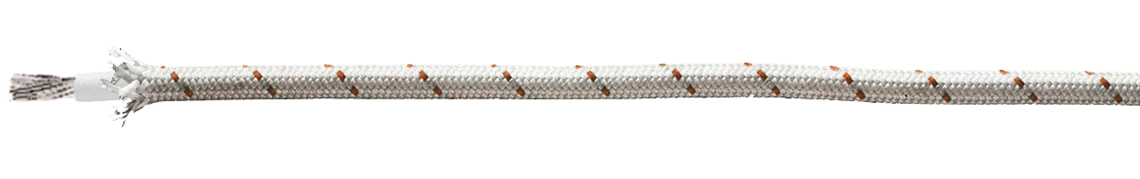

Special single conductor

glass fibre insulated strands with excellent temperature resistance, +400 °C

Application

High temperature resistant single core with glass fibre insulated strands for use at extreme temperatures up to max. +400°C.

Outstanding features

  • excellent heat resistance
  • flame resistant

Additional information

Single conductor also in different dimensions on request!

Construction

Conductor

nickel-plated copper strands

Wrapping

multiple wrapping with mica tape

Braiding

glass fibre

Impregnation

PTFE impregnating lacquer

Identification

red tracer thread in external screen

Conductor

nickel-plated copper strands

Wrapping

multiple wrapping with mica tape

Braiding

glass fibre

Impregnation

PTFE impregnating lacquer

Identification

red tracer thread in external screen

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

2200 V

Min. bending radius

5 x d

Temperature range

fixed laying: max. +400°C

flexible application: max. +400°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

2200 V

Min. bending radius

5 x d

Temperature range

fixed laying: max. +400°C

flexible application: max. +400°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Approx. outer-ø Copper figure Cable weight ≈
328690351 x 185,000,40 mm23,7 mm1776,0 kg/km1855 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Approx. outer-ø
Copper figure
Cable weight ≈
32869035
1 x 185,00
0,40 mm
23,7 mm
1776,0 kg/km
1855 kg/km

Other dimensions and colours are possible on request.
