SAB Kabel

USB 3.0 RT

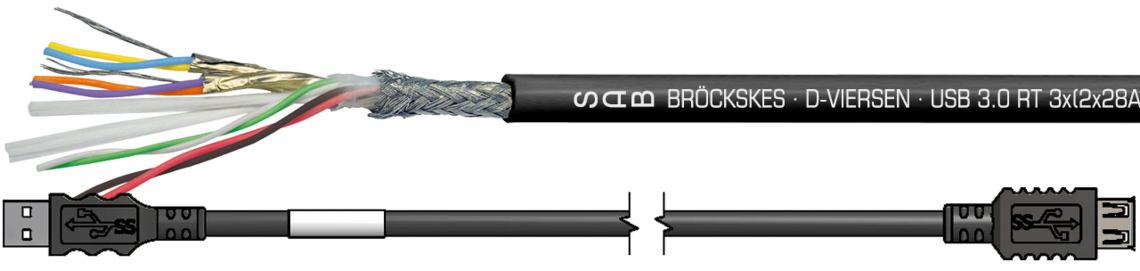

USB 3.0 cable with UL recognition, continuously flexible, suitable for robots

Marking for USB 3.0 RT 06043098:
SAB BRÖCKSKES · D-VIERSEN · USB 3.0 RT 3x(2x28AWG)ST+2x26AWG 0604-3098 UL AWM Style 20549 80°C 300V  CE

Marking for USB 3.0 RT 06043098: SAB BRÖCKSKES · D-VIERSEN · USB 3.0 RT 3x(2x28AWG)ST+2x26AWG 0604-3098 UL AWM Style 20549 80°C 300V CE

Application

Robot-compatible USB 3.0 cable with UL approval for permanently flexible use in robots. In addition to a braid of tinned copper round wires, the cable has a fleece and a PUR jacket.

Outstanding features

  • UL recognition
  • suitable for robots
  • flame retardant and self-extinguishing
  • very good oil resistance
  • transmission length up to 3 m
  • excellent transmission characteristics

Additional information

  • for transmission lengths more than 3 m, please contact us
  • also possible as harnessed cable with USB type A and USB type B plug



Construction

Conductor

silver-plated strands and tinned copper strands

Insulation

special polymer

Colour code

yellow, blue + orange, violet (USB 3.0), green, white (USB 2.0), red, black (power supply)

Stranding

twisted pairs and datapairs screened, all elements together

Wrapping

netting tape + non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR

Sheath colour

black (similar RAL 9005)

Conductor

silver-plated strands and tinned copper strands

Insulation

special polymer

Colour code

yellow, blue + orange, violet (USB 3.0), green, white (USB 2.0), red, black (power supply)

Stranding

twisted pairs and datapairs screened, all elements together

Wrapping

netting tape + non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR

Sheath colour

black (similar RAL 9005)

Technical data

Peak operating voltage

max. 350 V

Voltage UL

300 V

Testing voltage

core/core 2000 V - core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 15 x d

Torsion angle

up to ± 360°/m

Temperature range VDE

UL: up to + 80°C

fixed laying: -50°C / +90 °C

flexible application: -40°C / +90 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2

Oil resistance

very good, TMPU acc. to EN 50363-10-2

UL Style

20549

Schadstofffrei

acc. to RoHS directive of the European Union, see page N/17

Peak operating voltage

max. 350 V

Voltage UL

300 V

Testing voltage

core/core 2000 V - core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 15 x d

Torsion angle

up to ± 360°/m

Temperature range VDE

UL: up to + 80°C

fixed laying: -50°C / +90 °C

flexible application: -40°C / +90 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2

Oil resistance

very good, TMPU acc. to EN 50363-10-2

UL Style

20549

Schadstofffrei

acc. to RoHS directive of the European Union, see page N/17

Dimensions

item no.

dimension

approx. outer-ø

copper figure

cable weight ca.

060430983 x (2 x 28 AWG)ST + 2 x 26 AWG6,4 mm28,1 kg/km50 kg/km223140 Send inquiry
item no.
dimension
approx. outer-ø
copper figure
cable weight ca.
06043098
3 x (2 x 28 AWG)ST + 2 x 26 AWG
6,4 mm
28,1 kg/km
50 kg/km
223
140

Other dimensions and colours are possible on request.
