Data / POF cables
POW-LWL and hybrid cables for data transmission

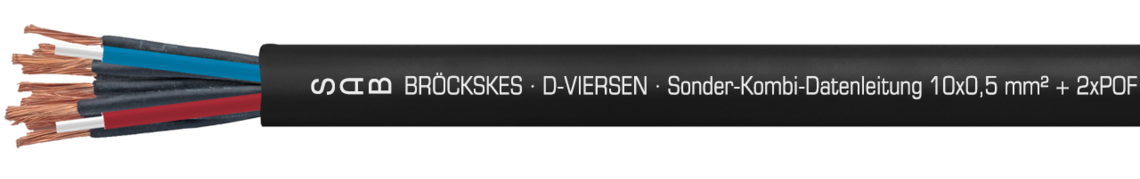

POW-LWL and hybrid cable
Application
The data/ POF cables are designed for a good electromagnetic characteristics signal transmission for installation in switch boxes and wind energy plants. The copper cable is used for the transmission of the temperature signals that are used for the control of the operating temperature with the help of a resistance thermometer.
Construction
| Conductor | 2 x POF + 10 x 0,50 mm² 4 x POF + 19 x 1,00 mm²: bare copper strands, fine wires acc. to IEC 60228, VDE 0295 |
|---|---|
| POF - polymer optical fibre | 2 x POF: blue, red 4 x POF: black cores with consecutive numbers 6 x POF black: black cores with consecutive numbers 6 x POF coloured: black, blue, red, white, green, orange 8 x POF: black cores with consecutive numbers |
| Insulation copper conductors | YA, thermoplastic material, TI2 acc. to EN 50363-3 + VDE 0207-363-3 |
| Colour code copper conductors | 2 x POF + 10 x 0,50 mm² 4 x POF + 19 x 1,00 mm²: black cores with consecutive numbers without green-yellow earth wire |
| Stranding | 2 x POF + 10 x 0,50 mm² 4 x POF + 19 x 1,00 mm²: POF and cores in layers
6 x POF black 6 x POF coloured 8 x POF: POF in layers with non-woven tape wrapping |
| Wrapping | 4 x POF + 19 x 1,00 mm²: non-woven tape |
| Sheath material | 2 x POF + 10 x 0,50 mm² 4 x POF + 19 x 1,00 mm² 6 x POF black 6 x POF coloured: YM, thermoplastic material, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1
8 x POF: thermoplastic material |
| Sheath colour | black (RAL 9005) |
2 x POF + 10 x 0,50 mm²
4 x POF + 19 x 1,00 mm²:
bare copper strands, fine wires acc. to IEC 60228, VDE 0295
2 x POF: blue, red
4 x POF: black cores with consecutive numbers
6 x POF black: black cores with consecutive numbers
6 x POF coloured: black, blue, red, white, green, orange
8 x POF: black cores with consecutive numbers
YA, thermoplastic material, TI2 acc. to EN 50363-3 + VDE 0207-363-3
2 x POF + 10 x 0,50 mm²
4 x POF + 19 x 1,00 mm²:
black cores with consecutive numbers without green-yellow earth wire
2 x POF + 10 x 0,50 mm²
4 x POF + 19 x 1,00 mm²:
POF and cores in layers
6 x POF black
6 x POF coloured
8 x POF:
POF in layers with non-woven tape wrapping
4 x POF + 19 x 1,00 mm²:
non-woven tape
2 x POF + 10 x 0,50 mm²
4 x POF + 19 x 1,00 mm²
6 x POF black
6 x POF coloured:
YM, thermoplastic material, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1
8 x POF:
thermoplastic material
black (RAL 9005)
Technical data
| Peak operating voltage | 2 x POF + 10 x 0,50 mm² 4 x POF + 19 x 1,00 mm²: max. 350 V |
|---|---|
| Testing voltage | 2 x POF + 10 x 0,50 mm² 4 x POF + 19 x 1,00 mm²: core/core 1500 V |
| Min. bending radius | 7,5 x d |
| Temperature range | fixed laying: -30°C / +70°C flexible application: -5°C / +70°C |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Oil resistance | |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
2 x POF + 10 x 0,50 mm²
4 x POF + 19 x 1,00 mm²:
max. 350 V
2 x POF + 10 x 0,50 mm²
4 x POF + 19 x 1,00 mm²:
core/core 1500 V
7,5 x d
fixed laying: -30°C / +70°C
flexible application: -5°C / +70°C
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
acc. to RoHS directive of the European Union
Dimensions
| item no. | No. of cores |
Nominal cross section | Outer-ø ± 5% | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C acc. to VDE 0812 max. Ω/km | |
|---|---|---|---|---|---|---|---|
| 2xPOF + 10x0,50mm² | 10 + 2 POF | 0,50 mm² | 9,5 mm | 48,0 kg/km | 121 kg/km | 39,0 | Send inquiry |
| 4xPOF + 19x1,00mm² | 19 + 4 POF | 1,00 mm² | 14,9 mm | 128,4 kg/km | 293 kg/km | 19,5 | Send inquiry |
| 6xPOF black | 6 POF | - | 8,7 mm | - | 70 kg/km | - | Send inquiry |
| 6xPOF coloured | 6 POF | - | 8,7 mm | - | 70 kg/km | - | Send inquiry |
| 8xPOF | 8 POF | - | 10,1 mm | - | 93 kg/km | - | Send inquiry |
| . | Send inquiry |
section
at 20°C acc. to VDE 0812
max. Ω/km
Other dimensions and colours are possible on request.
