S CB 628
Halogen-free CAN-bus cable for cable tracks with UL recognition

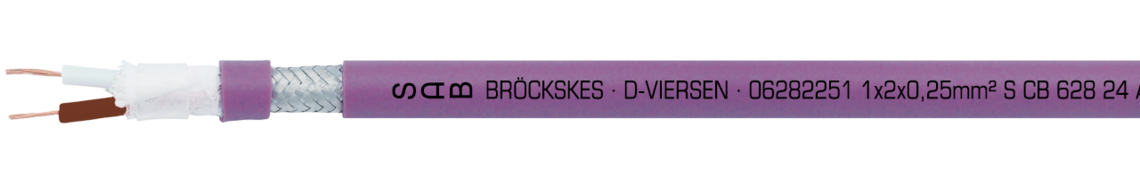

Marking example: SAB BRÖCKSKES · D-VIERSEN · 06282251 1 x 2 x 0.25 mm² S CB 628 24 AWG/1pr UL AWM Style 20233 80°C 300V CE
Application
This halogen-free CAN bus cable for cable tracks with UL approval has a very good flexibility and a very good weather resistance. The highly flexible cable is recommended for use in cable tracks.
Outstanding features
- UL recognition
- suitable for cable tracks
- halogen-free
- flame retardant and self-extinguishing
- very good oil resistance
- good chemical resistance
- very good weather resistance
- PFAS-free
Construction
| Conductor | bare copper strands, extra fine wires |
|---|---|
| Insulation | PE, 2YI1 acc. to EN 50290-2-23 + VDE 0819-103 |
| Colour code | with reference to DIN 47100 |
| Inner sheath (nature) | SABIX® |
| Screen | tinned copper braiding |
| Sheath material | PUR, TMPU acc. to EN 50363-10-2 with rough surface |
| Sheath colour | redlilac (RAL 4001) |
| Wrapping | non-woven tape |
bare copper strands, extra fine wires
PE, 2YI1 acc. to EN 50290-2-23 + VDE 0819-103
with reference to DIN 47100
SABIX®
tinned copper braiding
PUR, TMPU acc. to EN 50363-10-2 with rough surface
redlilac (RAL 4001)
non-woven tape
Technical data
| Peak operating voltage | max. 350 V |
|---|---|
| Voltage UL | 300 V |
| Testing voltage | core/core: 2000V core/screen: 2000V |
| Min. bending radius | 7,5 x d |
| Radiation resistance | 5 x 10^7 cJ/kg |
| Temperature range | UL up to +80°C fixed laying: -40/+70 °C flexible application: -40/+70 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Oil resistance | very good - acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Chem. resistance | good against acids, alkalines, solvents, hydraulic liquids etc. |
| Characteristic impedance | 120 Ω (95 - 140 Ω) |
| Flexibility | very good |
| Application in cable tracks | recommended |
| Weather resistance | very good |
| UL Style | 20233 |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
300 V
core/core: 2000V
core/screen: 2000V
7,5 x d
5 x 10^7 cJ/kg
UL up to +80°C
fixed laying: -40/+70 °C
flexible application: -40/+70 °C
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
very good - acc. to EN 50363-10-2 + VDE 0207-363-10-2
good against acids, alkalines, solvents, hydraulic liquids etc.
120 Ω (95 - 140 Ω)
very good
recommended
very good
20233
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension |
Outer-ø ± 10% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|
| L06282251 | 2 x 0,25 mm² | 7,9 mm | 20,2 kg/km | 77 kg/km | Send inquiry |
| L06282341 | 2 x 0,34 mm² | 8,3 mm | 22,9 kg/km | 84 kg/km | Send inquiry |
| L06282501 | 2 x 0,50 mm² | 8,7 mm | 29 kg/km | 81 kg/km | Send inquiry |
| L06284251 | 2 x 2 x 0,25 mm² | 9,1 mm | 27,9 kg/km | 98 kg/km | Send inquiry |
| L06284341 | 2 x 2 x 0,34 mm² | 9,6 mm | 32,7 kg/km | 105 kg/km | Send inquiry |
| L06284501 | 2 x 2 x 0,50 mm² | 10,6 mm | 44,9 kg/km | 115 kg/km | Send inquiry |
± 10%
Other dimensions and colours are possible on request.
