SABIX® CB 624 FRNC C1
Halogen-free, flame retardant CAN-Bus cable acc. to NF C 32-070 C1

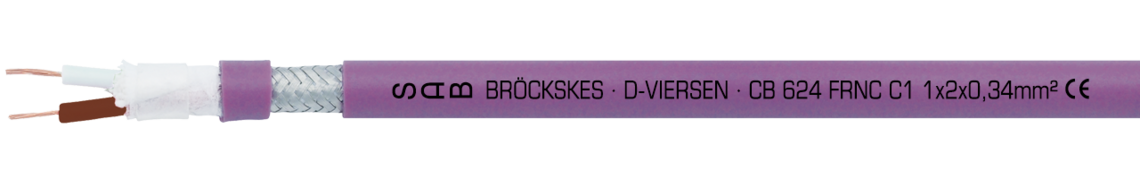

Marking example: SAB BRÖCKSKES · D-VIERSEN · SABIX CB 624 FRNC C1 2 x 2 x 0,25 mm² CE
Application
The halogen-free and flame-retardant CAN bus cable according to NF C 32-070 C1 has good flexibility and is suitable for a temperature range of -30/+90°C. The cable is used for fast data transmission and for fast data exchange in power supply chains.
Outstanding features
- halogen-free
- no flame propagation
- fast data transmission
- NF C 32-070 C1
- PFAS-free
Construction
| Conductor | bare copper strands acc. to VDE 0812 |
|---|---|
| Insulation | SABIX® |
| Colour code | with reference to DIN 47100 |
| Wrapping | non-woven tape |
| Screen | tinned copper braiding |
| Sheath material | SABIX® |
| Sheath colour | redlilac (RAL 4001) |
bare copper strands acc. to VDE 0812
SABIX®
with reference to DIN 47100
non-woven tape
tinned copper braiding
SABIX®
redlilac (RAL 4001)
Technical data
| Peak operating voltage | max. 350 V |
|---|---|
| Testing voltage | core/core: 1500V core/screen: 1200V |
| Min. bending radius | 7,5 x d |
| Temperature range | fixed laying: -30/+90 °C flexible application: -20/+90 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | no flame propagation |
| Corrosiveness of conflagration gases | in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases |
| Smoke density | acc. to IEC 61034 + VDE 0482-1034 |
| Characteristic impedance | 120 Ω (95 - 140 Ω) |
| Flexibility | good |
| Application in cable tracks | not recommended |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
core/core: 1500V
core/screen: 1200V
7,5 x d
fixed laying: -30/+90 °C
flexible application: -20/+90 °C
acc. to IEC 60754-1 + VDE 0482-754-1
no flame propagation
acc. to IEC 60332-3-24 + IEC 60332-3-25 category C resp. D
in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
acc. to IEC 61034 + VDE 0482-1034
120 Ω (95 - 140 Ω)
good
not recommended
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Copper figure | Cable weight ≈ |
Outer-ø ± 10% | |
|---|---|---|---|---|---|
| L66242251 | 2 x 2 x 0,25 mm² | 42,7 kg/km | 94 kg/km | 9,0 mm | Send inquiry |
| L66242341 | 1 x 2 x 0,34 mm² | 31,0 kg/km | 73 kg/km | 7,7 mm | Send inquiry |
| L66244501 | 2 x 2 x 0,50 mm² | 82,6 kg/km | 153 kg/km | 11,4 mm | Send inquiry |
± 10%
Other dimensions and colours are possible on request.
