SABIX® PB 630 FRNC

halogen-free, flame retardant Profibus-DP cable

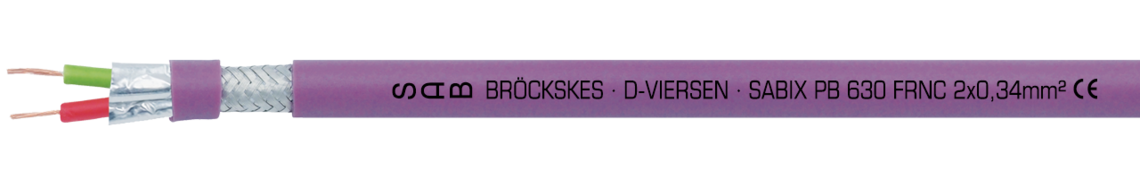

Marking for SABIX PB 630 FRNC 66302341: SAB BRÖCKSKES · D-VIERSEN · SABIX PB 630 FRNC 2 x 0,34 mm² CE

Marking for SABIX PB 630 FRNC 66302341: SAB BRÖCKSKES · D-VIERSEN · SABIX PB 630 FRNC 2 x 0,34 mm² CE

Application

The halogen-free and flame-retardant Profibus-DP cable has a peak operating voltage of max. 350 V and a minimum bending radius of 12 x d. This Profibus version, optimized in terms of speed and low installation costs, was specially developed for communication between automation systems and decentralized peripheral devices in the field.

Outstanding features

  • halogen-free
  • no flame propagation
  • flame retardant and self-extinguishing
  • good weather resistance

Construction

Conductor

bare copper strands acc. to VDE 0812

Insulation

acc. to EN 50290-2-23 + VDE 0819-103 (02YI1)

Colour code

red, green

Stranding

in layers

Screen

alu foil and tinned copper braiding

Sheath material

SABIX®

Sheath colour

redlilac (RAL 4001)

Conductor

bare copper strands acc. to VDE 0812

Insulation

acc. to EN 50290-2-23 + VDE 0819-103 (02YI1)

Colour code

red, green

Stranding

in layers

Screen

alu foil and tinned copper braiding

Sheath material

SABIX®

Sheath colour

redlilac (RAL 4001)

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core: 1500V

core/screen: 1500V

Min. bending radius

12 x d

Temperature range

fixed laying: -40/+80°C

flexible application: -30/+80°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation: acc. to IEC 60332-3-24 + IEC 60332-3-25 Cat. C resp. D, see chapter N

„Technical Data“



Flame retardant: and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

n compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

very low

Characteristic impedance 3 - 20 MHz

150 Ω +/- 10%

For fixed installation

suitable

For flexible application

not suitable

Weather resistance

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core: 1500V

core/screen: 1500V

Min. bending radius

12 x d

Temperature range

fixed laying: -40/+80°C

flexible application: -30/+80°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation: acc. to IEC 60332-3-24 + IEC 60332-3-25 Cat. C resp. D, see chapter N

„Technical Data“



Flame retardant: and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

n compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

very low

Characteristic impedance 3 - 20 MHz

150 Ω +/- 10%

For fixed installation

suitable

For flexible application

not suitable

Weather resistance

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Outer-ø ± 5% Copper figure Cable weight ≈
L663023412 x 0,34 mm²7,5 mm30,4 kg/km62 kg/km Send inquiry
item no.
Dimension
Outer-ø ± 5%
Copper figure
Cable weight ≈
L66302341
2 x 0,34 mm²
7,5 mm
30,4 kg/km
62 kg/km

Other dimensions and colours are possible on request.
