SL 859 C

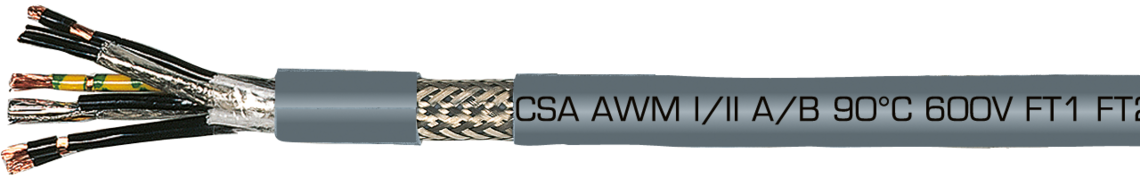

PVC servo cable with overall copper screen

Application

The PVC servo cable with overall copper screen can be used, for example, as motor connection cable of pitch drives.

Construction

Conductor

tinned copper strands

Insulation

PVC

Colour code

black cores with consecutive numbers and a green-yellow earth wire

Stranding

1,0 mm² twisted to pairs

Screen

pairs wrapped with tinned copper braid

Inner sheath

pairs with PVC, colour: grey (RAL 7000)

Stranding

specially adjusted layering

Wrapping

foil

Screen

tinned copper braiding

Sheath material

PVC

Sheath colour

grey (RAL 7000)

Conductor

tinned copper strands

Insulation

PVC

Colour code

black cores with consecutive numbers and a green-yellow earth wire

Stranding

1,0 mm² twisted to pairs

Screen

pairs wrapped with tinned copper braid

Inner sheath

pairs with PVC, colour: grey (RAL 7000)

Stranding

specially adjusted layering

Wrapping

foil

Screen

tinned copper braiding

Sheath material

PVC

Sheath colour

grey (RAL 7000)

Technical data

Peak operating voltage

300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 2000 V

core/screen 1000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

DIN VDE

fixed laying: -30°C/+70°C

flexible application: -5°C/+70°C

UL/CSA: up to +90°C

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 2000 V

core/screen 1000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

DIN VDE

fixed laying: -30°C/+70°C

flexible application: -5°C/+70°C

UL/CSA: up to +90°C

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Outer-ø ± 5% Copper figure Cable weight ≈ Ohmic resistance
at 20°C max.
xxxxxxxx4 x (2 x 1,0 mm²) + 4 x 10,0 mm²23,9 mm671,9 kg/km945 kg/km20,0 Ω/km / 1,95 Ω/km Send inquiry
item no.
No. of cores x
cross section
Outer-ø ± 5%
Copper figure
Cable weight ≈
Ohmic resistance
at 20°C max.
xxxxxxxx
4 x (2 x 1,0 mm²) + 4 x 10,0 mm²
23,9 mm
671,9 kg/km
945 kg/km
20,0 Ω/km / 1,95 Ω/km

Other dimensions and colours are possible on request.
