SL 893 C
Low capacity PUR incremental encoder and feedback cable with overall copper screen

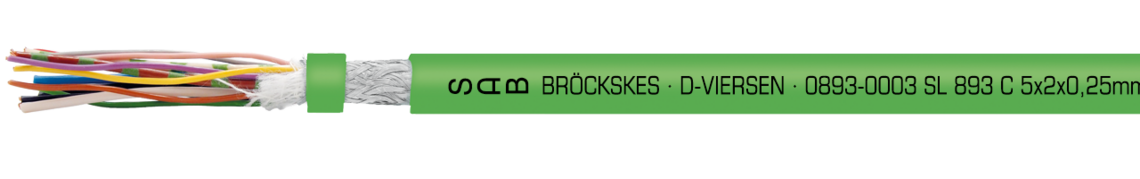

Marking example: SAB BRÖCKSKES · D-VIERSEN · 0893-0003 SL 893 C 5x2x0,25mm²+2x0,50 mm² DESINA cULus AWM Style 20233 I/II A/B 80°C 300V FT1 FT2 CE
Application
Outstanding features
- cULus recognized
- low capacity construction
- good EMC characteristics
- high flexibility
- suitable for cable tracks
- very good oil resistance
- long service life
- adhesion-free installation
- halogen-free
- PWIS uncritical (PWIS = paint-wetting impairment substances)
- DESINA® colours
- PFAS-free
Additional information
- suitable for resolvers, encoders and position signaling cable
Construction
| Conductor | bare copper strands with reference to VDE 0812 + IEC 60228, VDE 0295, class 6 |
|---|---|
| Insulation | special polymer |
| Colour code | coloured |
| Stranding | cores/pairs twisted together in layer |
| Screen | depending on construction: wrapped with tinned copper braiding |
| Inner Sheath | depending on construction: special polymer |
| Wrapping | non-woven tape or foil |
| Screen | tinned copper braiding |
| Wrapping | non-woven tape or foil |
| Sheath material | PUR |
| Sheath colour | green RAL 6018) or orange (RAL 2003) |
bare copper strands with reference to VDE 0812 + IEC 60228, VDE 0295, class 6
special polymer
coloured
cores/pairs twisted together in layer
depending on construction:
wrapped with tinned copper braiding
depending on construction:
special polymer
non-woven tape or foil
tinned copper braiding
non-woven tape or foil
PUR
green RAL 6018) or orange (RAL 2003)
Technical data
| Peak operating voltage | 30 V (UL AWM Style 20236) or 300 V (UL AWM Style 20233) |
|---|---|
| Testing voltage | core/core 600 V (at 30 V) core/screen 600 V (at 30 V) core/core 2000 V (at 300 V) core/screen 2000 V (at 300 V) |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d |
| Temperature range | DIN VDE fixed laying: -50/+90 °C flexible application: -40/+90 °C cULus: up to +80°C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, cUL FT1, FT2 |
| Oil resistance | very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Chem. resistance | good against acids, alkalines, solvents, hydraulic liquids etc. |
| Weather resistance | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
30 V (UL AWM Style 20236) or 300 V (UL AWM Style 20233)
core/core 600 V (at 30 V)
core/screen 600 V (at 30 V)
core/core 2000 V (at 300 V)
core/screen 2000 V (at 300 V)
fixed laying: 5 x d
flexible application: 10 x d
DIN VDE
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
cULus: up to +80°C
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, cUL FT1, FT2
very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
good against acids, alkalines, solvents, hydraulic liquids etc.
very good
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Peak operating voltage | Sheath colour | Outer-ø | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|---|
| L08930001 | 2 x 2 x 0,15 mm² + 2 x 0,38 mm² | 30 V | green | 6,8 ± 0,3 mm | 46,9 kg/km | 62 kg/km | Send inquiry |
| L08930002 | 2 x 2 x 0,20 mm² + 2 x 0,38 mm² | 30 V | green | 6,8 ± 0,3 mm | 34,9 kg/km | 57 kg/km | Send inquiry |
| L08930003 | 5 x 2 x 0,25 mm² + 2 x 0,50 mm² | 300 V | green | 8,1 ± 0,3 mm | 57,3 kg/km | 85 kg/km | Send inquiry |
| L08930004 | (2 x 0,14 mm²) C + 6 x 2 x 0,14 mm² + 2 x 0,50 mm² | 300 V | green | 8,8 ± 0,3 mm | 64,2 kg/km | 94 kg/km | Send inquiry |
| L08930005 | 3 x 2 x 0,14 mm² + 2 x 0,38 mm² | 30 V | green | 7,0 ± 0,3 mm | 49,6 kg/km | 67 kg/km | Send inquiry |
| L08930006 | 4 x 2 x 0,14 mm² + 4 x 0,50 mm² | 300 V | green | 8,5 ± 0,3 mm | 56,9 kg/km | 104 kg/km | Send inquiry |
| L08930007 | 4 x 2 x 0,25 mm² + 2 x 0,50 mm² | 300 V | orange | 8,8 ± 0,3 mm | 54,7 kg/km | 93 kg/km | Send inquiry |
| L08930008 | 4 x 2 x 0,25 mm² + 2 x 1,00 mm² | 300 V | orange | 8,2 ± 0,3 mm | 63,4 kg/km | 93 kg/km | Send inquiry |
| L08930009 | 4 x 2 x 0,38 mm² + 4 x 0,50 mm² | 30 V | green | 8,9 ± 0,3 mm | 71,8 kg/km | 106 kg/km | Send inquiry |
| L08930010 | 3 x (2 x 0,14 mm²) D + 4 x 0,14 mm² + 4 x 0,22 mm² + 2 x 0,50 mm² | 30 V | green | 9,6 ± 0,3 mm | 72,1 kg/km | 108 kg/km | Send inquiry |
Other dimensions and colours are possible on request.
