CC 500 B

PVC connection cable with coloured cores

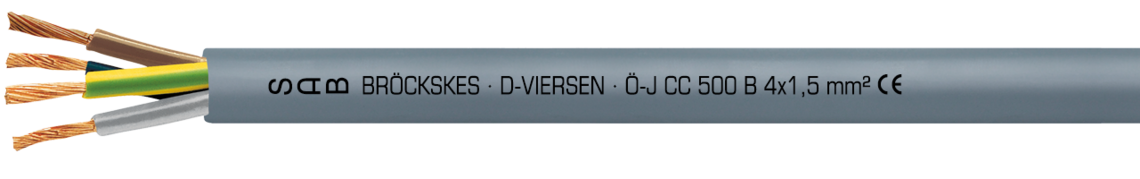

Marking for CC 500 B 02050510: SAB BRÖCKSKES · D-VIERSEN · Ö-J CC 500 B 5 x 1,0 mm² CE

Marking for CC 500 B 02050510: SAB BRÖCKSKES · D-VIERSEN · Ö-J CC 500 B 5 x 1,0 mm² CE

Application

CC 500 B is a PVC connection cable with coloured cores and a small bending radius which is also flexible. It is recommended for use in control devices like in the construction of service cabinets, machine tools, data processing, packaging machines, textile and wood working machine construction, and cleansing appliances.

Outstanding features

  • flexible
  • coloured cores
  • small bending radius

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

coloured acc. to HD 308 (VDE 0293-308), green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

coloured acc. to HD 308 (VDE 0293-308), green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

0,50 mm² - 1,50 mm²: Uo/U 300/500 V

2,50 mm² - 50,0 mm²: Uo/U 450/750 V

Testing voltage

core/core 3000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

acc. to internal standard

Chem. resistance

see Technical Data

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

0,50 mm² - 1,50 mm²: Uo/U 300/500 V

2,50 mm² - 50,0 mm²: Uo/U 450/750 V

Testing voltage

core/core 3000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Chem. resistance

Dimensions

item no.

no. of cores x
cross section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

020502052 x 0,50 mm²0,21 mm4,8 mm9,6 kg/km33 kg/km Send inquiry
020503053 x 0,50 mm²0,21 mm5,1 mm14,4 kg/km40 kg/km Send inquiry
020504054 x 0,50 mm²0,21 mm5,5 mm19,2 kg/km47 kg/km Send inquiry
020505055 x 0,50 mm²0,21 mm6,2 mm24 kg/km61 kg/km Send inquiry
020507057 x 0,50 mm²0,21 mm6,7 mm33,6 kg/km74 kg/km Send inquiry
020502072 x 0,75 mm²0,21 mm5,6 mm14,4 kg/km46 kg/km Send inquiry
020503073 x 0,75 mm²0,21 mm5,7 mm21,6 kg/km52 kg/km Send inquiry
020504074 x 0,75 mm²0,21 mm6,2 mm28,8 kg/km64 kg/km Send inquiry
020505075 x 0,75 mm²0,21 mm6,7 mm36 kg/km78 kg/km Send inquiry
020507077 x 0,75 mm²0,21 mm7,5 mm50,4 kg/km100 kg/km Send inquiry
020502102 x 1,00 mm²0,21 mm5,5 mm19,2 kg/km48 kg/km Send inquiry
020503103 x 1,00 mm²0,21 mm6,1 mm28,8 kg/km63 kg/km Send inquiry
020504104 x 1,00 mm²0,21 mm6,5 mm38,4 kg/km75 kg/km Send inquiry
020505105 x 1,00 mm²0,21 mm7,1 mm48 kg/km92 kg/km Send inquiry
020507107 x 1,00 mm²0,21 mm8 mm67,2 kg/km120 kg/km Send inquiry
020502152 x 1,50 mm²0,26 mm6,2 mm28,8 kg/km64 kg/km Send inquiry
020503153 x 1,50 mm²0,26 mm6,5 mm43,2 kg/km79 kg/km Send inquiry
020504154 x 1,50 mm²0,26 mm7,6 mm57,6 kg/km103 kg/km Send inquiry
020505155 x 1,50 mm²0,26 mm8 mm72 kg/km121 kg/km Send inquiry
020507157 x 1,50 mm²0,26 mm8,9 mm100,8 kg/km160 kg/km Send inquiry
020502252 x 2,50 mm²0,26 mm8,8 mm48 kg/km121 kg/km Send inquiry
020503253 x 2,50 mm²0,26 mm9,5 mm72 kg/km151 kg/km Send inquiry
020504254 x 2,50 mm²0,26 mm10,6 mm96 kg/km190 kg/km Send inquiry
020505255 x 2,50 mm²0,26 mm11,6 mm120 kg/km232 kg/km Send inquiry
020507257 x 2,50 mm²0,26 mm12,8 mm168 kg/km297 kg/km Send inquiry
020503403 x 4,00 mm²0,31 mm10,8 mm115,2 kg/km213 kg/km Send inquiry
020504404 x 4,00 mm²0,31 mm12 mm153,6 kg/km267 kg/km Send inquiry
020505405 x 4,00 mm²0,31 mm13,1 mm192 kg/km327 kg/km Send inquiry
020503603 x 6,00 mm²0,31 mm12,7 mm172,8 kg/km303 kg/km Send inquiry
020504604 x 6,00 mm²0,31 mm14,1 mm230,4 kg/km381 kg/km Send inquiry
020505605 x 6,00 mm²0,31 mm15,7 mm288 kg/km466 kg/km Send inquiry
020507607 x 6,00 mm²0,31 mm17,3 mm403,2 kg/km613 kg/km Send inquiry
020503613 x 10,0 mm²0,41 mm15,8 mm288 kg/km492 kg/km Send inquiry
020504614 x 10,0 mm²0,41 mm17,8 mm384 kg/km627 kg/km Send inquiry
020505615 x 10,0 mm²0,41 mm19,7 mm480 kg/km783 kg/km Send inquiry
020504624 x 16,0 mm²0,41 mm21,1 mm614,4 kg/km935 kg/km Send inquiry
020504634 x 25,0 mm²0,41 mm25,5 mm960 kg/km1456 kg/km Send inquiry
020504644 x 35,0 mm²0,41 mm28,8 mm1344 kg/km1978 kg/km Send inquiry
020504654 x 50,0 mm²0,41 mm34,6 mm1920 kg/km2769 kg/km Send inquiry
item no.
no. of cores x
cross section
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
02050205
2 x 0,50 mm²
0,21 mm
4,8 mm
9,6 kg/km
33 kg/km
02050305
3 x 0,50 mm²
0,21 mm
5,1 mm
14,4 kg/km
40 kg/km
02050405
4 x 0,50 mm²
0,21 mm
5,5 mm
19,2 kg/km
47 kg/km
02050505
5 x 0,50 mm²
0,21 mm
6,2 mm
24 kg/km
61 kg/km
02050705
7 x 0,50 mm²
0,21 mm
6,7 mm
33,6 kg/km
74 kg/km
02050207
2 x 0,75 mm²
0,21 mm
5,6 mm
14,4 kg/km
46 kg/km
02050307
3 x 0,75 mm²
0,21 mm
5,7 mm
21,6 kg/km
52 kg/km
02050407
4 x 0,75 mm²
0,21 mm
6,2 mm
28,8 kg/km
64 kg/km
02050507
5 x 0,75 mm²
0,21 mm
6,7 mm
36 kg/km
78 kg/km
02050707
7 x 0,75 mm²
0,21 mm
7,5 mm
50,4 kg/km
100 kg/km
02050210
2 x 1,00 mm²
0,21 mm
5,5 mm
19,2 kg/km
48 kg/km
02050310
3 x 1,00 mm²
0,21 mm
6,1 mm
28,8 kg/km
63 kg/km
02050410
4 x 1,00 mm²
0,21 mm
6,5 mm
38,4 kg/km
75 kg/km
02050510
5 x 1,00 mm²
0,21 mm
7,1 mm
48 kg/km
92 kg/km
02050710
7 x 1,00 mm²
0,21 mm
8 mm
67,2 kg/km
120 kg/km
02050215
2 x 1,50 mm²
0,26 mm
6,2 mm
28,8 kg/km
64 kg/km
02050315
3 x 1,50 mm²
0,26 mm
6,5 mm
43,2 kg/km
79 kg/km
02050415
4 x 1,50 mm²
0,26 mm
7,6 mm
57,6 kg/km
103 kg/km
02050515
5 x 1,50 mm²
0,26 mm
8 mm
72 kg/km
121 kg/km
02050715
7 x 1,50 mm²
0,26 mm
8,9 mm
100,8 kg/km
160 kg/km
02050225
2 x 2,50 mm²
0,26 mm
8,8 mm
48 kg/km
121 kg/km
02050325
3 x 2,50 mm²
0,26 mm
9,5 mm
72 kg/km
151 kg/km
02050425
4 x 2,50 mm²
0,26 mm
10,6 mm
96 kg/km
190 kg/km
02050525
5 x 2,50 mm²
0,26 mm
11,6 mm
120 kg/km
232 kg/km
02050725
7 x 2,50 mm²
0,26 mm
12,8 mm
168 kg/km
297 kg/km
02050340
3 x 4,00 mm²
0,31 mm
10,8 mm
115,2 kg/km
213 kg/km
02050440
4 x 4,00 mm²
0,31 mm
12 mm
153,6 kg/km
267 kg/km
02050540
5 x 4,00 mm²
0,31 mm
13,1 mm
192 kg/km
327 kg/km
02050360
3 x 6,00 mm²
0,31 mm
12,7 mm
172,8 kg/km
303 kg/km
02050460
4 x 6,00 mm²
0,31 mm
14,1 mm
230,4 kg/km
381 kg/km
02050560
5 x 6,00 mm²
0,31 mm
15,7 mm
288 kg/km
466 kg/km
02050760
7 x 6,00 mm²
0,31 mm
17,3 mm
403,2 kg/km
613 kg/km
02050361
3 x 10,0 mm²
0,41 mm
15,8 mm
288 kg/km
492 kg/km
02050461
4 x 10,0 mm²
0,41 mm
17,8 mm
384 kg/km
627 kg/km
02050561
5 x 10,0 mm²
0,41 mm
19,7 mm
480 kg/km
783 kg/km
02050462
4 x 16,0 mm²
0,41 mm
21,1 mm
614,4 kg/km
935 kg/km
02050463
4 x 25,0 mm²
0,41 mm
25,5 mm
960 kg/km
1456 kg/km
02050464
4 x 35,0 mm²
0,41 mm
28,8 mm
1344 kg/km
1978 kg/km
02050465
4 x 50,0 mm²
0,41 mm
34,6 mm
1920 kg/km
2769 kg/km

Other dimensions and colours are possible on request.
