SAB Kabel

CC 500 CY (TR)

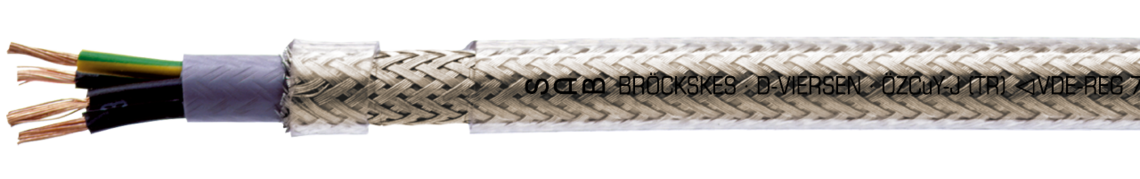

PVC control cable with numbered cores, inner sheath, overall copper screen, and transparent outer sheath

Marking for CC 500 CY (TR) 02440410: SAB BRÖCKSKES · D-VIERSEN · ÖZCuY-J (TR) VDE-Reg.-Nr. 7000 CC 500 CY (TR) 4 x 1,0 mm² CE

Marking for CC 500 CY (TR) 02440410: SAB BRÖCKSKES · D-VIERSEN · ÖZCuY-J (TR) VDE-Reg.-Nr. 7000 CC 500 CY (TR) 4 x 1,0 mm² CE

Application

CC 500 CY (TR) is a PVC control cable with an transparent outer sheath, numbered cores, inner sheath, and overall copper screen. Furthermore, it has good EMC characteristics, high mechanical loading capacity as well as high flexibility. It is recommended for use in car manufacturing industry, automation technologies, press and form engineering, machine tools, textile, printing and paper machine construction, and iron and steel industries.

Outstanding features

  • good EMV characteristics
  • flexible
  • high mechanical loading capacity

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheath

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

transparent

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheath

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

transparent

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 3000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

acc. to internal standard

Chem. resistance

see Technical Data

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 3000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Chem. resistance

Dimensions

item no.

no. of cores x
cross section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

024402052 x 0,50 mm²0,21 mm7,3 mm55,3 kg/km72 kg/km Send inquiry
024403053 x 0,50 mm²0,21 mm7,8 mm60,6 kg/km84 kg/km Send inquiry
024404054 x 0,50 mm²0,21 mm8,1 mm66,4 kg/km92 kg/km Send inquiry
024405055 x 0,50 mm²0,21 mm8,7 mm81,3 kg/km107 kg/km Send inquiry
024407057 x 0,50 mm²0,21 mm9,5 mm92 kg/km130 kg/km Send inquiry
0244120512 x 0,50 mm²0,21 mm12,1 mm133,4 kg/km210 kg/km Send inquiry
0244180518 x 0,50 mm²0,21 mm14 mm180,8 kg/km283 kg/km Send inquiry
0244250525 x 0,50 mm²0,21 mm16,6 mm244,4 kg/km388 kg/km Send inquiry
0244340534 x 0,50 mm²0,21 mm18,3 mm272,9 kg/km485 kg/km Send inquiry
0244420542 x 0,50 mm²0,21 mm19,7 mm336,3 kg/km578 kg/km Send inquiry
0244500550 x 0,50 mm²0,21 mm21,3 mm366,1 kg/km655 kg/km Send inquiry
0244610561 x 0,50 mm²0,21 mm22,6 mm430,3 kg/km764 kg/km Send inquiry
024402072 x 0,75 mm²0,21 mm8,1 mm61,2 kg/km99 kg/km Send inquiry
024403073 x 0,75 mm²0,21 mm8,4 mm69 kg/km112 kg/km Send inquiry
024404074 x 0,75 mm²0,21 mm9,1 mm86,5 kg/km126 kg/km Send inquiry
024405075 x 0,75 mm²0,21 mm9,7 mm94,8 kg/km150 kg/km Send inquiry
024407077 x 0,75 mm²0,21 mm10,6 mm110,7 kg/km179 kg/km Send inquiry
0244120712 x 0,75 mm²0,21 mm13,7 mm180 kg/km265 kg/km Send inquiry
0224180718 x 0,75 mm²0,21 mm15,9 mm227,4 kg/km361 kg/km Send inquiry
0244250725 x 0,75 mm²0,21 mm18,8 mm311,4 kg/km511 kg/km Send inquiry
0224340734 x 0,75 mm²0,21 mm21 mm384,2 kg/km648 kg/km Send inquiry
0224420742 x 0,75 mm²0,21 mm22,2 mm446,5 kg/km762 kg/km Send inquiry
0224500750 x 0,75 mm²0,21 mm24,2 mm536,5 kg/km874 kg/km Send inquiry
0224610761 x 0,75 mm²0,21 mm25,7 mm623,2 kg/km1023 kg/km Send inquiry
022402102 x 1,00 mm²0,21 mm8,3 mm66,4 kg/km109 kg/km Send inquiry
022403103 x 1,00 mm²0,21 mm8,6 mm76,5 kg/km121 kg/km Send inquiry
022404104 x 1,00 mm²0,21 mm9,4 mm96,4 kg/km144 kg/km Send inquiry
022405105 x 1,00 mm²0,21 mm10 mm107,4 kg/km165 kg/km Send inquiry
022407107 x 1,00 mm²0,21 mm11,1 mm128,1 kg/km203 kg/km Send inquiry
0224121012 x 1,00 mm²0,21 mm14,3 mm209,6 kg/km303 kg/km Send inquiry
0224181018 x 1,00 mm²0,21 mm16,5 mm271,8 kg/km423 kg/km Send inquiry
0224251025 x 1,00 mm²0,21 mm19,6 mm373,4 kg/km584 kg/km Send inquiry
0224341034 x 1,00 mm²0,21 mm21,7 mm468,3 kg/km754 kg/km Send inquiry
0224421042 x 1,00 mm²0,21 mm23,1 mm550,3 kg/km888 kg/km Send inquiry
0224501050 x 1,00 mm²0,21 mm25,2 mm661,7 kg/km1019 kg/km Send inquiry
0224611061 x 1,00 mm²0,21 mm27 mm775,4 kg/km1187 kg/km Send inquiry
022402152 x 1,50 mm²0,26 mm9,1 mm86,1 kg/km124 kg/km Send inquiry
022403153 x 1,50 mm²0,26 mm9,5 mm101,2 kg/km146 kg/km Send inquiry
022404154 x 1,50 mm²0,26 mm10,1 mm116,8 kg/km168 kg/km Send inquiry
022405155 x 1,50 mm²0,26 mm11,2 mm145,4 kg/km209 kg/km Send inquiry
022407157 x 1,50 mm²0,26 mm12,2 mm176,3 kg/km249 kg/km Send inquiry
0224121512 x 1,50 mm²0,26 mm15,8 mm270,2 kg/km395 kg/km Send inquiry
0224181518 x 1,50 mm²0,26 mm18,5 mm389 kg/km559 kg/km Send inquiry
0224251525 x 1,50 mm²0,26 mm21,7 mm501,6 kg/km764 kg/km Send inquiry
0224341534 x 1,50 mm²0,26 mm24,2 mm666,5 kg/km967 kg/km Send inquiry
0224421542 x 1,50 mm²0,26 mm25,8 mm788,8 kg/km1156 kg/km Send inquiry
0224501550 x 1,50 mm²0,26 mm28,4 mm914,9 kg/km1360 kg/km Send inquiry
0224611561 x 1,50 mm²0,26 mm30,1 mm1080,8 kg/km1588 kg/km Send inquiry
022403253 x 2,50 mm²0,26 mm11,2 mm132,9 kg/km208 kg/km Send inquiry
022404254 x 2,50 mm²0,26 mm12,1 mm171,2 kg/km244 kg/km Send inquiry
022405255 x 2,50 mm²0,26 mm13,2 mm212,5 kg/km293 kg/km Send inquiry
022407257 x 2,50 mm²0,26 mm14,6 mm262,7 kg/km370 kg/km Send inquiry
0224122512 x 2,50 mm²0,26 mm18,9 mm418,8 kg/km607 kg/km Send inquiry
0224182518 x 2,50 mm²0,26 mm21,9 mm573,6 kg/km846 kg/km Send inquiry
item no.
no. of cores x
cross section
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
02440205
2 x 0,50 mm²
0,21 mm
7,3 mm
55,3 kg/km
72 kg/km
02440305
3 x 0,50 mm²
0,21 mm
7,8 mm
60,6 kg/km
84 kg/km
02440405
4 x 0,50 mm²
0,21 mm
8,1 mm
66,4 kg/km
92 kg/km
02440505
5 x 0,50 mm²
0,21 mm
8,7 mm
81,3 kg/km
107 kg/km
02440705
7 x 0,50 mm²
0,21 mm
9,5 mm
92 kg/km
130 kg/km
02441205
12 x 0,50 mm²
0,21 mm
12,1 mm
133,4 kg/km
210 kg/km
02441805
18 x 0,50 mm²
0,21 mm
14 mm
180,8 kg/km
283 kg/km
02442505
25 x 0,50 mm²
0,21 mm
16,6 mm
244,4 kg/km
388 kg/km
02443405
34 x 0,50 mm²
0,21 mm
18,3 mm
272,9 kg/km
485 kg/km
02444205
42 x 0,50 mm²
0,21 mm
19,7 mm
336,3 kg/km
578 kg/km
02445005
50 x 0,50 mm²
0,21 mm
21,3 mm
366,1 kg/km
655 kg/km
02446105
61 x 0,50 mm²
0,21 mm
22,6 mm
430,3 kg/km
764 kg/km
02440207
2 x 0,75 mm²
0,21 mm
8,1 mm
61,2 kg/km
99 kg/km
02440307
3 x 0,75 mm²
0,21 mm
8,4 mm
69 kg/km
112 kg/km
02440407
4 x 0,75 mm²
0,21 mm
9,1 mm
86,5 kg/km
126 kg/km
02440507
5 x 0,75 mm²
0,21 mm
9,7 mm
94,8 kg/km
150 kg/km
02440707
7 x 0,75 mm²
0,21 mm
10,6 mm
110,7 kg/km
179 kg/km
02441207
12 x 0,75 mm²
0,21 mm
13,7 mm
180 kg/km
265 kg/km
02241807
18 x 0,75 mm²
0,21 mm
15,9 mm
227,4 kg/km
361 kg/km
02442507
25 x 0,75 mm²
0,21 mm
18,8 mm
311,4 kg/km
511 kg/km
02243407
34 x 0,75 mm²
0,21 mm
21 mm
384,2 kg/km
648 kg/km
02244207
42 x 0,75 mm²
0,21 mm
22,2 mm
446,5 kg/km
762 kg/km
02245007
50 x 0,75 mm²
0,21 mm
24,2 mm
536,5 kg/km
874 kg/km
02246107
61 x 0,75 mm²
0,21 mm
25,7 mm
623,2 kg/km
1023 kg/km
02240210
2 x 1,00 mm²
0,21 mm
8,3 mm
66,4 kg/km
109 kg/km
02240310
3 x 1,00 mm²
0,21 mm
8,6 mm
76,5 kg/km
121 kg/km
02240410
4 x 1,00 mm²
0,21 mm
9,4 mm
96,4 kg/km
144 kg/km
02240510
5 x 1,00 mm²
0,21 mm
10 mm
107,4 kg/km
165 kg/km
02240710
7 x 1,00 mm²
0,21 mm
11,1 mm
128,1 kg/km
203 kg/km
02241210
12 x 1,00 mm²
0,21 mm
14,3 mm
209,6 kg/km
303 kg/km
02241810
18 x 1,00 mm²
0,21 mm
16,5 mm
271,8 kg/km
423 kg/km
02242510
25 x 1,00 mm²
0,21 mm
19,6 mm
373,4 kg/km
584 kg/km
02243410
34 x 1,00 mm²
0,21 mm
21,7 mm
468,3 kg/km
754 kg/km
02244210
42 x 1,00 mm²
0,21 mm
23,1 mm
550,3 kg/km
888 kg/km
02245010
50 x 1,00 mm²
0,21 mm
25,2 mm
661,7 kg/km
1019 kg/km
02246110
61 x 1,00 mm²
0,21 mm
27 mm
775,4 kg/km
1187 kg/km
02240215
2 x 1,50 mm²
0,26 mm
9,1 mm
86,1 kg/km
124 kg/km
02240315
3 x 1,50 mm²
0,26 mm
9,5 mm
101,2 kg/km
146 kg/km
02240415
4 x 1,50 mm²
0,26 mm
10,1 mm
116,8 kg/km
168 kg/km
02240515
5 x 1,50 mm²
0,26 mm
11,2 mm
145,4 kg/km
209 kg/km
02240715
7 x 1,50 mm²
0,26 mm
12,2 mm
176,3 kg/km
249 kg/km
02241215
12 x 1,50 mm²
0,26 mm
15,8 mm
270,2 kg/km
395 kg/km
02241815
18 x 1,50 mm²
0,26 mm
18,5 mm
389 kg/km
559 kg/km
02242515
25 x 1,50 mm²
0,26 mm
21,7 mm
501,6 kg/km
764 kg/km
02243415
34 x 1,50 mm²
0,26 mm
24,2 mm
666,5 kg/km
967 kg/km
02244215
42 x 1,50 mm²
0,26 mm
25,8 mm
788,8 kg/km
1156 kg/km
02245015
50 x 1,50 mm²
0,26 mm
28,4 mm
914,9 kg/km
1360 kg/km
02246115
61 x 1,50 mm²
0,26 mm
30,1 mm
1080,8 kg/km
1588 kg/km
02240325
3 x 2,50 mm²
0,26 mm
11,2 mm
132,9 kg/km
208 kg/km
02240425
4 x 2,50 mm²
0,26 mm
12,1 mm
171,2 kg/km
244 kg/km
02240525
5 x 2,50 mm²
0,26 mm
13,2 mm
212,5 kg/km
293 kg/km
02240725
7 x 2,50 mm²
0,26 mm
14,6 mm
262,7 kg/km
370 kg/km
02241225
12 x 2,50 mm²
0,26 mm
18,9 mm
418,8 kg/km
607 kg/km
02241825
18 x 2,50 mm²
0,26 mm
21,9 mm
573,6 kg/km
846 kg/km

Other dimensions and colours are possible on request.
