SAB Kabel

CC 500 CY

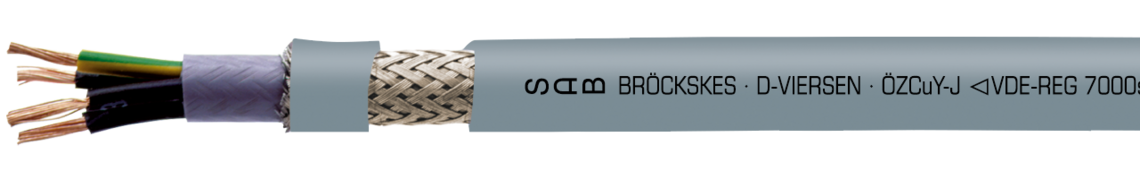

PVC control cable with numbered cores, inner sheath, and overall copper screen

Marking for CC 500 CY 02400410: SAB BRÖCKSKES · D-VIERSEN · ÖZCuY-J VDE-Reg.-Nr. 7000 CC 500 CY 4 x 1,0 mm² CE

Marking for CC 500 CY 02400410: SAB BRÖCKSKES · D-VIERSEN · ÖZCuY-J VDE-Reg.-Nr. 7000 CC 500 CY 4 x 1,0 mm² CE

Application

CC 500 CY is a PVC control cable with numbered cores, inner sheath, and overall copper screen. Furthermore, it has good EMC characteristics, high mechanical loading capacity as well as high flexibility. It is recommended for use in car manufacturing industry, automation technologies, press and form engineering, machine tools, textile, printing and paper machine construction, and iron and steel industries.

Outstanding features

  • good EMV characteristics
  • flexible
  • high mechanical loading capacity

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheath

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheath

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 3000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

acc. to internal standard

Chem. resistance

see Technical Data

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 3000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Chem. resistance

Dimensions

item no.

no. of cores x
cross section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

024002052 x 0,50 mm²0,21 mm7,3 mm55,3 kg/km72 kg/km Send inquiry
024003053 x 0,50 mm²0,21 mm7,8 mm60,6 kg/km84 kg/km Send inquiry
024004054 x 0,50 mm²0,21 mm8,1 mm66,4 kg/km92 kg/km Send inquiry
024005055 x 0,50 mm²0,21 mm8,7 mm81,3 kg/km107 kg/km Send inquiry
024007057 x 0,50 mm²0,21 mm9,5 mm92 kg/km130 kg/km Send inquiry
0240120512 x 0,50 mm²0,21 mm12,1 mm133,4 kg/km210 kg/km Send inquiry
0240180518 x 0,50 mm²0,21 mm14 mm180,8 kg/km283 kg/km Send inquiry
0240250525 x 0,50 mm²0,21 mm16,6 mm244,4 kg/km388 kg/km Send inquiry
0240340534 x 0,50 mm²0,21 mm18,3 mm272,9 kg/km485 kg/km Send inquiry
0240420542 x 0,50 mm²0,21 mm19,7 mm336,3 kg/km578 kg/km Send inquiry
0240500550 x 0,50 mm²0,21 mm21,3 mm366,1 kg/km655 kg/km Send inquiry
0240610561 x 0,50 mm²0,21 mm22,6 mm430,3 kg/km764 kg/km Send inquiry
024002072 x 0,75 mm²0,21 mm8,1 mm61,2 kg/km99 kg/km Send inquiry
024003073 x 0,75 mm²0,21 mm8,4 mm69 kg/km112 kg/km Send inquiry
024004074 x 0,75 mm²0,21 mm9,1 mm86,5 kg/km126 kg/km Send inquiry
024005075 x 0,75 mm²0,21 mm9,7 mm94,8 kg/km150 kg/km Send inquiry
024007077 x 0,75 mm²0,21 mm10,6 mm110,7 kg/km179 kg/km Send inquiry
0240120712 x 0,75 mm²0,21 mm13,7 mm180 kg/km265 kg/km Send inquiry
0240180718 x 0,75 mm²0,21 mm15,9 mm227,4 kg/km361 kg/km Send inquiry
0240250725 x 0,75 mm²0,21 mm18,8 mm311,4 kg/km511 kg/km Send inquiry
0240340734 x 0,75 mm²0,21 mm21 mm384,2 kg/km648 kg/km Send inquiry
0240420742 x 0,75 mm²0,21 mm22,2 mm446,5 kg/km762 kg/km Send inquiry
0240500750 x 0,75 mm²0,21 mm24,2 mm536,5 kg/km874 kg/km Send inquiry
0240610761 x 0,75 mm²0,21 mm25,7 mm623,2 kg/km1023 kg/km Send inquiry
024002102 x 1,00 mm²0,21 mm8,3 mm66,4 kg/km109 kg/km Send inquiry
024003103 x 1,00 mm²0,21 mm8,6 mm76,5 kg/km121 kg/km Send inquiry
024004104 x 1,00 mm²0,21 mm9,4 mm96,4 kg/km144 kg/km Send inquiry
024005105 x 1,00 mm²0,21 mm10 mm107,4 kg/km165 kg/km Send inquiry
024007107 x 1,00 mm²0,21 mm11,1 mm128,1 kg/km203 kg/km Send inquiry
0240121012 x 1,00 mm²0,21 mm14,3 mm209,6 kg/km303 kg/km Send inquiry
0240181018 x 1,00 mm²0,21 mm16,5 mm271,8 kg/km423 kg/km Send inquiry
0240251025 x 1,00 mm²0,21 mm19,6 mm373,4 kg/km584 kg/km Send inquiry
0240341034 x 1,00 mm²0,21 mm21,7 mm468,3 kg/km754 kg/km Send inquiry
0240421042 x 1,00 mm²0,21 mm23,1 mm550,3 kg/km888 kg/km Send inquiry
0240501050 x 1,00 mm²0,21 mm25,2 mm661,7 kg/km1019 kg/km Send inquiry
0240611061 x 1,00 mm²0,21 mm27 mm775,4 kg/km1187 kg/km Send inquiry
024002152 x 1,50 mm²0,26 mm9,1 mm86,1 kg/km124 kg/km Send inquiry
024003153 x 1,50 mm²0,26 mm9,5 mm101,2 kg/km146 kg/km Send inquiry
024004154 x 1,50 mm²0,26 mm10,1 mm116,8 kg/km168 kg/km Send inquiry
024005155 x 1,50 mm²0,26 mm11,2 mm145,4 kg/km209 kg/km Send inquiry
024007157 x 1,50 mm²0,26 mm12,2 mm176,3 kg/km249 kg/km Send inquiry
0240121512 x 1,50 mm²0,26 mm15,8 mm270,2 kg/km395 kg/km Send inquiry
0240181518 x 1,50 mm²0,26 mm18,5 mm389 kg/km559 kg/km Send inquiry
0240251525 x 1,50 mm²0,26 mm21,7 mm501,6 kg/km764 kg/km Send inquiry
0240341534 x 1,50 mm²0,26 mm24,2 mm666,5 kg/km967 kg/km Send inquiry
0240421542 x 1,50 mm²0,26 mm25,8 mm788,8 kg/km1156 kg/km Send inquiry
0240501550 x 1,50 mm²0,26 mm28,4 mm914,9 kg/km1360 kg/km Send inquiry
0240611561 x 1,50 mm²0,26 mm30,1 mm1080,8 kg/km1588 kg/km Send inquiry
024003253 x 2,50 mm²0,26 mm11,2 mm132,9 kg/km208 kg/km Send inquiry
024004254 x 2,50 mm²0,26 mm12,1 mm171,2 kg/km244 kg/km Send inquiry
024005255 x 2,50 mm²0,26 mm13,2 mm212,5 kg/km293 kg/km Send inquiry
024007257 x 2,50 mm²0,26 mm14,6 mm262,7 kg/km370 kg/km Send inquiry
0240122512 x 2,50 mm²0,26 mm18,9 mm418,8 kg/km607 kg/km Send inquiry
0240182518 x 2,50 mm²0,26 mm21,9 mm573,6 kg/km846 kg/km Send inquiry
item no.
no. of cores x
cross section
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
02400205
2 x 0,50 mm²
0,21 mm
7,3 mm
55,3 kg/km
72 kg/km
02400305
3 x 0,50 mm²
0,21 mm
7,8 mm
60,6 kg/km
84 kg/km
02400405
4 x 0,50 mm²
0,21 mm
8,1 mm
66,4 kg/km
92 kg/km
02400505
5 x 0,50 mm²
0,21 mm
8,7 mm
81,3 kg/km
107 kg/km
02400705
7 x 0,50 mm²
0,21 mm
9,5 mm
92 kg/km
130 kg/km
02401205
12 x 0,50 mm²
0,21 mm
12,1 mm
133,4 kg/km
210 kg/km
02401805
18 x 0,50 mm²
0,21 mm
14 mm
180,8 kg/km
283 kg/km
02402505
25 x 0,50 mm²
0,21 mm
16,6 mm
244,4 kg/km
388 kg/km
02403405
34 x 0,50 mm²
0,21 mm
18,3 mm
272,9 kg/km
485 kg/km
02404205
42 x 0,50 mm²
0,21 mm
19,7 mm
336,3 kg/km
578 kg/km
02405005
50 x 0,50 mm²
0,21 mm
21,3 mm
366,1 kg/km
655 kg/km
02406105
61 x 0,50 mm²
0,21 mm
22,6 mm
430,3 kg/km
764 kg/km
02400207
2 x 0,75 mm²
0,21 mm
8,1 mm
61,2 kg/km
99 kg/km
02400307
3 x 0,75 mm²
0,21 mm
8,4 mm
69 kg/km
112 kg/km
02400407
4 x 0,75 mm²
0,21 mm
9,1 mm
86,5 kg/km
126 kg/km
02400507
5 x 0,75 mm²
0,21 mm
9,7 mm
94,8 kg/km
150 kg/km
02400707
7 x 0,75 mm²
0,21 mm
10,6 mm
110,7 kg/km
179 kg/km
02401207
12 x 0,75 mm²
0,21 mm
13,7 mm
180 kg/km
265 kg/km
02401807
18 x 0,75 mm²
0,21 mm
15,9 mm
227,4 kg/km
361 kg/km
02402507
25 x 0,75 mm²
0,21 mm
18,8 mm
311,4 kg/km
511 kg/km
02403407
34 x 0,75 mm²
0,21 mm
21 mm
384,2 kg/km
648 kg/km
02404207
42 x 0,75 mm²
0,21 mm
22,2 mm
446,5 kg/km
762 kg/km
02405007
50 x 0,75 mm²
0,21 mm
24,2 mm
536,5 kg/km
874 kg/km
02406107
61 x 0,75 mm²
0,21 mm
25,7 mm
623,2 kg/km
1023 kg/km
02400210
2 x 1,00 mm²
0,21 mm
8,3 mm
66,4 kg/km
109 kg/km
02400310
3 x 1,00 mm²
0,21 mm
8,6 mm
76,5 kg/km
121 kg/km
02400410
4 x 1,00 mm²
0,21 mm
9,4 mm
96,4 kg/km
144 kg/km
02400510
5 x 1,00 mm²
0,21 mm
10 mm
107,4 kg/km
165 kg/km
02400710
7 x 1,00 mm²
0,21 mm
11,1 mm
128,1 kg/km
203 kg/km
02401210
12 x 1,00 mm²
0,21 mm
14,3 mm
209,6 kg/km
303 kg/km
02401810
18 x 1,00 mm²
0,21 mm
16,5 mm
271,8 kg/km
423 kg/km
02402510
25 x 1,00 mm²
0,21 mm
19,6 mm
373,4 kg/km
584 kg/km
02403410
34 x 1,00 mm²
0,21 mm
21,7 mm
468,3 kg/km
754 kg/km
02404210
42 x 1,00 mm²
0,21 mm
23,1 mm
550,3 kg/km
888 kg/km
02405010
50 x 1,00 mm²
0,21 mm
25,2 mm
661,7 kg/km
1019 kg/km
02406110
61 x 1,00 mm²
0,21 mm
27 mm
775,4 kg/km
1187 kg/km
02400215
2 x 1,50 mm²
0,26 mm
9,1 mm
86,1 kg/km
124 kg/km
02400315
3 x 1,50 mm²
0,26 mm
9,5 mm
101,2 kg/km
146 kg/km
02400415
4 x 1,50 mm²
0,26 mm
10,1 mm
116,8 kg/km
168 kg/km
02400515
5 x 1,50 mm²
0,26 mm
11,2 mm
145,4 kg/km
209 kg/km
02400715
7 x 1,50 mm²
0,26 mm
12,2 mm
176,3 kg/km
249 kg/km
02401215
12 x 1,50 mm²
0,26 mm
15,8 mm
270,2 kg/km
395 kg/km
02401815
18 x 1,50 mm²
0,26 mm
18,5 mm
389 kg/km
559 kg/km
02402515
25 x 1,50 mm²
0,26 mm
21,7 mm
501,6 kg/km
764 kg/km
02403415
34 x 1,50 mm²
0,26 mm
24,2 mm
666,5 kg/km
967 kg/km
02404215
42 x 1,50 mm²
0,26 mm
25,8 mm
788,8 kg/km
1156 kg/km
02405015
50 x 1,50 mm²
0,26 mm
28,4 mm
914,9 kg/km
1360 kg/km
02406115
61 x 1,50 mm²
0,26 mm
30,1 mm
1080,8 kg/km
1588 kg/km
02400325
3 x 2,50 mm²
0,26 mm
11,2 mm
132,9 kg/km
208 kg/km
02400425
4 x 2,50 mm²
0,26 mm
12,1 mm
171,2 kg/km
244 kg/km
02400525
5 x 2,50 mm²
0,26 mm
13,2 mm
212,5 kg/km
293 kg/km
02400725
7 x 2,50 mm²
0,26 mm
14,6 mm
262,7 kg/km
370 kg/km
02401225
12 x 2,50 mm²
0,26 mm
18,9 mm
418,8 kg/km
607 kg/km
02401825
18 x 2,50 mm²
0,26 mm
21,9 mm
573,6 kg/km
846 kg/km

Other dimensions and colours are possible on request.
