SAB Kabel

CC 500 P

PUR control cable with numbered cores

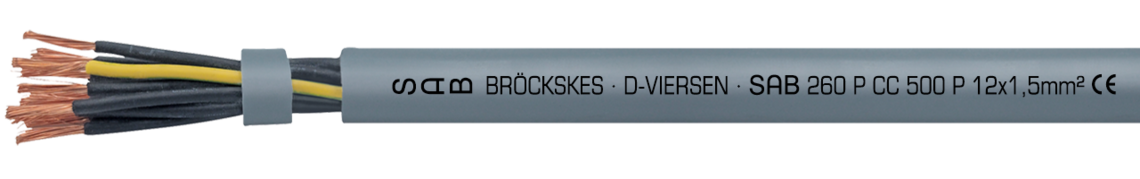

Marking for CC 500 P 02600510: SAB BRÖCKSKES · D-VIERSEN · SAB 260 P CC 500 P 5 x 1,0 mm² CE

Marking for CC 500 P 02600510: SAB BRÖCKSKES · D-VIERSEN · SAB 260 P CC 500 P 5 x 1,0 mm² CE

Application

CC 500 P is a PUR control cable with numbered cores, oil and abrasion resistance, and notch resistance. Due to the PUR outer sheath the cable is recommended for machine and industrial plant construction, material handling techniques, car manufacturing industry, handling and automation technologies, iron, steel, and chemical industries.

Outstanding features

  • oil resistant
  • abrasion resistant
  • notch resistant
  • good chemical resistance

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheath

from 4,0 mm²: PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath material

PUR, TMPU EN 50363-10-2 + VDE 0207-363-10-2 with rough surface

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheath

from 4,0 mm²: PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath material

PUR, TMPU EN 50363-10-2 + VDE 0207-363-10-2 with rough surface

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Dimensions

item no.

no. of cores x
cross section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

026002072 x 0,75 mm²0,21 mm5,7 mm14,4 kg/km39 kg/km Send inquiry
026003073 x 0,75 mm²0,21 mm5,9 mm21,6 kg/km51 kg/km Send inquiry
026004074 x 0,75 mm²0,21 mm6,4 mm28,8 kg/km62 kg/km Send inquiry
026005075 x 0,75 mm²0,21 mm7 mm36 kg/km75 kg/km Send inquiry
026007077 x 0,75 mm²0,21 mm7,6 mm50,4 kg/km95 kg/km Send inquiry
0260120712 x 0,75 mm²0,21 mm10,4 mm86,4 kg/km158 kg/km Send inquiry
0260180718 x 0,75 mm²0,21 mm12,1 mm129,6 kg/km225 kg/km Send inquiry
0260200720 x 0,75 mm²0,21 mm12,7 mm144 kg/km248 kg/km Send inquiry
0260250725 x 0,75 mm²0,21 mm14,8 mm180 kg/km312 kg/km Send inquiry
026002102 x 1,00 mm²0,21 mm5,9 mm19,2 kg/km44 kg/km Send inquiry
026003103 x 1,00 mm²0,21 mm6,1 mm28,8 kg/km59 kg/km Send inquiry
026004104 x 1,00 mm²0,21 mm6,6 mm38,4 kg/km72 kg/km Send inquiry
026005105 x 1,00 mm²0,21 mm7,3 mm48 kg/km87 kg/km Send inquiry
026007107 x 1,00 mm²0,21 mm7,9 mm67,2 kg/km112 kg/km Send inquiry
0260121012 x 1,00 mm²0,21 mm10,8 mm115,2 kg/km185 kg/km Send inquiry
0260181018 x 1,00 mm²0,21 mm12,6 mm172,8 kg/km267 kg/km Send inquiry
0260201020 x 1,00 mm²0,21 mm13,2 mm192 kg/km294 kg/km Send inquiry
0260251025 x 1,00 mm²0,21 mm15,4 mm240 kg/km369 kg/km Send inquiry
026002152 x 1,50 mm²0,26 mm6,5 mm28,8 kg/km56 kg/km Send inquiry
026003153 x 1,50 mm²0,26 mm6,8 mm43,2 kg/km76 kg/km Send inquiry
026004154 x 1,50 mm²0,26 mm7,4 mm57,6 kg/km94 kg/km Send inquiry
026005155 x 1,50 mm²0,26 mm8,1 mm72 kg/km115 kg/km Send inquiry
026007157 x 1,50 mm²0,26 mm8,8 mm100,8 kg/km148 kg/km Send inquiry
0260121512 x 1,50 mm²0,26 mm12,1 mm172,8 kg/km245 kg/km Send inquiry
0260181518 x 1,50 mm²0,26 mm14,5 mm259,2 kg/km367 kg/km Send inquiry
0260201520 x 1,50 mm²0,26 mm15,2 mm288 kg/km404 kg/km Send inquiry
0260251525 x 1,50 mm²0,26 mm17,3 mm360 kg/km497 kg/km Send inquiry
026002252 x 2,50 mm²0,26 mm7,7 mm48 kg/km83 kg/km Send inquiry
026003253 x 2,50 mm²0,26 mm8,1 mm72 kg/km115 kg/km Send inquiry
026004254 x 2,50 mm²0,26 mm8,8 mm96 kg/km144 kg/km Send inquiry
026005255 x 2,50 mm²0,26 mm10,1 mm120 kg/km184 kg/km Send inquiry
026007257 x 2,50 mm²0,26 mm11 mm168 kg/km238 kg/km Send inquiry
0260122512 x 2,50 mm²0,26 mm14,9 mm288 kg/km391 kg/km Send inquiry
0260182518 x 2,50 mm²0,26 mm17,9 mm432 kg/km582 kg/km Send inquiry
0260202520 x 2,50 mm²0,26 mm18,8 mm480 kg/km636 kg/km Send inquiry
0260252525 x 2,50 mm²0,26 mm21,8 mm600 kg/km800 kg/km Send inquiry
026003403 x 4,00 mm²0,31 mm11,7 mm115,2 kg/km227 kg/km Send inquiry
026004404 x 4,00 mm²0,31 mm12,6 mm153,6 kg/km275 kg/km Send inquiry
026005405 x 4,00 mm²0,31 mm13,7 mm192 kg/km330 kg/km Send inquiry
026003603 x 6,00 mm²0,31 mm14 mm172,8 kg/km333 kg/km Send inquiry
026004604 x 6,00 mm²0,31 mm15,1 mm230,4 kg/km404 kg/km Send inquiry
026005605 x 6,00 mm²0,31 mm16,4 mm288 kg/km482 kg/km Send inquiry
026004614 x 10,0 mm²0,41 mm18,9 mm384 kg/km656 kg/km Send inquiry
item no.
no. of cores x
cross section
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
02600207
2 x 0,75 mm²
0,21 mm
5,7 mm
14,4 kg/km
39 kg/km
02600307
3 x 0,75 mm²
0,21 mm
5,9 mm
21,6 kg/km
51 kg/km
02600407
4 x 0,75 mm²
0,21 mm
6,4 mm
28,8 kg/km
62 kg/km
02600507
5 x 0,75 mm²
0,21 mm
7 mm
36 kg/km
75 kg/km
02600707
7 x 0,75 mm²
0,21 mm
7,6 mm
50,4 kg/km
95 kg/km
02601207
12 x 0,75 mm²
0,21 mm
10,4 mm
86,4 kg/km
158 kg/km
02601807
18 x 0,75 mm²
0,21 mm
12,1 mm
129,6 kg/km
225 kg/km
02602007
20 x 0,75 mm²
0,21 mm
12,7 mm
144 kg/km
248 kg/km
02602507
25 x 0,75 mm²
0,21 mm
14,8 mm
180 kg/km
312 kg/km
02600210
2 x 1,00 mm²
0,21 mm
5,9 mm
19,2 kg/km
44 kg/km
02600310
3 x 1,00 mm²
0,21 mm
6,1 mm
28,8 kg/km
59 kg/km
02600410
4 x 1,00 mm²
0,21 mm
6,6 mm
38,4 kg/km
72 kg/km
02600510
5 x 1,00 mm²
0,21 mm
7,3 mm
48 kg/km
87 kg/km
02600710
7 x 1,00 mm²
0,21 mm
7,9 mm
67,2 kg/km
112 kg/km
02601210
12 x 1,00 mm²
0,21 mm
10,8 mm
115,2 kg/km
185 kg/km
02601810
18 x 1,00 mm²
0,21 mm
12,6 mm
172,8 kg/km
267 kg/km
02602010
20 x 1,00 mm²
0,21 mm
13,2 mm
192 kg/km
294 kg/km
02602510
25 x 1,00 mm²
0,21 mm
15,4 mm
240 kg/km
369 kg/km
02600215
2 x 1,50 mm²
0,26 mm
6,5 mm
28,8 kg/km
56 kg/km
02600315
3 x 1,50 mm²
0,26 mm
6,8 mm
43,2 kg/km
76 kg/km
02600415
4 x 1,50 mm²
0,26 mm
7,4 mm
57,6 kg/km
94 kg/km
02600515
5 x 1,50 mm²
0,26 mm
8,1 mm
72 kg/km
115 kg/km
02600715
7 x 1,50 mm²
0,26 mm
8,8 mm
100,8 kg/km
148 kg/km
02601215
12 x 1,50 mm²
0,26 mm
12,1 mm
172,8 kg/km
245 kg/km
02601815
18 x 1,50 mm²
0,26 mm
14,5 mm
259,2 kg/km
367 kg/km
02602015
20 x 1,50 mm²
0,26 mm
15,2 mm
288 kg/km
404 kg/km
02602515
25 x 1,50 mm²
0,26 mm
17,3 mm
360 kg/km
497 kg/km
02600225
2 x 2,50 mm²
0,26 mm
7,7 mm
48 kg/km
83 kg/km
02600325
3 x 2,50 mm²
0,26 mm
8,1 mm
72 kg/km
115 kg/km
02600425
4 x 2,50 mm²
0,26 mm
8,8 mm
96 kg/km
144 kg/km
02600525
5 x 2,50 mm²
0,26 mm
10,1 mm
120 kg/km
184 kg/km
02600725
7 x 2,50 mm²
0,26 mm
11 mm
168 kg/km
238 kg/km
02601225
12 x 2,50 mm²
0,26 mm
14,9 mm
288 kg/km
391 kg/km
02601825
18 x 2,50 mm²
0,26 mm
17,9 mm
432 kg/km
582 kg/km
02602025
20 x 2,50 mm²
0,26 mm
18,8 mm
480 kg/km
636 kg/km
02602525
25 x 2,50 mm²
0,26 mm
21,8 mm
600 kg/km
800 kg/km
02600340
3 x 4,00 mm²
0,31 mm
11,7 mm
115,2 kg/km
227 kg/km
02600440
4 x 4,00 mm²
0,31 mm
12,6 mm
153,6 kg/km
275 kg/km
02600540
5 x 4,00 mm²
0,31 mm
13,7 mm
192 kg/km
330 kg/km
02600360
3 x 6,00 mm²
0,31 mm
14 mm
172,8 kg/km
333 kg/km
02600460
4 x 6,00 mm²
0,31 mm
15,1 mm
230,4 kg/km
404 kg/km
02600560
5 x 6,00 mm²
0,31 mm
16,4 mm
288 kg/km
482 kg/km
02600461
4 x 10,0 mm²
0,41 mm
18,9 mm
384 kg/km
656 kg/km

Other dimensions and colours are possible on request.
