CC 500 SY (TR)

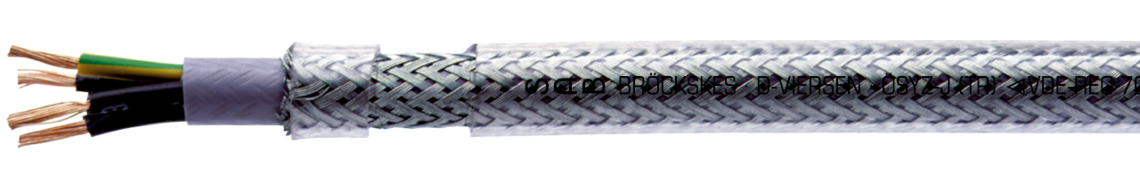

PVC control cable with numbered cores, inner sheath, steel wire armouring, and transparent outer sheath

Marking for CC 500 SY (TR) 02180405: SAB BRÖCKSKES · D-VIERSEN · ÖSYZ-J (TR) VDE-Reg.-Nr. 7000 CC 500 SY (TR) 4 x 0,5 mm² CE

Download data sheet for CC 500 SY (TR)

Questions about our products?

Application

CC 500 SY (TR) is a PVC control cable with numbered cores, inner sheath, steel wire armouring, and a transparent outer sheath. Furthermore, it has high mechanical loading capacity as well as high flexibility. It is recommended for use in packaging and wood working machine construction, press engineering, energy techniques, plastics processing and textile machine construction, electrical technology, and beverage racks.

Outstanding features

flexible
high mechanical loading capacity

Construction

Conductor	bare copper strands acc. to IEC 60228, VDE 0295, class 5
Insulation	PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
Colour code	black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
Inner sheath	PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1
Screen	galvanized steel wire braiding
Stranding	in layers
Sheath material	PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1
Sheath colour	transparent

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Inner sheath

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Screen

galvanized steel wire braiding

Stranding

in layers

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

transparent

Technical data

Nominal voltage	Uo/U 300/500 V
Testing voltage	core/core 3000 V
Min. bending radius	fixed laying: 5 x d flexible application: 10 x d
Radiation resistance	8 x 10^7 cJ/kg
Temperature range	fixed laying: -40/+70°C flexible application: +5/+70°C
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
Oil resistance	acc. to internal standard
Chem. resistance	see "Technical Data" - Chemical resistance
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 3000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

acc. to internal standard

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 5%	Copper figure	Cable weight ≈
L02180205	2 x 0,50 mm²	0,21 mm	7,7 mm	9,6 kg/km	75 kg/km	Send inquiry
L02180305	3 x 0,50 mm²	0,21 mm	8 mm	14,4 kg/km	83 kg/km	Send inquiry
L02180405	4 x 0,50 mm²	0,21 mm	8,4 mm	19,2 kg/km	95 kg/km	Send inquiry
L02180505	5 x 0,50 mm²	0,21 mm	9,1 mm	24 kg/km	111 kg/km	Send inquiry
L02180705	7 x 0,50 mm²	0,21 mm	9,7 mm	33,6 kg/km	129 kg/km	Send inquiry
L02181005	10 x 0,50 mm²	0,21 mm	11,6 mm	48 kg/km	172 kg/km	Send inquiry
L02181205	12 x 0,50 mm²	0,21 mm	12,1 mm	57,6 kg/km	193 kg/km	Send inquiry
L02181405	14 x 0,50 mm²	0,21 mm	12,7 mm	67,2 kg/km	219 kg/km	Send inquiry
L02181805	18 x 0,50 mm²	0,21 mm	14,2 mm	86,4 kg/km	279 kg/km	Send inquiry
L02182105	21 x 0,50 mm²	0,21 mm	15,4 mm	100,8 kg/km	322 kg/km	Send inquiry
L02182505	25 x 0,50 mm²	0,21 mm	16,6 mm	120 kg/km	362 kg/km	Send inquiry
L02183005	30 x 0,50 mm²	0,21 mm	17 mm	144 kg/km	402 kg/km	Send inquiry
L02183405	34 x 0,50 mm²	0,21 mm	18,3 mm	163,2 kg/km	453 kg/km	Send inquiry
L02184005	40 x 0,50 mm²	0,21 mm	19,7 mm	192 kg/km	532 kg/km	Send inquiry
L02185005	50 x 0,50 mm²	0,21 mm	21,3 mm	240 kg/km	619 kg/km	Send inquiry
L02186105	61 x 0,50 mm²	0,21 mm	22,6 mm	292,8 kg/km	724 kg/km	Send inquiry
L02188005	80 x 0,50 mm²	0,21 mm	25,6 mm	384 kg/km	925 kg/km	Send inquiry
L02180207	2 x 0,75 mm²	0,21 mm	8,3 mm	14,4 kg/km	90 kg/km	Send inquiry
L02180307	3 x 0,75 mm²	0,21 mm	8,6 mm	21,6 kg/km	101 kg/km	Send inquiry
L02180407	4 x 0,75 mm²	0,21 mm	9,3 mm	28,8 kg/km	117 kg/km	Send inquiry
L02180507	5 x 0,75 mm²	0,21 mm	9,9 mm	36 kg/km	134 kg/km	Send inquiry
L02180707	7 x 0,75 mm²	0,21 mm	10,4 mm	50,4 kg/km	158 kg/km	Send inquiry
L02180907	9 x 0,75 mm²	0,21 mm	13,1 mm	64,8 kg/km	235 kg/km	Send inquiry
L02181007	10 x 0,75 mm²	0,21 mm	13,2 mm	72 kg/km	227 kg/km	Send inquiry
L02181207	12 x 0,75 mm²	0,21 mm	13,9 mm	86,4 kg/km	271 kg/km	Send inquiry
L02181407	14 x 0,75 mm²	0,21 mm	14,4 mm	100,8 kg/km	292 kg/km	Send inquiry
L02181807	18 x 0,75 mm²	0,21 mm	15,8 mm	129,6 kg/km	356 kg/km	Send inquiry
L02182107	21 x 0,75 mm²	0,21 mm	17,3 mm	151,2 kg/km	418 kg/km	Send inquiry
L02182507	25 x 0,75 mm²	0,21 mm	18,8 mm	180 kg/km	478 kg/km	Send inquiry
L02183007	30 x 0,75 mm²	0,21 mm	19,5 mm	216 kg/km	541 kg/km	Send inquiry
L02183407	34 x 0,75 mm²	0,21 mm	20,9 mm	244,8 kg/km	608 kg/km	Send inquiry
L02184007	40 x 0,75 mm²	0,21 mm	22,4 mm	288 kg/km	706 kg/km	Send inquiry
L02185007	50 x 0,75 mm²	0,21 mm	24,2 mm	360 kg/km	824 kg/km	Send inquiry
L02186107	61 x 0,75 mm²	0,21 mm	25,9 mm	439,2 kg/km	978 kg/km	Send inquiry
L02188007	80 x 0,75 mm²	0,21 mm	29,1 mm	576 kg/km	1235 kg/km	Send inquiry
L02180210	2 x 1,00 mm²	0,21 mm	8,5 mm	19,2 kg/km	97 kg/km	Send inquiry
L02180310	3 x 1,00 mm²	0,21 mm	8,8 mm	28,8 kg/km	109 kg/km	Send inquiry
L02180410	4 x 1,00 mm²	0,21 mm	9,6 mm	38,4 kg/km	130 kg/km	Send inquiry
L02180510	5 x 1,00 mm²	0,21 mm	10,3 mm	48 kg/km	155 kg/km	Send inquiry
L02180710	7 x 1,00 mm²	0,21 mm	11,1 mm	67,2 kg/km	186 kg/km	Send inquiry
L02180810	8 x 1,00 mm²	0,21 mm	12,8 mm	76,8 kg/km	237 kg/km	Send inquiry
L02180910	9 x 1,00 mm²	0,21 mm	13,7 mm	86,4 kg/km	275 kg/km	Send inquiry
L02181010	10 x 1,00 mm²	0,21 mm	14 mm	96 kg/km	272 kg/km	Send inquiry
L02181210	12 x 1,00 mm²	0,21 mm	14,3 mm	115,2 kg/km	299 kg/km	Send inquiry
L02181410	14 x 1,00 mm²	0,21 mm	15,1 mm	134,4 kg/km	335 kg/km	Send inquiry
L02181810	18 x 1,00 mm²	0,21 mm	16,5 mm	172,8 kg/km	414 kg/km	Send inquiry
L02182010	20 x 1,00 mm²	0,21 mm	17,2 mm	192 kg/km	450 kg/km	Send inquiry
L02182510	25 x 1,00 mm²	0,21 mm	19,6 mm	240 kg/km	549 kg/km	Send inquiry
L02183010	30 x 1,00 mm²	0,21 mm	20,2 mm	288 kg/km	618 kg/km	Send inquiry
L02183410	34 x 1,00 mm²	0,21 mm	21,5 mm	326,4 kg/km	698 kg/km	Send inquiry
L02184110	41 x 1,00 mm²	0,21 mm	23,2 mm	393,6 kg/km	821 kg/km	Send inquiry
L02185010	50 x 1,00 mm²	0,21 mm	25,5 mm	480 kg/km	975 kg/km	Send inquiry
L02186110	61 x 1,00 mm²	0,21 mm	27 mm	585,6 kg/km	1138 kg/km	Send inquiry
L02188010	80 x 1,00 mm²	0,21 mm	30,4 mm	768 kg/km	1443 kg/km	Send inquiry
L02180215	2 x 1,50 mm²	0,26 mm	9,3 mm	28,8 kg/km	118 kg/km	Send inquiry
L02180315	3 x 1,50 mm²	0,26 mm	9,7 mm	43,2 kg/km	135 kg/km	Send inquiry
L02180415	4 x 1,50 mm²	0,26 mm	10,3 mm	57,6 kg/km	156 kg/km	Send inquiry
L02180515	5 x 1,50 mm²	0,26 mm	11,2 mm	72 kg/km	188 kg/km	Send inquiry
L02180615	6 x 1,50 mm²	0,26 mm	12,2 mm	86,4 kg/km	226 kg/km	Send inquiry
L02180715	7 x 1,50 mm²	0,26 mm	12,2 mm	100,8 kg/km	237 kg/km	Send inquiry
L02180815	8 x 1,50 mm²	0,26 mm	14,3 mm	115,2 kg/km	309 kg/km	Send inquiry
L02180915	9 x 1,50 mm²	0,26 mm	15 mm	129,6 kg/km	341 kg/km	Send inquiry
L02181015	10 x 1,50 mm²	0,26 mm	15,4 mm	144 kg/km	339 kg/km	Send inquiry
L02181215	12 x 1,50 mm²	0,26 mm	15,8 mm	172,8 kg/km	377 kg/km	Send inquiry
L02181415	14 x 1,50 mm²	0,26 mm	16,6 mm	201,6 kg/km	428 kg/km	Send inquiry
L02181815	18 x 1,50 mm²	0,26 mm	18,3 mm	259,2 kg/km	527 kg/km	Send inquiry
L02182115	21 x 1,50 mm²	0,26 mm	20,2 mm	302,4 kg/km	627 kg/km	Send inquiry
L02182515	25 x 1,50 mm²	0,26 mm	21,7 mm	360 kg/km	712 kg/km	Send inquiry
L02183015	30 x 1,50 mm²	0,26 mm	22,5 mm	432 kg/km	814 kg/km	Send inquiry
L02183415	34 x 1,50 mm²	0,26 mm	24,2 mm	489,6 kg/km	917 kg/km	Send inquiry
L02184215	42 x 1,50 mm²	0,26 mm	26,1 mm	604,8 kg/km	1113 kg/km	Send inquiry
L02185015	50 x 1,50 mm²	0,26 mm	28,4 mm	720 kg/km	1219 kg/km	Send inquiry
L02186115	61 x 1,50 mm²	0,26 mm	30,1 mm	878,4 kg/km	1514 kg/km	Send inquiry
L02188015	80 x 1,50 mm²	0,26 mm	34,5 mm	1152 kg/km	1984 kg/km	Send inquiry
L02180225	2 x 2,50 mm²	0,26 mm	10,7 mm	48 kg/km	163 kg/km	Send inquiry
L02180325	3 x 2,50 mm²	0,26 mm	11,2 mm	72 kg/km	190 kg/km	Send inquiry
L02180425	4 x 2,50 mm²	0,26 mm	12,1 mm	96 kg/km	227 kg/km	Send inquiry
L02180525	5 x 2,50 mm²	0,26 mm	13,2 mm	120 kg/km	273 kg/km	Send inquiry
L02180625	6 x 2,50 mm²	0,26 mm	14,5 mm	144 kg/km	336 kg/km	Send inquiry
L02180725	7 x 2,50 mm²	0,26 mm	14,6 mm	168 kg/km	354 kg/km	Send inquiry
L02181225	12 x 2,50 mm²	0,26 mm	18,9 mm	288 kg/km	566 kg/km	Send inquiry
L02181425	14 x 2,50 mm²	0,26 mm	19,8 mm	336 kg/km	636 kg/km	Send inquiry
L02181825	18 x 2,50 mm²	0,26 mm	21,8 mm	432 kg/km	792 kg/km	Send inquiry
L02182125	21 x 2,50 mm²	0,26 mm	24,2 mm	504 kg/km	935 kg/km	Send inquiry
L02182525	25 x 2,50 mm²	0,26 mm	26,2 mm	600 kg/km	1064 kg/km	Send inquiry
L02183025	30 x 2,50 mm²	0,26 mm	27,1 mm	720 kg/km	1221 kg/km	Send inquiry
L02183425	34 x 2,50 mm²	0,26 mm	29,1 mm	816 kg/km	1384 kg/km	Send inquiry
L02184025	40 x 2,50 mm²	0,26 mm	31,9 mm	960 kg/km	1665 kg/km	Send inquiry
L02185025	50 x 2,50 mm²	0,26 mm	34,6 mm	1200 kg/km	1974 kg/km	Send inquiry
L02186125	61 x 2,50 mm²	0,26 mm	36,9 mm	1464 kg/km	2335 kg/km	Send inquiry
L02180340	3 x 4,00 mm²	0,31 mm	13 mm	115,2 kg/km	268 kg/km	Send inquiry
L02180440	4 x 4,00 mm²	0,31 mm	14,3 mm	153,6 kg/km	336 kg/km	Send inquiry
L02180540	5 x 4,00 mm²	0,31 mm	15,5 mm	192 kg/km	402 kg/km	Send inquiry
L02180740	7 x 4,00 mm²	0,31 mm	16,9 mm	268,8 kg/km	504 kg/km	Send inquiry
L02180460	4 x 6,00 mm²	0,31 mm	16,4 mm	230,4 kg/km	461 kg/km	Send inquiry
L02180560	5 x 6,00 mm²	0,31 mm	17,8 mm	288 kg/km	554 kg/km	Send inquiry
L02180760	7 x 6,00 mm²	0,31 mm	19,6 mm	403,2 kg/km	707 kg/km	Send inquiry
L02180461	4 x 10,0 mm²	0,41 mm	20,3 mm	384 kg/km	730 kg/km	Send inquiry
L02180561	5 x 10,0 mm²	0,41 mm	22,4 mm	480 kg/km	900 kg/km	Send inquiry
L02180761	7 x 10,0 mm²	0,41 mm	24,4 mm	672 kg/km	1133 kg/km	Send inquiry
L02180462	4 x 16,0 mm²	0,41 mm	24,3 mm	614,4 kg/km	1070 kg/km	Send inquiry
L02180562	5 x 16,0 mm²	0,41 mm	27 mm	768 kg/km	1332 kg/km	Send inquiry
L02180762	7 x 16,0 mm²	0,41 mm	29,6 mm	1075,2 kg/km	1702 kg/km	Send inquiry
L02180463	4 x 25,0 mm²	0,41 mm	28,9 mm	960 kg/km	1632 kg/km	Send inquiry
L02180563	5 x 25,0 mm²	0,41 mm	32,4 mm	1200 kg/km	2062 kg/km	Send inquiry
L02180464	4 x 35,0 mm²	0,41 mm	33,3 mm	1344 kg/km	2241 kg/km	Send inquiry
L02180564	5 x 35,0 mm²	0,41 mm	36,8 mm	1680 kg/km	2766 kg/km	Send inquiry
