CC 500 SY

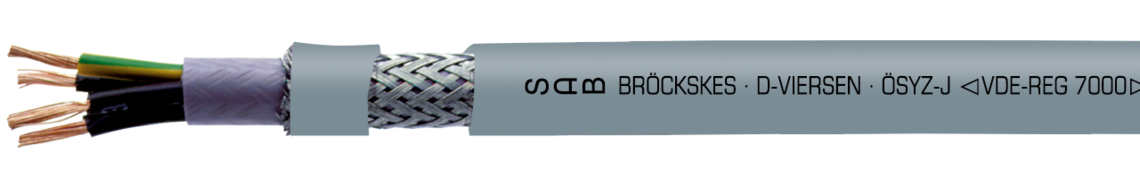

PVC control cable with numbered cores, inner sheath, and steel wire armouring

Marking for CC 500 SY (TR) 02180405: SAB BRÖCKSKES · D-VIERSEN · ÖSYZ-J (TR) VDE-Reg.-Nr. 7000 CC 500 SY 4 x 0,5 mm² CE

Application

CC 500 SY is a PVC control cable with numbered cores, an inner sheath, and steel wire armouring. Furthermore, it has high mechanical loading capacity as well as high flexibility. It is recommended for use in packaging and wood working machine construction, press engineering, energy techniques, plastics processing and textile machine construction, electrical technology, and beverage racks.

Outstanding features

flexible
high mechanical loading capacity

Construction

Conductor	bare copper strands acc. to IEC 60228, VDE 0295, class 5
Insulation	PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
Colour code	black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
Inner sheath	PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1
Screen	galvanized steel wire braiding
Stranding	in layers
Sheath material	PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1
Sheath colour	grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Inner sheath

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Screen

galvanized steel wire braiding

Stranding

in layers

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage	Uo/U 300/500 V
Testing voltage	core/core 3000 V
Min. bending radius	fixed laying: 5 x d flexible application: 10 x d
Radiation resistance	8 x 10^7 cJ/kg
Temperature range	fixed laying: -40/+70°C flexible application: +5/+70°C
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
Oil resistance	acc. to internal standard
Chem. resistance	see "Technical Data" - Chemical resistance
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 3000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

acc. to internal standard

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 5%	Copper figure	Cable weight ≈
L02200205	2 x 0,50 mm²	0,21 mm	7,7 mm	9,6 kg/km	75 kg/km	Send inquiry
L02200305	3 x 0,50 mm²	0,21 mm	8 mm	14,4 kg/km	83 kg/km	Send inquiry
L02200405	4 x 0,50 mm²	0,21 mm	8,4 mm	19,2 kg/km	95 kg/km	Send inquiry
L02200505	5 x 0,50 mm²	0,21 mm	9,1 mm	24 kg/km	111 kg/km	Send inquiry
L02200705	7 x 0,50 mm²	0,21 mm	9,7 mm	33,6 kg/km	129 kg/km	Send inquiry
L02201005	10 x 0,50 mm²	0,21 mm	11,6 mm	48 kg/km	172 kg/km	Send inquiry
L02201205	12 x 0,50 mm²	0,21 mm	12,1 mm	57,6 kg/km	193 kg/km	Send inquiry
L02201405	14 x 0,50 mm²	0,21 mm	12,7 mm	67,2 kg/km	219 kg/km	Send inquiry
L02201805	18 x 0,50 mm²	0,21 mm	14,2 mm	86,4 kg/km	279 kg/km	Send inquiry
L02202105	21 x 0,50 mm²	0,21 mm	15,4 mm	100,8 kg/km	322 kg/km	Send inquiry
L02202505	25 x 0,50 mm²	0,21 mm	16,6 mm	120 kg/km	362 kg/km	Send inquiry
L02203005	30 x 0,50 mm²	0,21 mm	17 mm	144 kg/km	402 kg/km	Send inquiry
L02203405	34 x 0,50 mm²	0,21 mm	18,3 mm	163,2 kg/km	453 kg/km	Send inquiry
L02204005	40 x 0,50 mm²	0,21 mm	19,7 mm	192 kg/km	532 kg/km	Send inquiry
L02205005	50 x 0,50 mm²	0,21 mm	21,3 mm	240 kg/km	619 kg/km	Send inquiry
L02206105	61 x 0,50 mm²	0,21 mm	22,6 mm	292,8 kg/km	724 kg/km	Send inquiry
L02208005	80 x 0,50 mm²	0,21 mm	25,6 mm	384 kg/km	925 kg/km	Send inquiry
L02200207	2 x 0,75 mm²	0,21 mm	8,3 mm	14,4 kg/km	90 kg/km	Send inquiry
L02200307	3 x 0,75 mm²	0,21 mm	8,6 mm	21,6 kg/km	101 kg/km	Send inquiry
L02200407	4 x 0,75 mm²	0,21 mm	9,3 mm	28,8 kg/km	117 kg/km	Send inquiry
L02200507	5 x 0,75 mm²	0,21 mm	9,9 mm	36 kg/km	134 kg/km	Send inquiry
L02200707	7 x 0,75 mm²	0,21 mm	10,4 mm	50,4 kg/km	158 kg/km	Send inquiry
L02200907	9 x 0,75 mm²	0,21 mm	13,1 mm	64,8 kg/km	235 kg/km	Send inquiry
L02201007	10 x 0,75 mm²	0,21 mm	13,2 mm	72 kg/km	227 kg/km	Send inquiry
L02201207	12 x 0,75 mm²	0,21 mm	13,9 mm	86,4 kg/km	271 kg/km	Send inquiry
L02201407	14 x 0,75 mm²	0,21 mm	14,4 mm	100,8 kg/km	292 kg/km	Send inquiry
L02201807	18 x 0,75 mm²	0,21 mm	15,8 mm	129,6 kg/km	356 kg/km	Send inquiry
L02202107	21 x 0,75 mm²	0,21 mm	17,3 mm	151,2 kg/km	418 kg/km	Send inquiry
L02202507	25 x 0,75 mm²	0,21 mm	18,8 mm	180 kg/km	478 kg/km	Send inquiry
L02203007	30 x 0,75 mm²	0,21 mm	19,5 mm	216 kg/km	541 kg/km	Send inquiry
L02203407	34 x 0,75 mm²	0,21 mm	20,9 mm	244,8 kg/km	608 kg/km	Send inquiry
L02204007	40 x 0,75 mm²	0,21 mm	22,4 mm	288 kg/km	706 kg/km	Send inquiry
L02205007	50 x 0,75 mm²	0,21 mm	24,2 mm	360 kg/km	824 kg/km	Send inquiry
L02206107	61 x 0,75 mm²	0,21 mm	25,9 mm	439,2 kg/km	978 kg/km	Send inquiry
L02208007	80 x 0,75 mm²	0,21 mm	29,1 mm	576 kg/km	1235 kg/km	Send inquiry
L02200210	2 x 1,00 mm²	0,21 mm	8,5 mm	19,2 kg/km	97 kg/km	Send inquiry
L02200310	3 x 1,00 mm²	0,21 mm	8,8 mm	28,8 kg/km	109 kg/km	Send inquiry
L02200410	4 x 1,00 mm²	0,21 mm	9,6 mm	38,4 kg/km	130 kg/km	Send inquiry
L02200510	5 x 1,00 mm²	0,21 mm	10,3 mm	48 kg/km	155 kg/km	Send inquiry
L02200710	7 x 1,00 mm²	0,21 mm	11,1 mm	67,2 kg/km	186 kg/km	Send inquiry
L02200810	8 x 1,00 mm²	0,21 mm	12,8 mm	76,8 kg/km	237 kg/km	Send inquiry
L02200910	9 x 1,00 mm²	0,21 mm	13,7 mm	86,4 kg/km	275 kg/km	Send inquiry
L02201010	10 x 1,00 mm²	0,21 mm	14 mm	96 kg/km	272 kg/km	Send inquiry
L02201210	12 x 1,00 mm²	0,21 mm	14,3 mm	115,2 kg/km	299 kg/km	Send inquiry
L02201410	14 x 1,00 mm²	0,21 mm	15,1 mm	134,4 kg/km	335 kg/km	Send inquiry
L02201810	18 x 1,00 mm²	0,21 mm	16,5 mm	172,8 kg/km	414 kg/km	Send inquiry
L02202010	20 x 1,00 mm²	0,21 mm	17,2 mm	192 kg/km	450 kg/km	Send inquiry
L02202510	25 x 1,00 mm²	0,21 mm	19,6 mm	240 kg/km	549 kg/km	Send inquiry
L02203010	30 x 1,00 mm²	0,21 mm	20,2 mm	288 kg/km	618 kg/km	Send inquiry
L02203410	34 x 1,00 mm²	0,21 mm	21,5 mm	326,4 kg/km	698 kg/km	Send inquiry
L02204110	41 x 1,00 mm²	0,21 mm	23,2 mm	393,6 kg/km	821 kg/km	Send inquiry
L02205010	50 x 1,00 mm²	0,21 mm	25,5 mm	480 kg/km	975 kg/km	Send inquiry
L02206110	61 x 1,00 mm²	0,21 mm	27 mm	585,6 kg/km	1138 kg/km	Send inquiry
L02208010	80 x 1,00 mm²	0,21 mm	30,4 mm	768 kg/km	1443 kg/km	Send inquiry
L02200215	2 x 1,50 mm²	0,26 mm	9,3 mm	28,8 kg/km	118 kg/km	Send inquiry
L02200315	3 x 1,50 mm²	0,26 mm	9,7 mm	43,2 kg/km	135 kg/km	Send inquiry
L02200415	4 x 1,50 mm²	0,26 mm	10,3 mm	57,6 kg/km	156 kg/km	Send inquiry
L02200515	5 x 1,50 mm²	0,26 mm	11,2 mm	72 kg/km	188 kg/km	Send inquiry
L02200615	6 x 1,50 mm²	0,26 mm	12,2 mm	86,4 kg/km	226 kg/km	Send inquiry
L02200715	7 x 1,50 mm²	0,26 mm	12,2 mm	100,8 kg/km	237 kg/km	Send inquiry
L02200815	8 x 1,50 mm²	0,26 mm	14,3 mm	115,2 kg/km	309 kg/km	Send inquiry
L02200915	9 x 1,50 mm²	0,26 mm	15 mm	129,6 kg/km	341 kg/km	Send inquiry
L02201015	10 x 1,50 mm²	0,26 mm	15,4 mm	144 kg/km	339 kg/km	Send inquiry
L02201215	12 x 1,50 mm²	0,26 mm	15,8 mm	172,8 kg/km	377 kg/km	Send inquiry
L02201415	14 x 1,50 mm²	0,26 mm	16,6 mm	201,6 kg/km	428 kg/km	Send inquiry
L02201815	18 x 1,50 mm²	0,26 mm	18,3 mm	259,2 kg/km	527 kg/km	Send inquiry
L02202115	21 x 1,50 mm²	0,26 mm	20,2 mm	302,4 kg/km	627 kg/km	Send inquiry
L02202515	25 x 1,50 mm²	0,26 mm	21,7 mm	360 kg/km	712 kg/km	Send inquiry
L02203015	30 x 1,50 mm²	0,26 mm	22,5 mm	432 kg/km	814 kg/km	Send inquiry
L02203415	34 x 1,50 mm²	0,26 mm	24,2 mm	489,6 kg/km	917 kg/km	Send inquiry
L02204215	42 x 1,50 mm²	0,26 mm	26,1 mm	604,8 kg/km	1113 kg/km	Send inquiry
L02205015	50 x 1,50 mm²	0,26 mm	28,4 mm	720 kg/km	1219 kg/km	Send inquiry
L02206115	61 x 1,50 mm²	0,26 mm	30,1 mm	878,4 kg/km	1514 kg/km	Send inquiry
L02208015	80 x 1,50 mm²	0,26 mm	34,5 mm	1152 kg/km	1984 kg/km	Send inquiry
L02200225	2 x 2,50 mm²	0,26 mm	10,7 mm	48 kg/km	163 kg/km	Send inquiry
L02200325	3 x 2,50 mm²	0,26 mm	11,2 mm	72 kg/km	190 kg/km	Send inquiry
L02200425	4 x 2,50 mm²	0,26 mm	12,1 mm	96 kg/km	227 kg/km	Send inquiry
L02200525	5 x 2,50 mm²	0,26 mm	13,2 mm	120 kg/km	273 kg/km	Send inquiry
L02200625	6 x 2,50 mm²	0,26 mm	14,5 mm	144 kg/km	336 kg/km	Send inquiry
L02200725	7 x 2,50 mm²	0,26 mm	14,6 mm	168 kg/km	354 kg/km	Send inquiry
L02201225	12 x 2,50 mm²	0,26 mm	18,9 mm	288 kg/km	566 kg/km	Send inquiry
L02201425	14 x 2,50 mm²	0,26 mm	19,8 mm	336 kg/km	636 kg/km	Send inquiry
L02201825	18 x 2,50 mm²	0,26 mm	21,8 mm	432 kg/km	792 kg/km	Send inquiry
L02202125	21 x 2,50 mm²	0,26 mm	24,2 mm	504 kg/km	935 kg/km	Send inquiry
L02202525	25 x 2,50 mm²	0,26 mm	26,2 mm	600 kg/km	1064 kg/km	Send inquiry
L02203025	30 x 2,50 mm²	0,26 mm	27,1 mm	720 kg/km	1221 kg/km	Send inquiry
L02203425	34 x 2,50 mm²	0,26 mm	29,1 mm	816 kg/km	1384 kg/km	Send inquiry
L02204025	40 x 2,50 mm²	0,26 mm	31,9 mm	960 kg/km	1665 kg/km	Send inquiry
L02205025	50 x 2,50 mm²	0,26 mm	34,6 mm	1200 kg/km	1974 kg/km	Send inquiry
L02206125	61 x 2,50 mm²	0,26 mm	36,9 mm	1464 kg/km	2335 kg/km	Send inquiry
L02200340	3 x 4,00 mm²	0,31 mm	13 mm	115,2 kg/km	268 kg/km	Send inquiry
L02200440	4 x 4,00 mm²	0,31 mm	14,3 mm	153,6 kg/km	336 kg/km	Send inquiry
L02200540	5 x 4,00 mm²	0,31 mm	15,5 mm	192 kg/km	402 kg/km	Send inquiry
L02200740	7 x 4,00 mm²	0,31 mm	16,9 mm	268,8 kg/km	504 kg/km	Send inquiry
L02200460	4 x 6,00 mm²	0,31 mm	16,4 mm	230,4 kg/km	461 kg/km	Send inquiry
L02200560	5 x 6,00 mm²	0,31 mm	17,8 mm	288 kg/km	554 kg/km	Send inquiry
L02200760	7 x 6,00 mm²	0,31 mm	19,6 mm	403,2 kg/km	707 kg/km	Send inquiry
L02200461	4 x 10,0 mm²	0,41 mm	20,3 mm	384 kg/km	730 kg/km	Send inquiry
L02200561	5 x 10,0 mm²	0,41 mm	22,4 mm	480 kg/km	900 kg/km	Send inquiry
L02200761	7 x 10,0 mm²	0,41 mm	24,4 mm	672 kg/km	1133 kg/km	Send inquiry
L02200462	4 x 16,0 mm²	0,41 mm	24,3 mm	614,4 kg/km	1070 kg/km	Send inquiry
L02200562	5 x 16,0 mm²	0,41 mm	27 mm	768 kg/km	1332 kg/km	Send inquiry
L02200762	7 x 16,0 mm²	0,41 mm	29,6 mm	1075,2 kg/km	1702 kg/km	Send inquiry
L02200463	4 x 25,0 mm²	0,41 mm	28,9 mm	960 kg/km	1632 kg/km	Send inquiry
L02200563	5 x 25,0 mm²	0,41 mm	32,4 mm	1200 kg/km	2062 kg/km	Send inquiry
L02200464	4 x 35,0 mm²	0,41 mm	33,3 mm	1344 kg/km	2241 kg/km	Send inquiry
L02200564	5 x 35,0 mm²	0,41 mm	36,8 mm	1680 kg/km	2766 kg/km	Send inquiry
